Product Overview

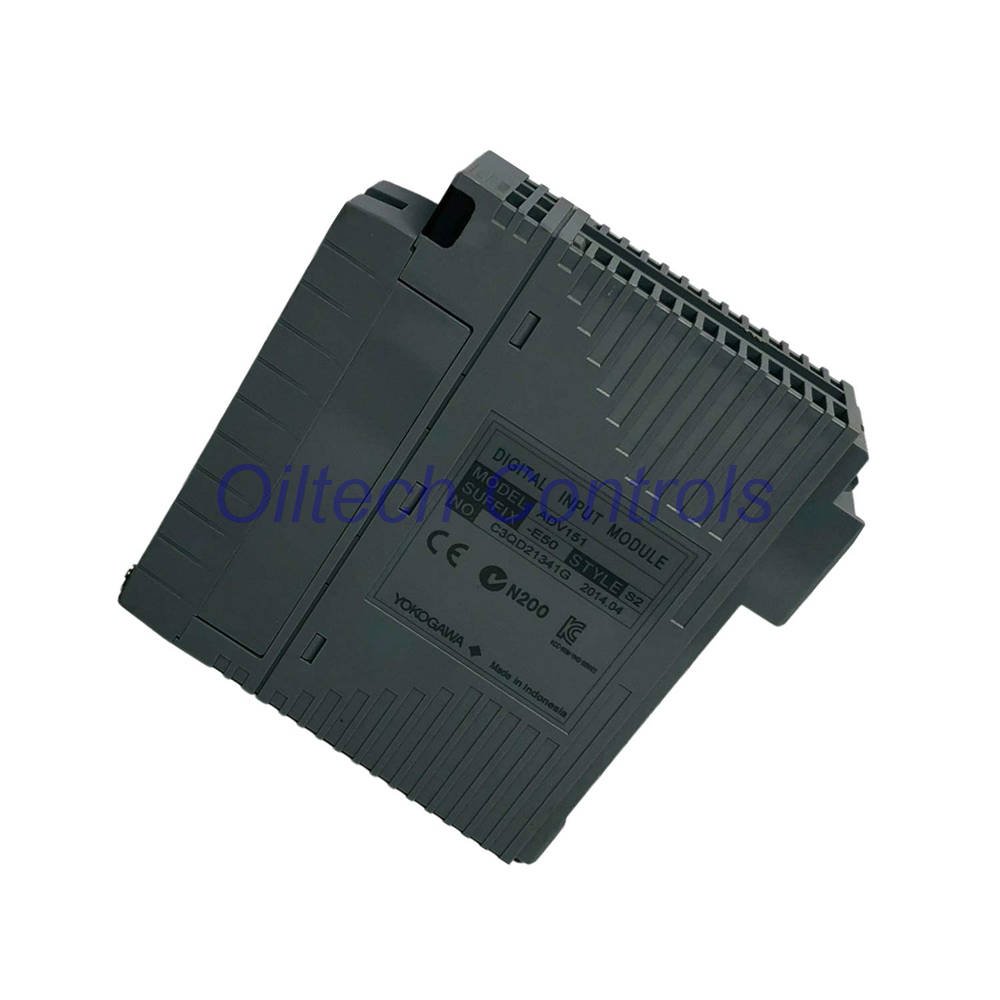

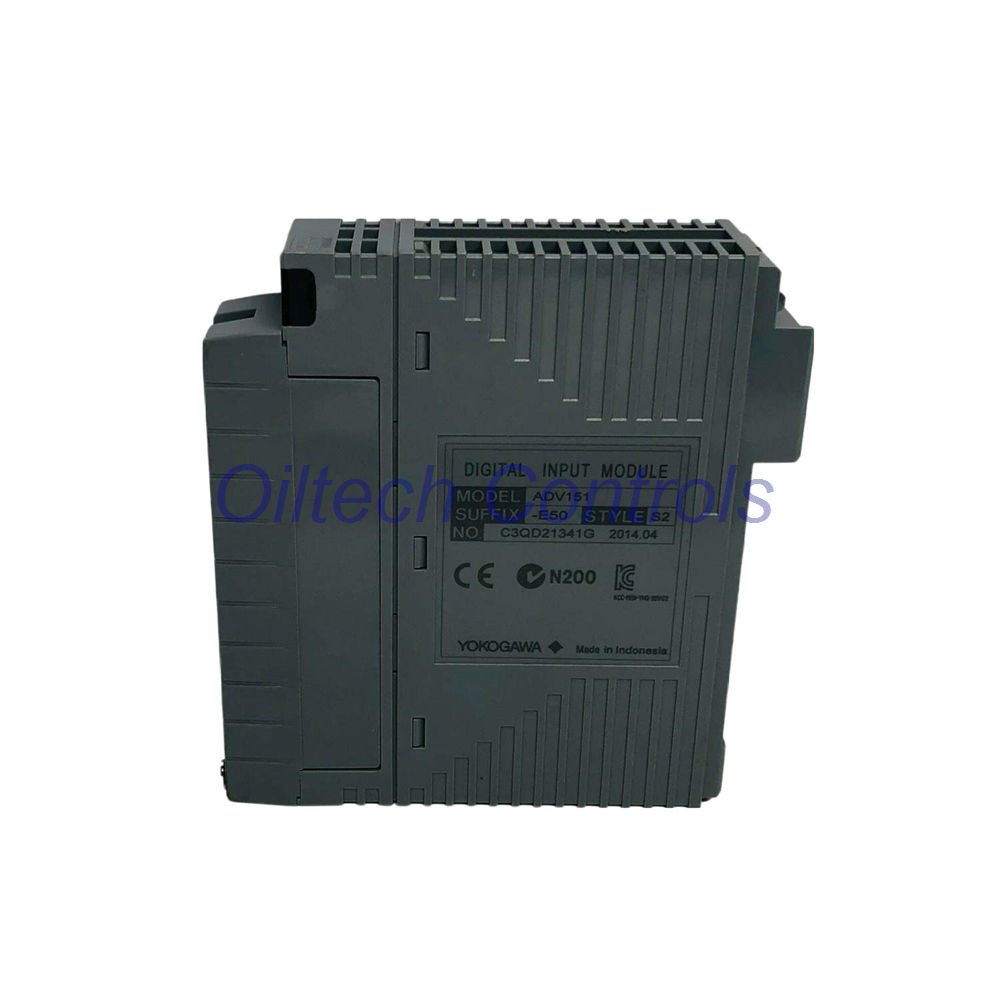

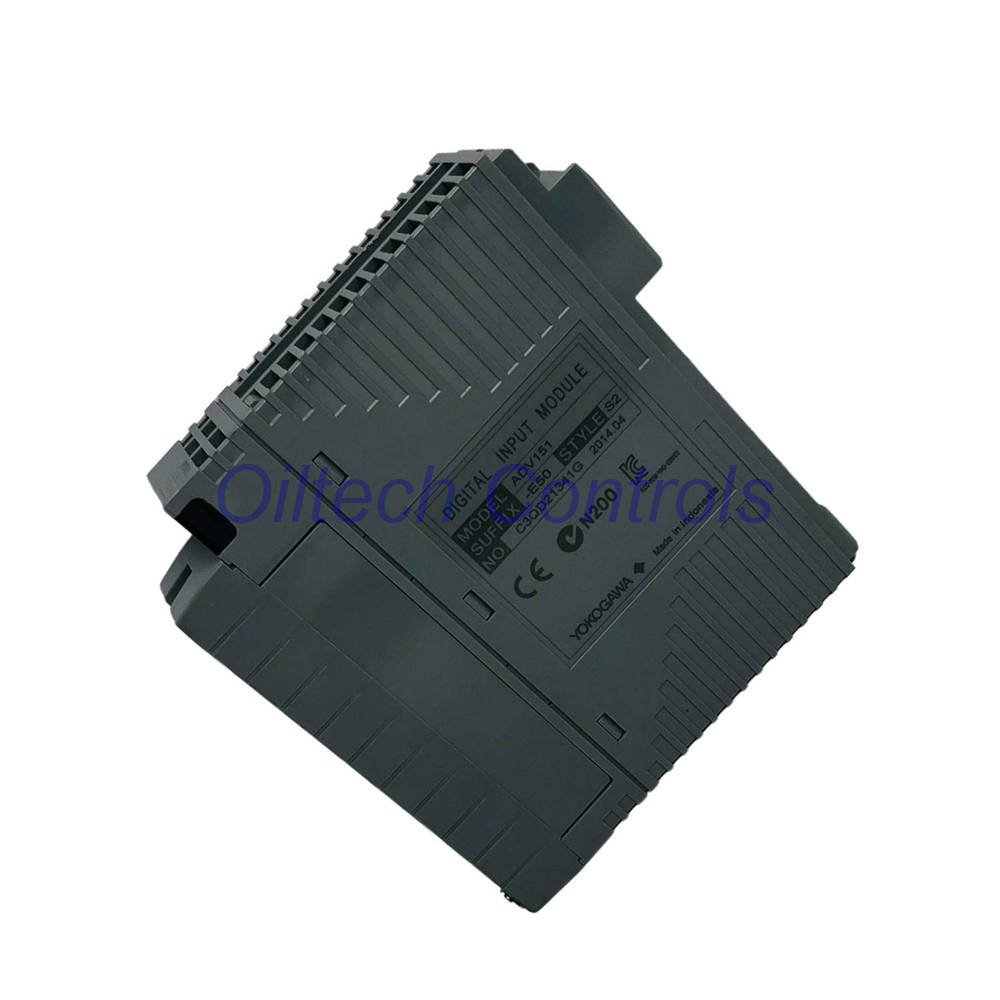

The ADV151-E50 Yokogawa Digital Input Module delivers high performance for industrial automation systems. This ADV151 unit handles 32 input channels with 24 V DC rated voltage. The ADV151-E50 Yokogawa Digital Input Module captures precise status data and supports Sequence of Events recording. Engineers trust this ADV151-E50 for reliable PLC signal processing in harsh factory environments.
Technical Specifications
| Brand | Yokogawa |
| Model | ADV151-E50 |
| Module Type | Digital Input Module |
| Input Channels | 32 channels |
| Rated Voltage | 24 V DC sink source |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current | 4.1 mA per channel |
| Max Input Voltage | 30.0 V DC |
| Response Time | 8 ms or less |
| Withstanding Voltage | 2 kV AC signal to system |
| Max Current Draw | 500 mA at 5 V DC |
| Weight | 0.30 kg |
Core Functions And Features
- Status input detects exact on and off states quickly.
- Pushbutton input counts control edges up to 25 Hz.
- SOE input captures critical sequence events.
- Basic type unit includes SOE capture capability.
- Unit operates without status display or explosion protection.
Installation And Maintenance
- Connect external wires using pressure clamp terminals.
- Use dedicated AKB331 cables for fast setup.
- MIL connector cables provide secure signal links.
- KS Cable Interface Adapter supports 32 channels.
- Compact size reduces control cabinet space needs.
Compatibility And Diagnostics
- Works seamlessly with standard Yokogawa control racks.
- Built-in diagnostic features monitor channel status.
- Fast response times prevent critical signal delays.
- High resistance blocks electrical noise effectively.
Certifications And Environmental Tolerance
- Withstands high voltage spikes safely.
- Designed for standard industrial temperature ranges.
- Robust build quality ensures long operational life.
Packaging, Shipping, And Warranty
- Factory packaging protects unit during transit.
- Fast global delivery via FedEx, UPS, and DHL.
- Every unit includes a solid 12-month warranty.
Typical Application Scenarios
- Oil and gas refinery control systems.
- Power plant turbine automation panels.
- Chemical processing safety interlocks.
- Factory assembly line monitoring.
Frequently Asked Questions
- What is the channel count? The ADV151-E50 features 32 input channels.
- Does it support SOE? Yes, it includes SOE capture functions.
- What is the input voltage? It accepts 24 V DC signals.
Why Buy From Oiltech Controls?
- 15+ years industrial automation spare parts experience
- Global shipment support
- Tested industrial surplus / refurbished options
- 12-month warranty
- Technical verification before shipment
Need help? Contact our team today. Send your inquiries to info@oiltechcontrols.com or call us via +86 158 8020 0923 on WhatsApp. Download the complete technical manual and user guide for the ADV151-E50 to plan your installation.
