Troubleshooting ABB CI810B Fault LED: Can You Run S800 I/O with a Warning?
The Risk of Operating with a Persistent Fault

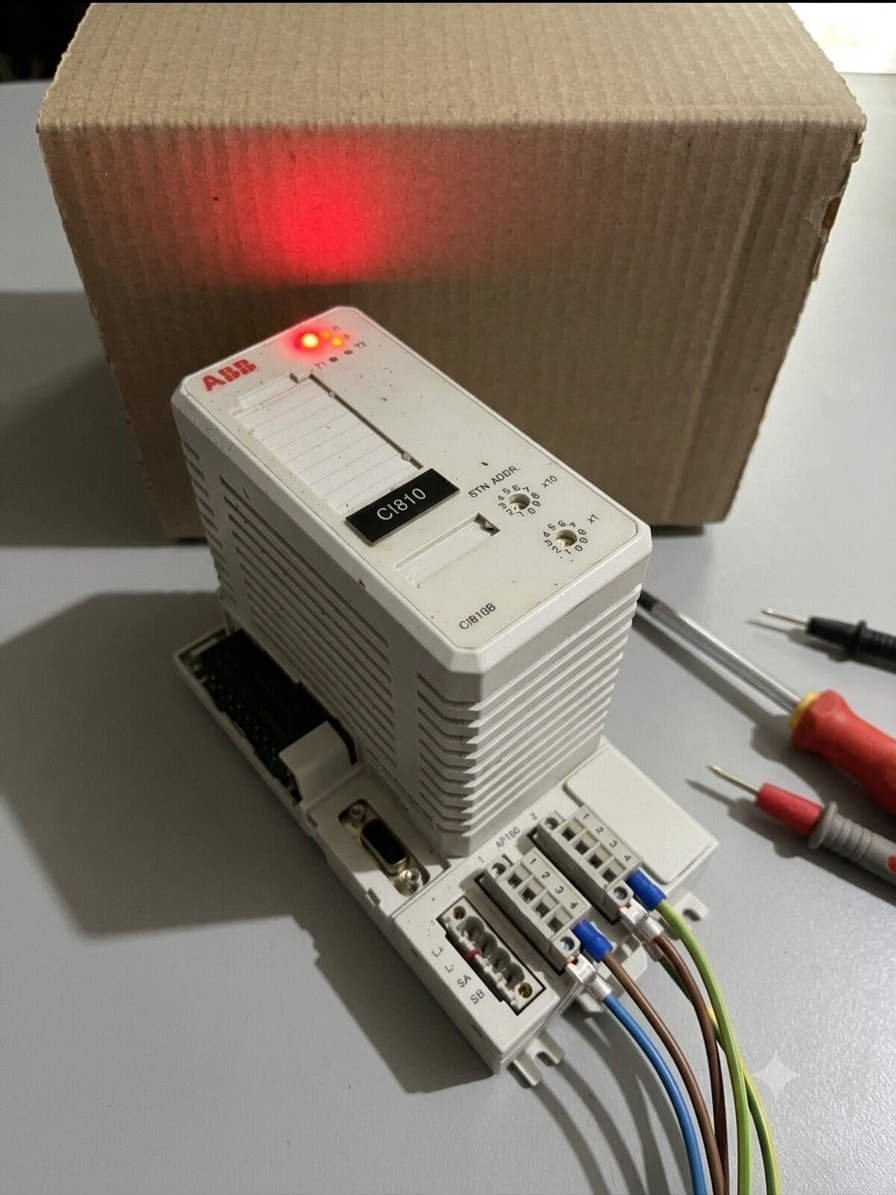

In many ABB Advant Controller and 800xA systems, the CI810B module acts as the vital communication gateway for S800 I/O. When the “Fault” LED on a CI810B module stays solid red while the I/O remains operational, maintenance teams often hesitate. At Oiltech Controls Limited, we frequently encounter this scenario. While the system may appear to function, running with a persistent fault is a high-risk practice. We believe that ignoring an active fault alarm compromises your plant’s long-term reliability and redundancy.
The Role of the CI810B in System Integrity
The CI810B does more than just forward signals. It actively manages data integrity, communication diagnostics, and bus validation. In critical industries like oil and gas, power generation, and pharmaceutical manufacturing, an active “Fault” LED indicates that your system’s internal diagnostic layer has detected a compromise. Even if your process data currently appears correct, your module’s self-checking mechanisms are signaling a potential loss of safety. Consequently, you should investigate this state immediately to prevent a sudden, unmanaged I/O collapse.
Common Causes of Persistent Fault States
Before you rush to replace the hardware, perform a systematic diagnostic check. Our field experience shows that several external factors often trigger these alerts:
- ✅ Residual Diagnostic Errors: Transient power dips or hot-swapping events can leave “Fault” latches set in the memory even after the communication recovers.
- ⚙️ Redundancy Mismatches: In dual-controller configurations, a synchronization error between primary and backup modules often triggers a fault status.
- 🔧 Power Supply Instability: If your 24VDC supply exhibits excessive ripple or voltage drops, the sensitive CI810B electronics will often flag a hardware error.
- 🔍 Backplane Seating Issues: In high-vibration areas, micro-movements can cause intermittent contact, creating diagnostic alerts without dropping the I/O connection.
Expert Recommendations on Diagnostic Procedures
At Oiltech Controls Limited, we prioritize data-driven decision-making. We advise against immediate hardware replacement until you have reviewed the Control Builder diagnostic logs. If the system reports “Hardware Failure” or “Self-Test Failed,” replace the module immediately. However, if the fault stems from a temporary communication glitch, clearing the event logs and power-cycling the system often restores the module to a healthy state. Always treat the CI810B as a precision instrument that requires a clean, stable, and vibration-free environment to perform optimally.
Frequently Asked Questions (FAQ)
Q: Can I continue to use a CI810B if the process seems stable?
A: You can, but you are operating without your safety net. If a secondary fault occurs, you may lose total communication, and the module might not be able to switch over to a redundant partner.
Q: Why does the Fault light stay on after I clear the software alarm?
A: If the hardware is healthy, it might be a latching fault in the module’s memory. Try a cold restart of the rack, but if the light persists, the module’s internal hardware is likely failing.
Q: Are newer CI810B revisions backward compatible with old S800 I/O systems?
A: Most versions are compatible, but you must check the ABB compatibility matrix. Using the wrong firmware version can cause subtle communication timing issues that are very difficult to troubleshoot.
