Deep Dive into Bently Nevada 3500/33: Maximizing Machinery Protection with Enhanced Relays

Defining the Core Value of Enhanced Relay Technology

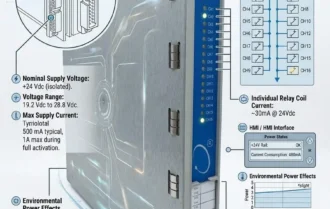

The Bently Nevada 3500/33 Enhanced Relay Module represents a significant leap from traditional switching components. It earns the “enhanced” designation by merging traditional relay reliability with advanced configurable logic and seamless integration into the 3500 Machinery Protection System. In critical environments like power generation and petrochemical plants, this module serves as a vital safeguard. It translates complex sensor data into immediate physical actions, such as trips or interlocks, ensuring machinery remains within safe operating limits.

Advanced Voting Logic for Reduced Nuisance Trips

Unlike basic output cards, the 3500/33 supports sophisticated voting configurations, including 1oo2 and 2oo3 logic. This flexibility allows engineers to map specific input channels to precise relay responses. Consequently, plants can significantly reduce “nuisance trips”—false shutdowns that can cost millions in lost production. By implementing intelligent voting, you maintain the highest safety integrity while simultaneously increasing overall plant availability and uptime.

[Image of 2oo3 voting logic diagram]

Critical Response Times for High-Speed Turbomachinery

In the world of high-speed rotating equipment, every millisecond counts toward preventing catastrophic failure. The 3500/33 module boasts an optimized response time, typically under 10 ms. For steam turbines or high-pressure compressors, this rapid actuation can prevent severe bearing damage during a surge event. Therefore, upgrading to enhanced modules is not just about features; it is about extending the lifecycle of your most expensive industrial assets.

Superior Isolation and Electrical Noise Immunity

Industrial automation environments often suffer from heavy electrical noise generated by Variable Frequency Drives (VFDs) and large motors. The 3500/33 provides robust electrical isolation between sensitive control logic and high-power field circuits. This design prevents relay chatter and accidental triggering caused by electromagnetic interference. As a result, the protection system remains deterministic and reliable, even in the harshest electrical conditions.

Best Practices for Installation and Maintenance

Maintaining the integrity of your relay outputs requires attention to physical details. In high-vibration areas near turbines, terminal connections can loosen over time, leading to intermittent faults. We recommend utilizing spring-clamp terminals or applying thread-locking compounds during installation. Furthermore, always verify relay mapping via software simulation before energizing field outputs. Physical verification ensures that your wiring perfectly matches your logic configuration.

Insights from Oiltech Controls Limited

At Oiltech Controls Limited, we have observed a clear industry shift toward software-configurable protection. The “enhanced” nature of the 3500/33 reflects this transition from passive hardware to active, intelligent interfaces. We believe that for any facility running critical turbomachinery, the investment in enhanced relay modules pays for itself by preventing just one unnecessary shutdown. Reliable protection is the foundation of profitable operations.

For expert technical guidance and authentic Bently Nevada components, visit Oiltech Controls Limited to explore our comprehensive machinery protection solutions.

Engineering Maintenance Checklist

• ✓ Logic Simulation: Always test trip conditions in the 3500 rack software prior to commissioning.
• ✓ Inductive Load Protection: Install external flyback diodes or RC snubbers to prevent contact pitting.
• ✓ Firmware Check: Ensure your 3500 rack firmware is compatible with enhanced relay features.
• ✓ Torque Verification: Schedule regular checks on terminal screws in high-vibration zones.

Frequently Asked Questions (FAQ)

Q1: Why is my relay showing a “Configuration Mismatch” error after replacement?
This is a common field issue during migration. The 3500/33 requires specific rack firmware versions to recognize “enhanced” features. If you are replacing an older 3500/32 module, you must update the rack configuration file to reflect the new hardware capabilities, or the system will reject the module.

Q2: Can I use the 3500/33 to switch high-power AC solenoids directly?
While the contacts are industrially rated, switching inductive AC loads creates significant arcing. Based on our experience, you should always use an RC snubber circuit. This prevents premature contact failure and ensures the module lasts for its intended service life of 10+ years.

Q3: How does voting logic actually improve my bottom line?
Standard relays often operate on a “1oo1” basis, where one sensor failure causes a total shutdown. With the 3500/33, you can set a “2oo2” or “2oo3” requirement. This means a single faulty sensor won’t trip the plant, preventing the massive costs associated with unplanned restarts.

Application Scenario: Refinery Compressor Protection

In a large-scale refinery, a centrifugal compressor was experiencing frequent trips due to vibration sensor noise. By replacing the legacy output cards with the 3500/33 and implementing 2oo2 voting logic across the bearings, the facility eliminated three nuisance trips in the first year. The increased reliability saved an estimated $450,000 in operational costs while maintaining full safety compliance.
