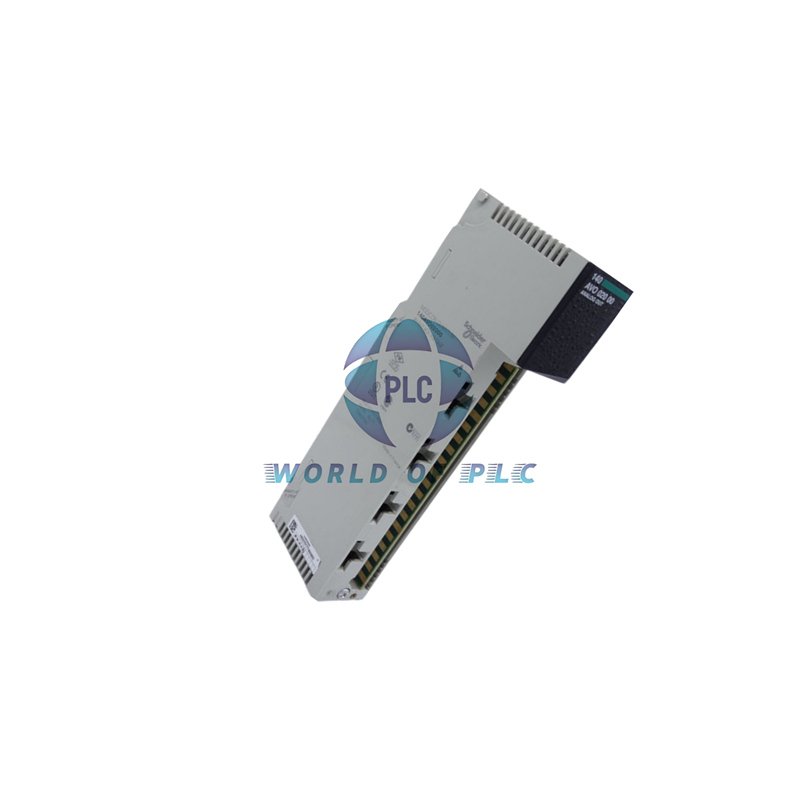

140AVO02000 Schneider Electric Quantum | 4-Channel Analog Output

Versatile Analog Output Module: Schneider Electric 140AVO02000

• Four independent output channels
• Multiple voltage range support
• Ultra-fast 3ms response time
• Long distance cabling up to 400 meters
• Industrial-grade reliability

Technical Performance

Brand: Schneider Electric

Model: 140AVO02000 (Full Suffix)

Output Channels: 4 isolated outputs

Voltage Ranges: ±10V, ±5V, 0-10V, 0-5V

Current Range: -10 to +10mA

Resolution: 12-bit precision

Accuracy: ±0.15% at 25°C

Update Speed: 3 milliseconds

Settling Time: 700 microseconds

Cable Distance: 400 meters maximum

Isolation: 500V AC between channels

Bus Current: 700mA required

Power Usage: 4.5 Watts maximum

Operating Temp: 0°C to 60°C

Simple Setup

Uses 4 output words in PLC system. Easy installation in Quantum racks. Standard wiring connections.

Platform Compatibility

Designed for Modicon Quantum systems. Compatible with all Quantum processors and accessories.

Certification & Standards

UL 508, CSA C22.2 No 142 certified. FM Class 1 Division 2 approved for industrial use.

Package Includes

One 140AVO02000 analog output module. Complete documentation. Factory sealed package.

Service & Delivery

12-month product warranty included. Express shipping via FedEx, UPS, DHL. Fast order processing.

Technical Questions

What output voltage ranges are available?

±10V, ±5V, 0-10V, and 0-5V with 12-bit resolution.

What is the maximum cable length supported?

Up to 400 meters between devices for reliable operation.

What is the output current capability?

-10mA to +10mA current output range available.

How many output words are required?

4 output words needed for module configuration.

What is the settling time for output changes?

700 microseconds to reach within 0.1% of final value.
