Expert Review
The 140DAO84210 remains a staple in heavy industry due to its massive current capacity per group. Engineering teams prefer this module for its rapid 0.5 ms response time and internal 5A fuse protection. It handles fluctuating AC voltages effortlessly, making it ideal for aging power grids or high-noise factory floors.
Core Technical Specifications
Identification and Power
- Brand: Schneider Electric
- Model: 140DAO84210
- Series: Modicon Quantum
- Output Type: AC Discrete Output
- Discrete Output Number: 16 Points
- Output Voltage: 83 to 253 V AC
- Supply Frequency: 47 to 63 Hz
Performance Data
- Response Time: Less than 0.5 ms
- Voltage Drop: Maximum 1.5 V
- Addressing Requirement: 1 Output Word
- Off-state Leakage: 2.5 mA at 230V
- Absolute Maximum: 400 Vrms for 1 cycle
Load and Surge Capacity
- Current per Output (115V): 4 A RMS
- Current per Output (230V): 3 A RMS
- Total Module Current: 16 A RMS
- Max Group Current: 4 A RMS
- Peak Surge: 30 A for 1 cycle
Environmental and Protection
- Operating Temp: 0 to 60 °C
- Storage Temp: -40 to 85 °C
- Humidity: 95% non-condensing
- Interference Immunity: 8 kV Air Discharge
- Max Altitude: 5000 meters
- Built-in Safety: Internal 5A Fuses and RC Filters
Application and Compatibility
This module fits standard Modicon Quantum backplanes. It excels in controlling motor starters, solenoids, and heavy-duty AC relays. It is widely used in water treatment, power generation, and automotive assembly lines.
Installation and Maintenance
- Mounting: Standard Quantum Slot
- Wiring: 4 Groups of 4 Channels
- Fault Detection: Red LED for blown fuses or power loss
- Status Monitoring: 16 Green LEDs for real-time tracking
- Maintenance: Internal fuse protection prevents total module failure
Shipping and Logistics
- Shipping Time: 12 to 48 Hours
- Logistics Partners: FedEx, UPS, DHL
- Warranty: 12 Months standard coverage

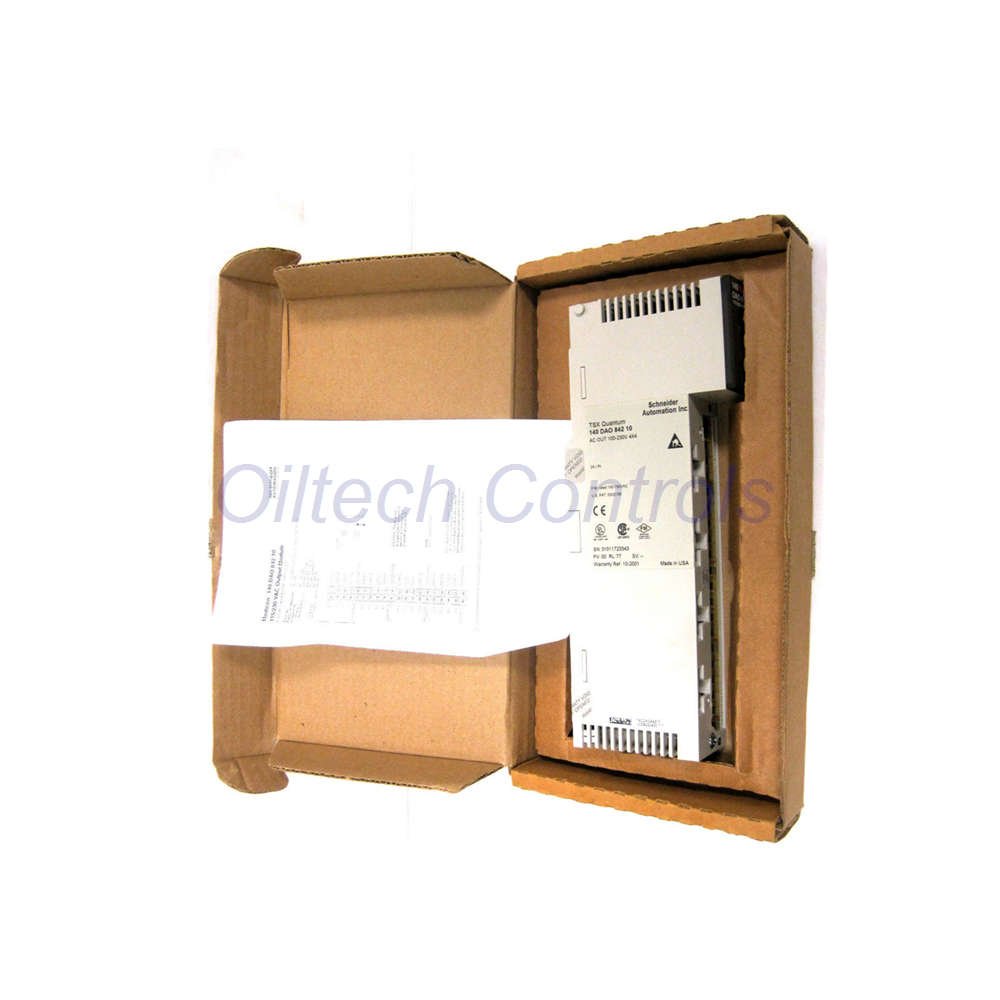

- Package Includes: 1x 140DAO84210 Module, Factory Seal
Frequently Asked Questions
What happens if an output fuse blows?
The red Fault LED illuminates immediately to signal a hardware error. You can identify the specific group through the diagnostic software.
Can I use this for DC loads?
No, the 140DAO84210 is strictly for AC loads. Using DC will damage the internal TRIAC components.
Buyer Guide: How do I choose the right output module?
Verify your total current draw per group. While this module supports 16A total, each group of four outputs must stay under 4A. If your load exceeds this, split the devices across multiple modules to prevent overheating.
