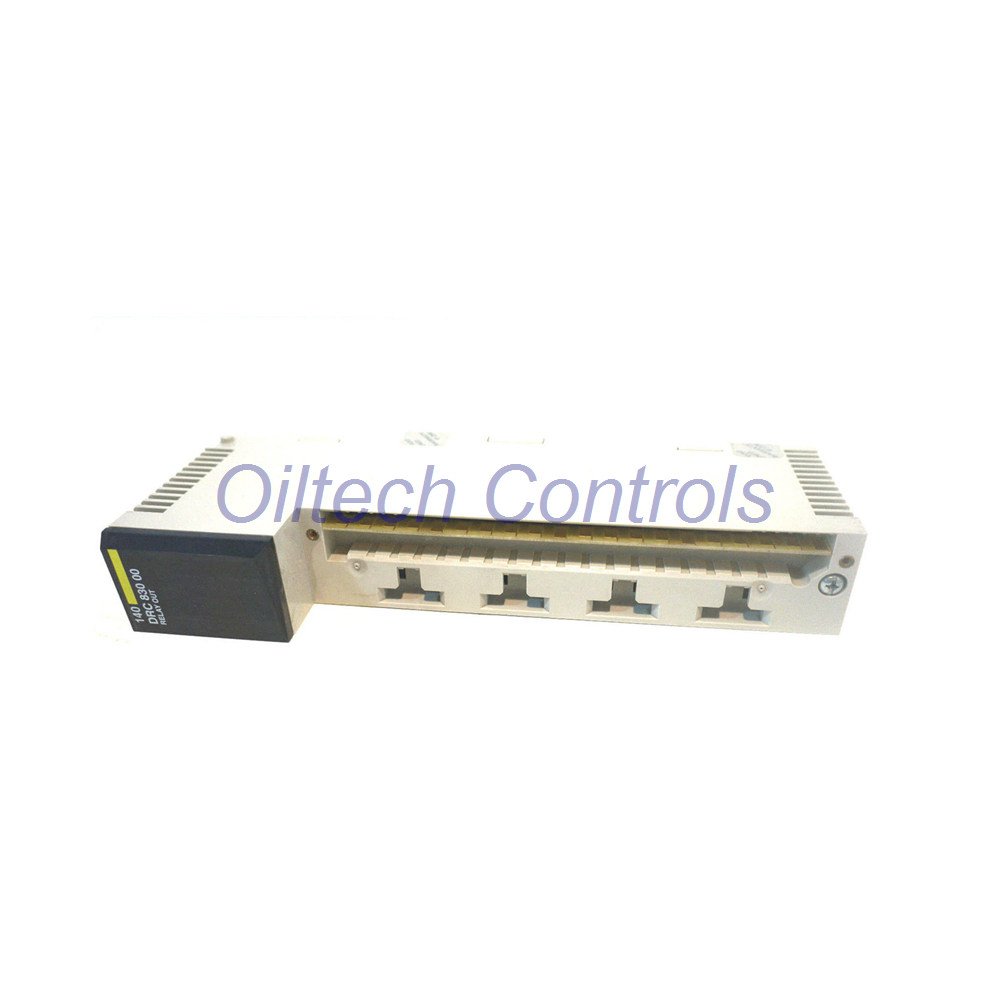

140DRC83000 Modicon Quantum Relay Discrete Output Module by Schneider Electric

Product Executive Summary

• The 140DRC83000 belongs to the robust Modicon Quantum automation line.
• This 140DRC83000 unit serves as a versatile relay discrete output module.
• It manages 8 independent channels with Form C contact configuration.
• Industrial engineers deploy the 140DRC83000 for reliable switching in high load applications.
• Reach us via email at info@oiltechcontrols.com or WhatsApp at +86 158 8020 0923 for instant quotes.

Core Technical Specifications

• Brand: Schneider Electric
• Model: 140DRC83000
• Series: Modicon Quantum
• Output Channels: 8 Form C NO/NC contacts
• Voltage Ranges: 20 to 250 V AC, 30 to 150 V DC, 5 to 30 V DC
• Maximum Load Current: 5 A resistive at 250 V AC or 30 V DC
• Addressing Requirement: 0.5 output word
• Switching Frequency: 30 Hz resistive
• Surge Current: 20 A for 10 ms capacitive
• Power Dissipation: 2.75 W plus active point overhead
• Bus Current Draw: 560 mA
• Net Weight: 0.7 lb

Oiltech Controls Review and Engineering Insight

• The 140DRC83000 excels in heavy duty relay switching without requiring external interposing relays.
• Internal varistors rated at 275 V offer robust output overvoltage protection.
• Mechanical durability reaches up to 10 million cycles for long term reliability.
• Electrical endurance supports 200000 cycles at 5 A resistive loads.
• Engineers appreciate the straightforward 0.5 word addressing format on Modicon Quantum racks.

Deployment Hardware and Suitable Equipment

• Standard Modicon Quantum backplane racks and power supply units.
• Industrial motor starters and heavy solenoid valve assemblies.
• Programmable logic controller CPU racks in remote I/O drops.
• Hazardous plant control panels requiring FM Class 1 Division 2 compliance.
• Turbine emergency shutdown systems and safety interlock loops.

Installation Guide and Maintenance Workflow

• Power down the Modicon Quantum rack before inserting the 140DRC83000 module.
• Align the module securely with the backplane slot and lock the retention mechanisms.
• Verify field wiring integrity against terminal diagrams prior to energizing.
• Monitor front panel green LEDs for bus communication and channel status.
• Watch the red fault LED for external error warnings during operation.

Environmental Ratings and Safety Standards

• Operating Temperature: 32 to 140 Fahrenheit
• Storage Range: -40 to 185 Fahrenheit
• Relative Humidity: 95 percent non-condensing
• Altitude Tolerance: Up to 16404 feet
• Safety Approvals: UL 508, CSA C22.2 No 142, FM Class 1 Division 2, CE, GOST, RMRS, ABS, DNV, RINA

Logistics, Shipping, and Warranty Terms

• Fulfillment Window: Dispatched within 24 to 28 hours from order confirmation
• Global Carriers: FedEx, UPS, and DHL express delivery services
• Warranty Protection: Comprehensive 12 months replacement warranty from purchase date
• Packaging Details: Single unit pack with protective padding and user documentation

Frequently Asked Questions

• Question: What is the main difference between solid-state outputs and the relay outputs of the 140DRC83000?
  Answer: The 140DRC83000 uses mechanical Form C contacts, allowing it to switch both AC and DC loads up to 250 V without leakage current issues common in solid-state switches.
• Question: How do I select the right load parameters for inductive circuits using this 140DRC83000 unit?
  Answer: You must calculate the switching frequency using the formula F = 0.5 divided by current squared times inductance to prevent premature contact wear.
• Question: Why does the 140DRC83000 require 560 mA from the bus?
  Answer: The higher bus current draw powers the internal coil drivers and isolation circuitry required for all 8 isolated relay channels.
• Question: Can the 140DRC83000 module fit into legacy Modicon Quantum drops without rack modifications?
  Answer: Yes, it utilizes standard Modicon Quantum physical format dimensions and backplane pinouts.
• Question: What steps should I take if the red fault LED lights up on the 140DRC83000 faceplate?
  Answer: Check external field power supplies, inspect fused loops, and verify that bus communication packets are transmitting properly from your CPU.
