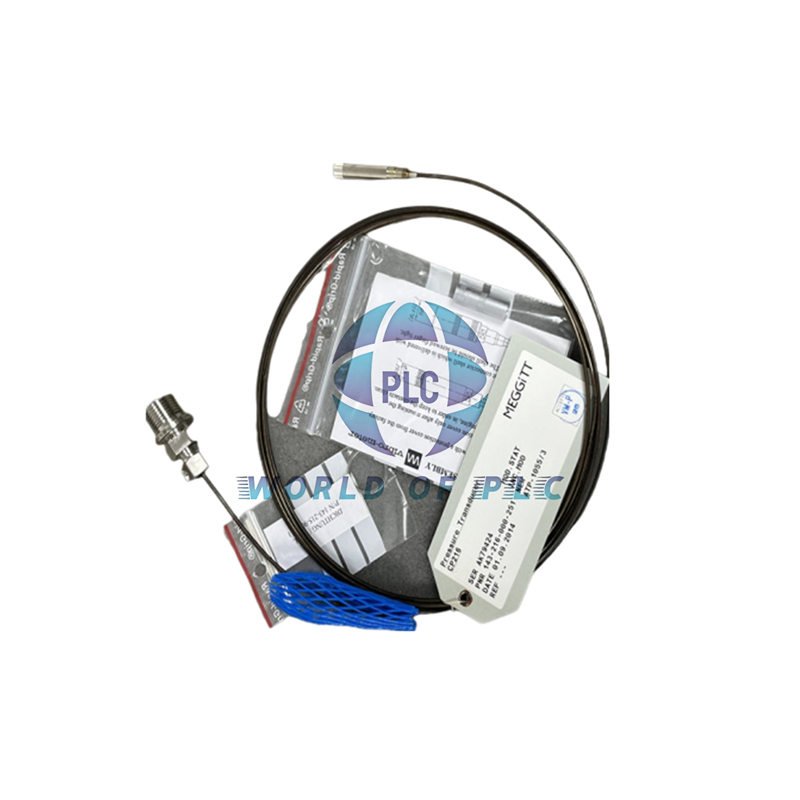

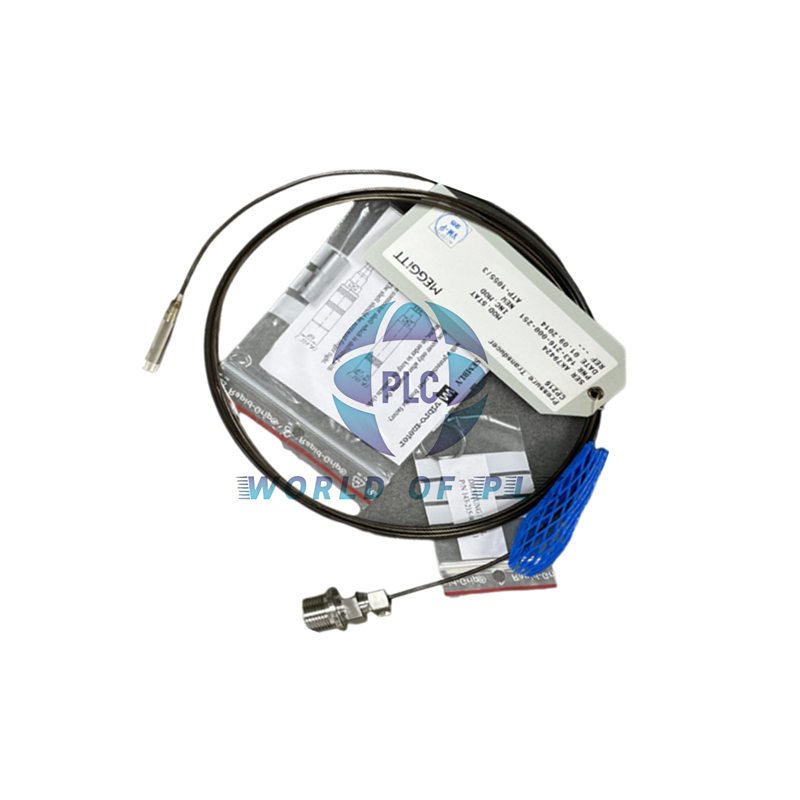

Vibro Meter CP216 High-Pressure Transducer – 350 Bar Range
- Ultra Lightweight – Only 12 grams for minimal system impact
- High Pressure – Measures up to 350 bar overload capacity
- Wide Temperature – Operates from -70°C to 520°C
- Fast Shipping – Available via FedEx, UPS, DHL express
Product Overview
The Vibro Meter CP216 delivers precise dynamic pressure measurements in extreme conditions. This CP216 transducer features advanced piezoelectric technology for gas turbine and industrial applications. Exceptional stability for long-term monitoring.
Technical Specifications
- Part Number: 143-216-000-251
- Pressure Range: 0.0005 to 250 bar
- Max Overload: 350 bar (5076 psi)
- Sensitivity: 200 pC/bar ±5%
- Frequency Response: 2 Hz to 15,000 Hz
- Temperature Range: -70°C to 520°C
- Resonant Frequency: >80 kHz
- Weight: 12 grams
- Accuracy: ±1% linearity
- Shock Rating: 2000 g peak
- Material: NIMONIC alloy 90
- Cable Type: Mineral insulated
Key Benefits
- Ultra-compact and lightweight design
- Excellent acceleration rejection
- Hermetically sealed construction
- Radiation and corrosion resistant
- No external power required
- Permanent factory calibration
Installation Guide
Mount using standard pressure ports. Choose LEMO or high-temperature connector. Connect to charge converter for optimal performance. Light weight allows flexible mounting positions.
Expert FAQ
What applications is this best suited for?
Ideal for gas turbine combustion monitoring, hydraulic system analysis, and high-temperature process control.
How does it handle vibration environments?
Excellent vibration immunity with acceleration sensitivity below 0.5 pC/g for accurate readings in shaky conditions.
What connector options are available?
Choose between standard LEMO for moderate temperatures or special high-temperature connectors for extreme heat applications.
Can it be used in corrosive atmospheres?
Yes, the NIMONIC alloy 90 construction provides superior resistance to corrosion and chemical exposure.
What’s the typical lifespan in continuous operation?
Designed for years of reliable service with no maintenance required under normal operating conditions.
Warranty & Support
All products include 12-month quality assurance. Professional installation guidance available. Quick international delivery.
