Product Identity

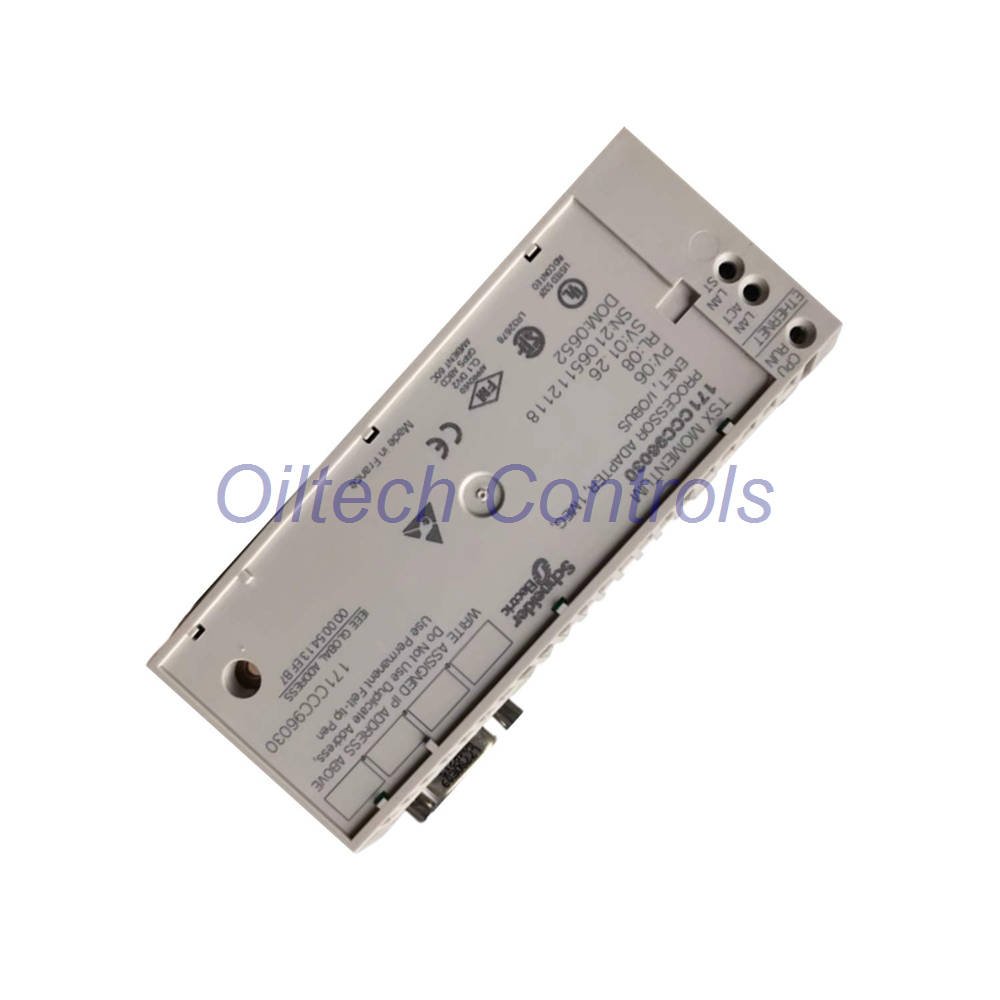

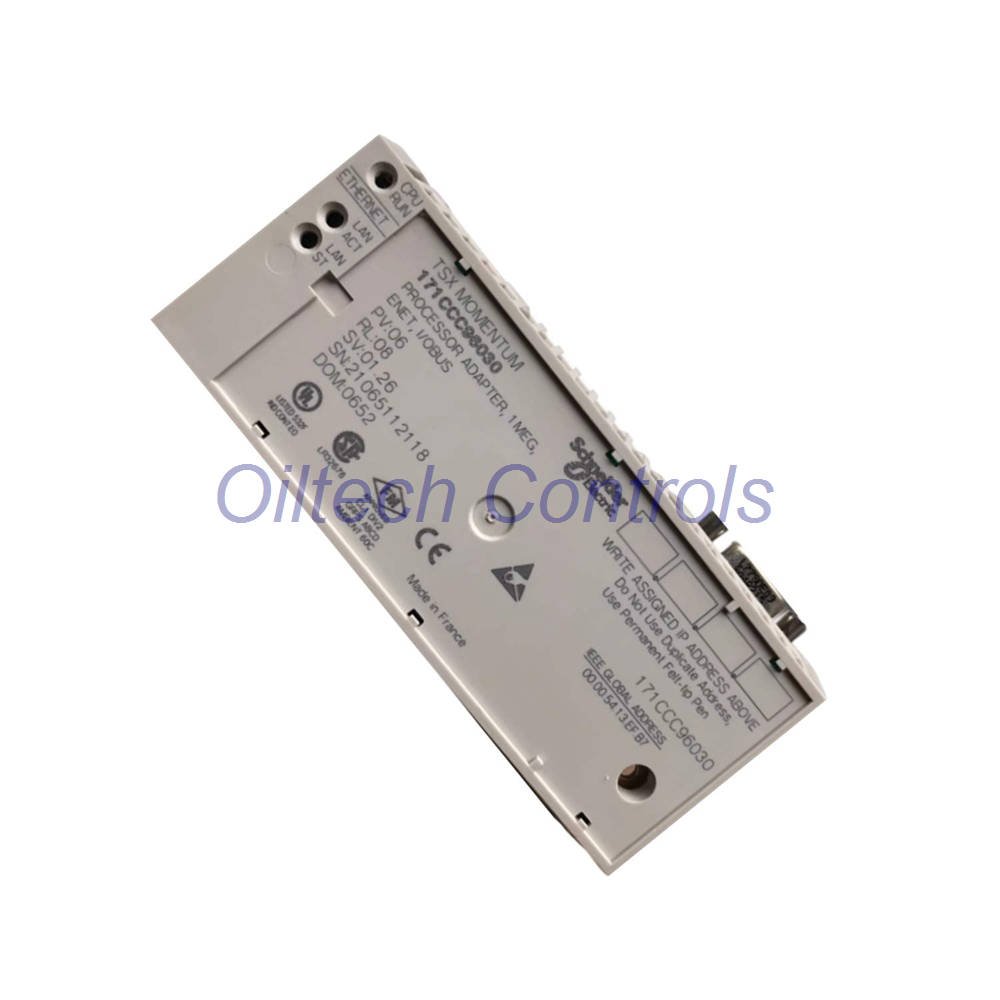

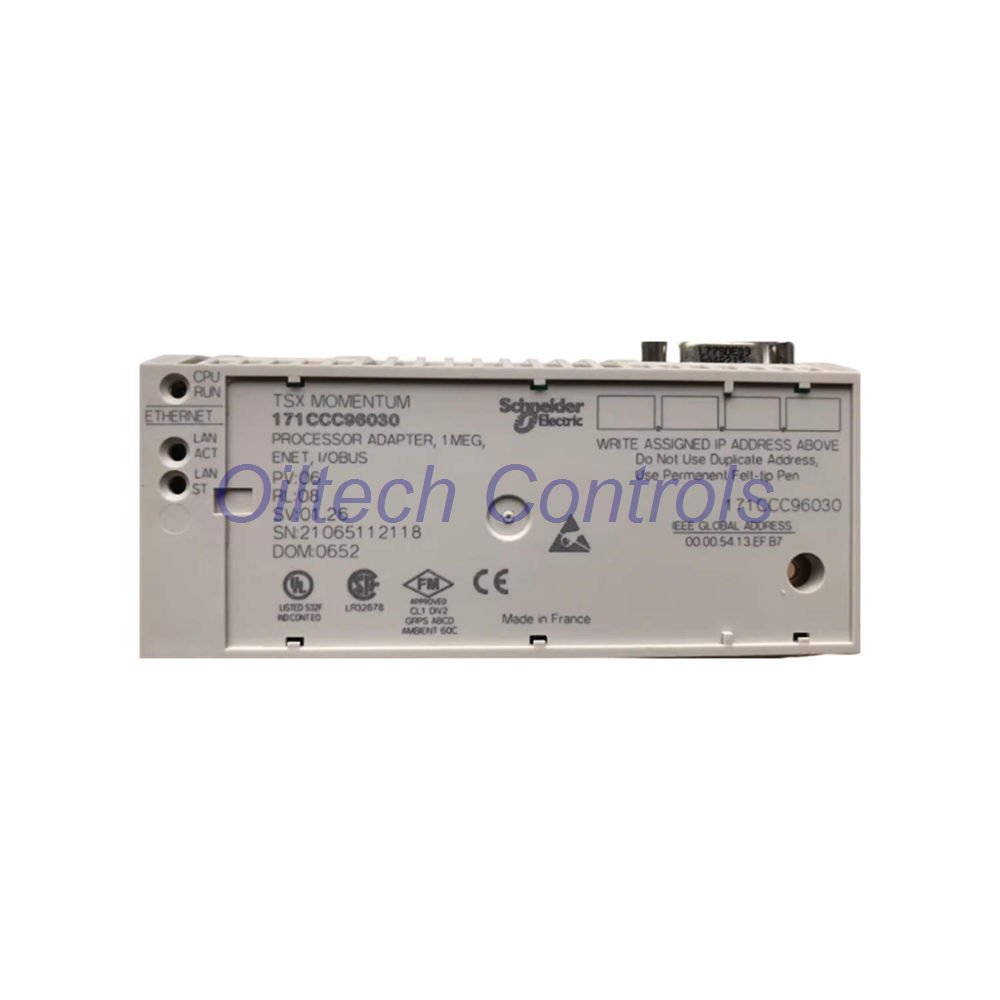

171CCC96030 is an M1/M1E processor adapter module.
It is designed for high-speed control in distributed automation systems.
This module belongs to the Modicon Momentum platform by Schneider Electric.
The processor uses an x86-based architecture.
It supports Ethernet communication for modern control networks.
At a Glance
- Part Number: 171CCC96030
- Product Type: M1/M1E processor adapter
- Platform: Modicon Momentum
- CPU Speed: 50 MHz
- Communication: Ethernet
- Supply Voltage: 5 V DC
Configuration Breakdown
- Processing Core
- Architecture: x86 based IEC executive
- Instruction time: 1 ms per Kinstruction
- Scan time: 0.3 ms per kilobyte
- Memory Structure
- Flash memory: 1 MB
- RAM: 544 kB
- Program memory: 200 kB IEC
- Data memory: 24 kB
- I/O Handling
- Register I/O: 26,048 words
- Discrete I/O: 8192 inputs / 8192 outputs
- Word length: 16 bit
Network & Communication
- Ethernet port for Modbus TCP messaging
- Integrated I/O bus interface
- Supports I/O scanning and Ethernet services
- Web-based diagnostics and data editor
Performance Highlights
- Fast data execution for time-critical tasks
- Stable operation in continuous control cycles
- Low power consumption design
- Optimized for distributed I/O systems
Mechanical & Electrical Data
- Rated voltage: 5.0 V DC ±5%
- Material: Lexan housing
- Weight: 0.042 kg
- Ports: 1 Ethernet, 1 I/O bus
Environmental Endurance
- Operating temperature: 0 to 60 °C
- Storage temperature: −40 to 85 °C
- Humidity: 5 to 96 percent non-condensing
- Operating altitude: up to 2000 m
- Shock resistance: 15 gn for 11 ms
- Vibration resistance: 1 gn
System Compatibility
- Works with Momentum I/O bases
- Configured using Concept and ProWORX software
- Ideal bridge for legacy and Ethernet systems
- Complements platforms such as Modicon Quantum
Typical Use Cases
- Distributed I/O control systems
- Machine-level automation
- Process monitoring nodes
- Ethernet-based PLC networks
- Industrial retrofit projects
Warranty & Shipping
- Warranty: 12 months
- Shipping Methods: FedEx, UPS, DHL
- Secure industrial packaging
Professional FAQ
Is 171CCC96030 suitable for high-speed control?
Yes. The 50 MHz CPU supports fast scan and execution.
Can it communicate with Ethernet PLC networks?
Yes. It supports Ethernet and Modbus TCP services.
How much I/O data can it process?
Up to 26,048 words with 16-bit resolution.
Is this module suitable for retrofit projects?
Yes. It bridges older Momentum systems to Ethernet.
How do I choose between Momentum processors?
Select based on memory size and network needs.
