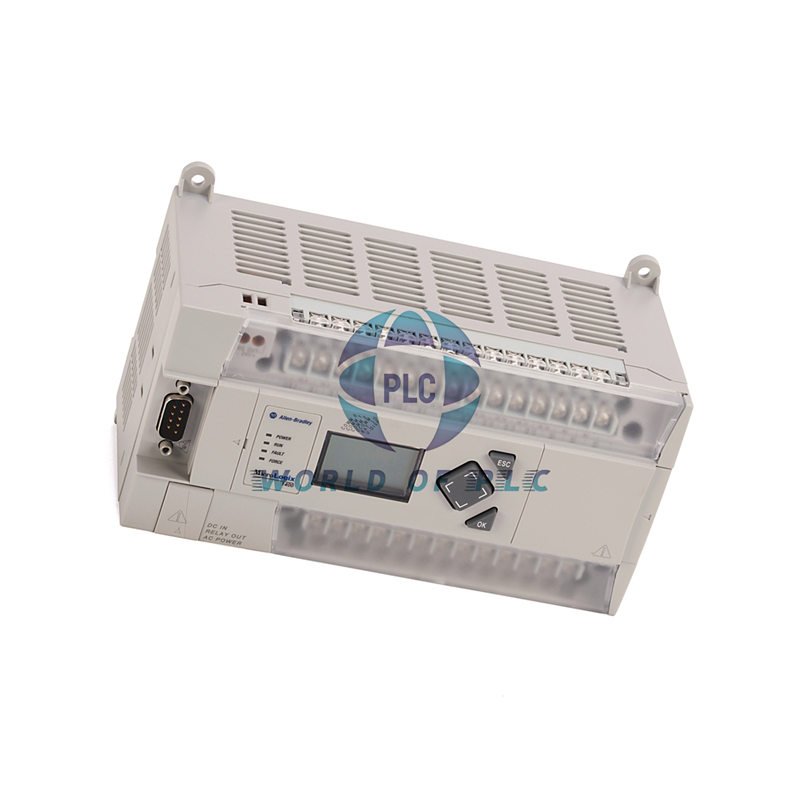

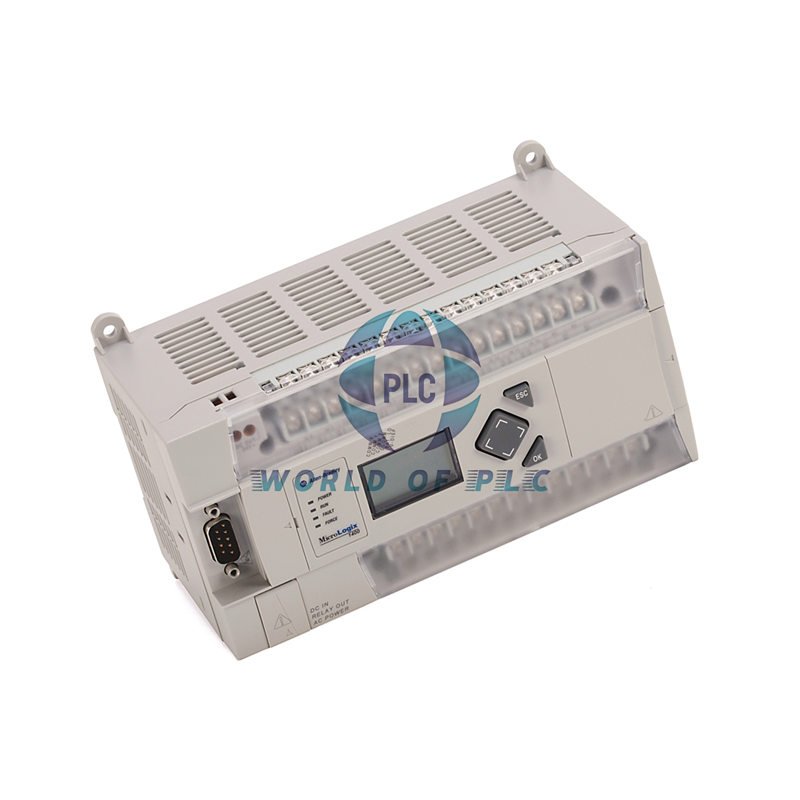

1766-L32BWA MicroLogix 1400 Controller
The 1766-L32BWA is a MicroLogix 1400 controller built for machine-level automation and small process control. It combines 32 digital I/O points with three communication ports in one compact housing. The controller carries 20 KB of user memory, a built-in real-time clock, and a backlit LCD for on-site status checks. It accepts 100–240 VAC supply power and mounts on a panel or DIN rail. This unit is discontinued, so stock is limited. Oiltech Controls tests every module before dispatch.
I/O Architecture and Embedded Features
- 12 fast 24 VDC inputs rated for 100 kHz high-speed switching devices
- 8 normal 24 VDC inputs for general-purpose discrete signals
- 12 relay outputs that switch mixed voltage load categories
- Up to 6 embedded 100 kHz high-speed counters on DC variants
- Battery-backed RAM preserves program and data through power loss
- Expansion capacity of up to 7 pieces of 1762 I/O modules
- Backlit LCD for network setup, I/O monitoring and parameter editing
Communication and Protocol Support
- Port 1: isolated combo RS232 / RS485
- Port 2: isolated RS232
- Port 3: Ethernet port with web server and email functions
- Serial protocols: DF1, ASCII, MODBUS RTU, DNP3, DH485
- Ethernet protocols: EtherNet/IP, MODBUS TCP/IP, DNP3 over Ethernet
- MODBUS RTU on RS485 supports daisy-chain topology up to 32 nodes
- DNP3 suits substation automation and IED communication
- ASCII mode handles barcode readers and factory data capture
Electrical and Mechanical Data
- Supply voltage: 100–240 VAC, frequency 47–63 Hz
- Power consumption: 120 VA; inrush 25 A at 120 VAC / 40 A at 240 VAC
- Analog resolution: 12 bit
- Wire size: 22 to 14 AWG
- Dimensions: 90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in)
- Weight: 2 lbs
- Mounting: panel or DIN rail, open enclosure
- Environment: clean, dry industrial area, Over Voltage Category II circuits
Oiltech Controls Review: 1766-L32BWA Fit and Limitations
- Strong fit for machine-level cells that need relay outputs and mixed-voltage switching
- Good match for MODBUS power meters and DNP3 substation devices
- Ethernet port enables remote monitoring without extra gateway hardware
- Suited to retrofit projects replacing MicroLogix 1100 units
- Discontinued status means limited supply, so verify firmware revision first
- Relay outputs wear with inductive loads; add suppression where needed
Devices and Systems That Pair With This Controller
- 1762 expansion I/O modules for added discrete and analog points
- Power meters and energy monitors over MODBUS RTU
- Intelligent Electronic Devices in DNP3 substation networks
- Barcode scanners and vision systems using ASCII protocol
- Solenoid banks, contactors and pilot lamps on relay outputs
- PanelView operator terminals over EtherNet/IP
- High-speed encoders and proximity sensors on fast DC inputs
Installation Notes
- Confirm supply voltage before wiring; the unit needs 100–240 VAC
- Keep serial cable runs within 30 m rated length
- Use 22–14 AWG copper conductors on terminal blocks
- Mount inside an enclosure rated for Over Voltage Category II circuits
- Set network parameters through the LCD before connecting to plant LAN
- Back up the user program; battery-backed RAM is not a permanent archive
Shipping, Lead Time and Warranty
- Dispatch within 24–28 hours after order confirmation
- Couriers: FedEx, UPS, DHL
- 12-month warranty covering functional defects
- Every unit receives technical verification before shipment
- Global shipping support with tracking on all parcels
Why Buy From Oiltech Controls
- More than 15 years in industrial automation spare parts
- Tested surplus and refurbished options for obsolete systems
- Technical check before every dispatch
- Support for legacy Allen-Bradley control platforms
- Email: info@oiltechcontrols.com
- WhatsApp: +86 158 8020 0923
Frequently Asked Questions
Q: Can I use the relay outputs on 24 VDC and 120 VAC loads in the same panel?
A: Yes. The 12 relay outputs are rated for mixed voltage categories. Check each load current against the relay contact rating before wiring. For inductive AC loads, add an RC snubber to reduce contact wear.
Q: How do I choose between the 1766-L32BWA and a newer Micro800 controller?
A: Stay with the 1766-L32BWA when the existing program uses RS232, DH485 or DNP3 ports. Choose Micro800 for new builds where EtherNet/IP and compact form factor matter. Migration cost is lower when you keep the existing 1762 I/O modules.
Q: What is the practical limit for RS485 daisy-chain wiring?
A: MODBUS RTU on RS485 handles up to 32 devices in daisy-chain topology. Terminate both ends and keep stub lengths short. Verify baud rate and parity on each node before commissioning the network.
Q: Will the controller keep its program after a power outage?
A: The battery-backed RAM retains program and data. Replace the battery on schedule; an exhausted battery loses the program at power-down. Keep an offline copy of the user program for fast recovery.
Q: How many 1762 expansion modules can I add, and does it affect scan time?
A: You can add up to 7 pieces of 1762 I/O modules. Each added module increases scan time slightly. Group high-speed signals on the embedded fast inputs rather than expansion channels to preserve response.
