Allen-Bradley 1794-IE12 Flex I/O Analog Input Module | 12-Channel

1794-IE12 Flex I/O High-Density Analog Input Module

Brand: Allen-Bradley (Rockwell Automation)
Catalog No.: 1794-IE12
Series: Flex I/O High-Density Analog Module

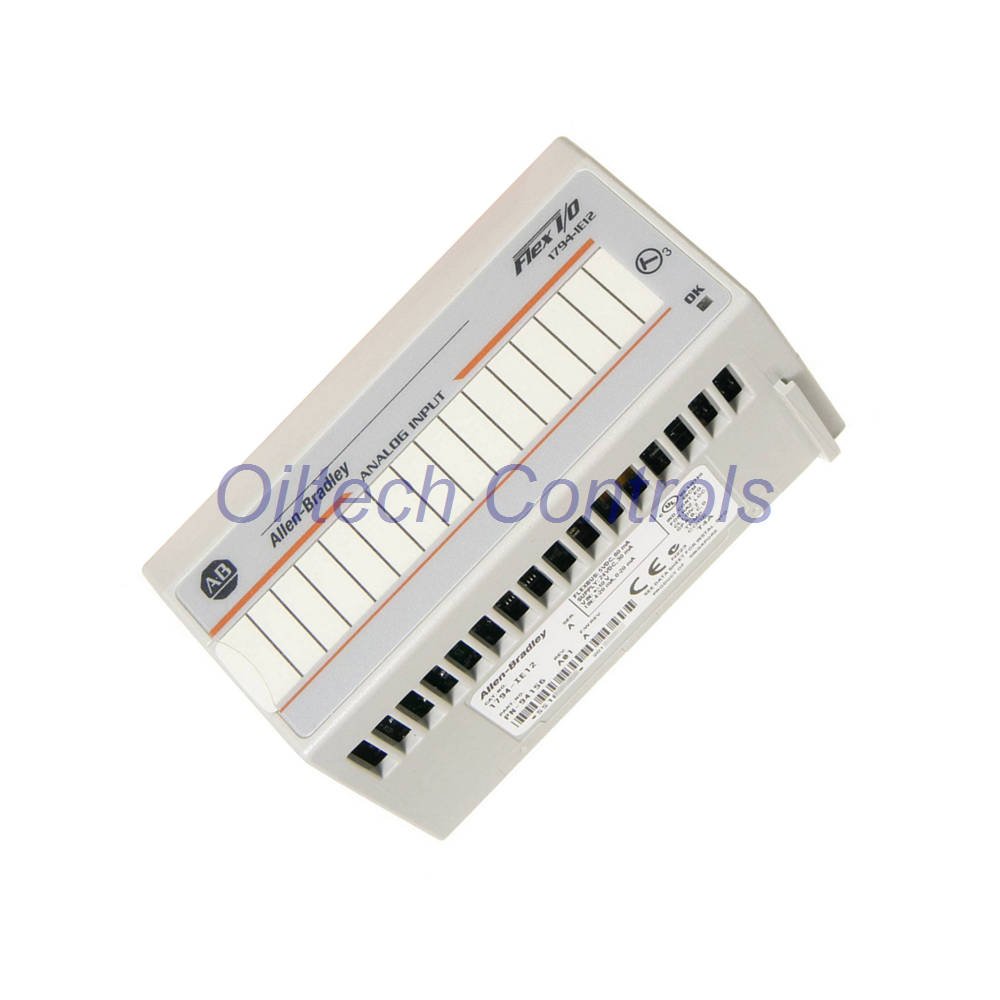

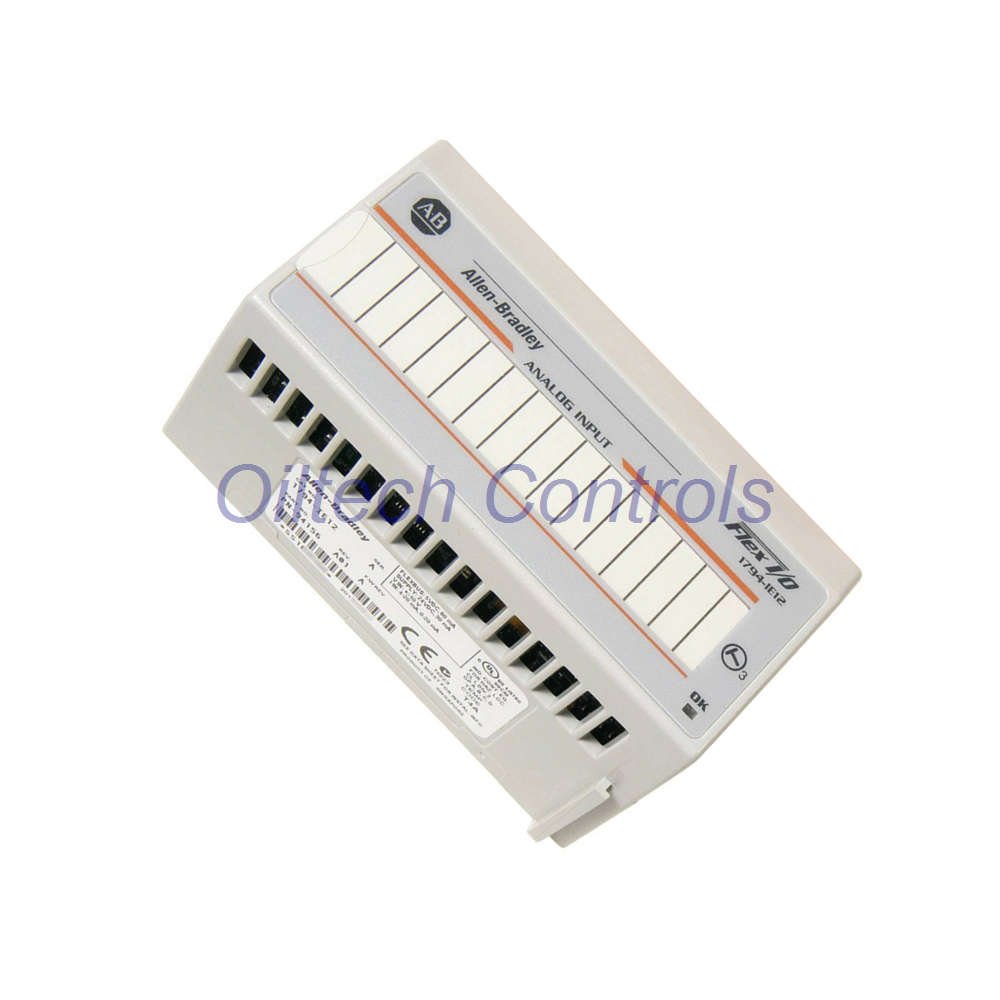

The 1794-IE12 is a 12-channel single-ended analog input module. It accepts 0-20 mA, 4-20 mA, ±10V DC, and 0-10V DC signals. The module uses successive approximation conversion with 16-bit resolution. It offers a conversion rate of 8.0 ms for all channels. Absolute accuracy is 0.1% full scale at 25 °C. This module is designed for the 1794-TB3G or 1794-TB3GS terminal bases. Keyswitch position 3 ensures correct installation. The 1794-IE12 is ideal for transmitters, indicators, and multi-loop controllers.

Technical Specifications

Environmental & Mechanical

• Operating Temperature: 0 to 55 °C (32 to 131 °F)
• Storage Temperature: –40 to 85 °C (–40 to 185 °F)
• Vibration: 5g @ 10 to 500 Hz
• Operating Shock: 30 g
• Non-operating Shock: 50 g
• Mounting: DIN Rail
• Dimensions: 3.7 x 3.7 x 2.1 in

Installation & Compatibility

Terminal Bases: 1794-TB3G or 1794-TB3GS (one per module).
Keyswitch Position: 3 (prevents incorrect module installation).
Wire Size: Determined by the installed terminal base.
Compatible Adapters: All Flex I/O communication adapters.

Diagnostics & Maintenance

• Green/red status LED indicates power and module health.
• Open-type enclosure for easy access.
• No calibration required; factory calibrated.
• Quick step response for fast control loops.

Typical Applications

• Process control (flow, pressure, temperature)
• Factory automation and machine control
• Data acquisition systems
• Replacement for obsolete analog I/O in legacy systems

Certifications & Standards

• UL Listed, CSA Certified
• CE Marked (European Compliance)
• RoHS Compliant

Package Contents

• (1) 1794-IE12 Analog Input Module
• Installation Instructions (pub. 1794-5.2)
• No terminal base included (order separately)

Warranty & Shipping

Warranty: 12-month limited warranty against defects.
Shipping Carriers: FedEx, UPS, DHL (global delivery).
All modules are tested before shipment.

Frequently Asked Questions (FAQ)

Q: Can I mix voltage and current inputs?
A: Yes, each channel is individually configurable.

Q: Is channel-to-channel isolation provided?
A: No, there is no isolation between individual channels.

Q: What is the maximum input overload?
A: 30V or 32 mA continuous (one channel at a time).

Q: Does the module support HART?
A: No, HART is not supported.

Why Buy From Oiltech Controls?

• 15+ years experience in industrial automation spare parts.
• Global shipment support – fast and reliable.
• Tested industrial surplus and refurbished options available.
• 12-month warranty on all products.
• Technical verification before shipment.
• Expert support for obsolete control systems, including Modicon Quantum.
