1769-IQ16 | 16-Ch 24V DC Input Module – Allen-Bradley CompactLogix Buy Now

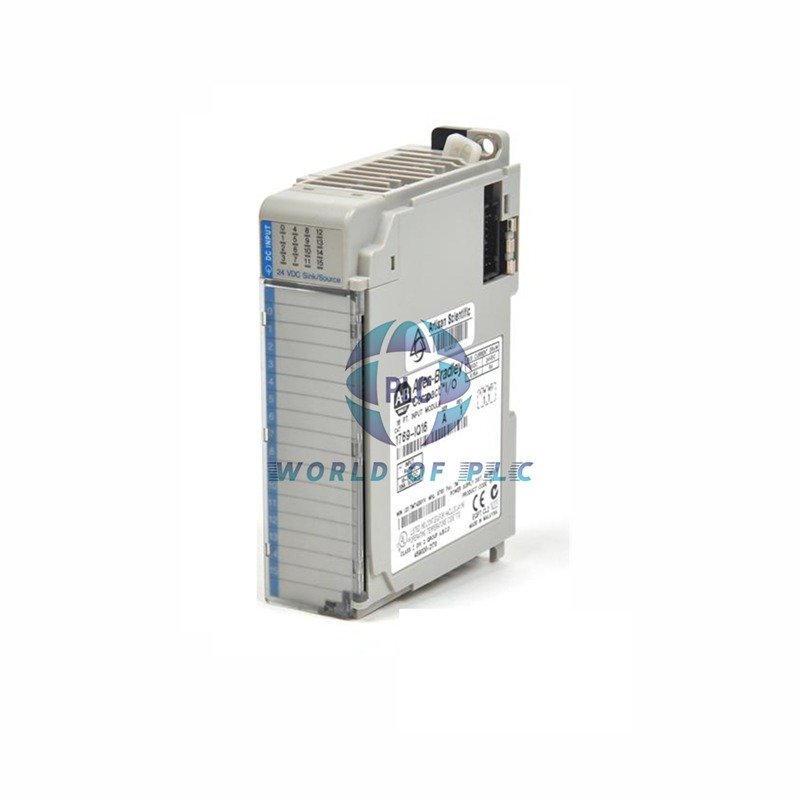

Allen-Bradley 1769-IQ16: Flexible 16-Channel 24V DC Input Module

Key Benefits

The 1769-IQ16 offers 16 versatile DC inputs that work with both sinking and sourcing devices. With dual isolated groups, it’s perfect for connecting sensors, switches, and relays in CompactLogix systems.

Technical Highlights

• Brand: Allen-Bradley
• Model: 1769-IQ16 (Current Production)
• Input Type: 24V DC sink/source
• Channels: 16 (2 groups of 8)
• Voltage Range: 10-30V DC
• Response Time: 8ms
• Isolation: 75V DC between groups
• Power: 115mA @ 5.1V DC
• Wire Size: 22-14 AWG solid
• Dimensions: 4.65″ x 1.38″ x 3.43″

Easy Installation

Mount within 8 modules of power supply. Works with 1769-PA2/PB2/PA4/PB4. DIN rail or panel mount options.

System Compatibility

Perfect match for CompactLogix and MicroLogix 1500 controllers. IEC Class 2 certified.

Package Contents

• 1769-IQ16 module
• Installation guide

Reliability Promise

12-month performance warranty. Ships via FedEx, UPS, or DHL worldwide.

Expert Answers

• Q: Can I mix sinking and sourcing devices?
  A: Yes! Each channel works with both types.
• Q: What’s the minimum ON voltage?
  A: 10V DC guarantees input recognition.
• Q: How are the input groups isolated?
  A: 75V DC isolation between groups 1 and 2.
• Q: What’s the maximum wire length?
  A: 100m (328ft) with proper shielding.
• Q: Can it handle rapid on/off cycles?
  A: Yes, with 8ms response time.

Get More Information

• Full product manual: Download 1769-IQ16 Specs
• Wiring examples: Get Connection Diagrams
