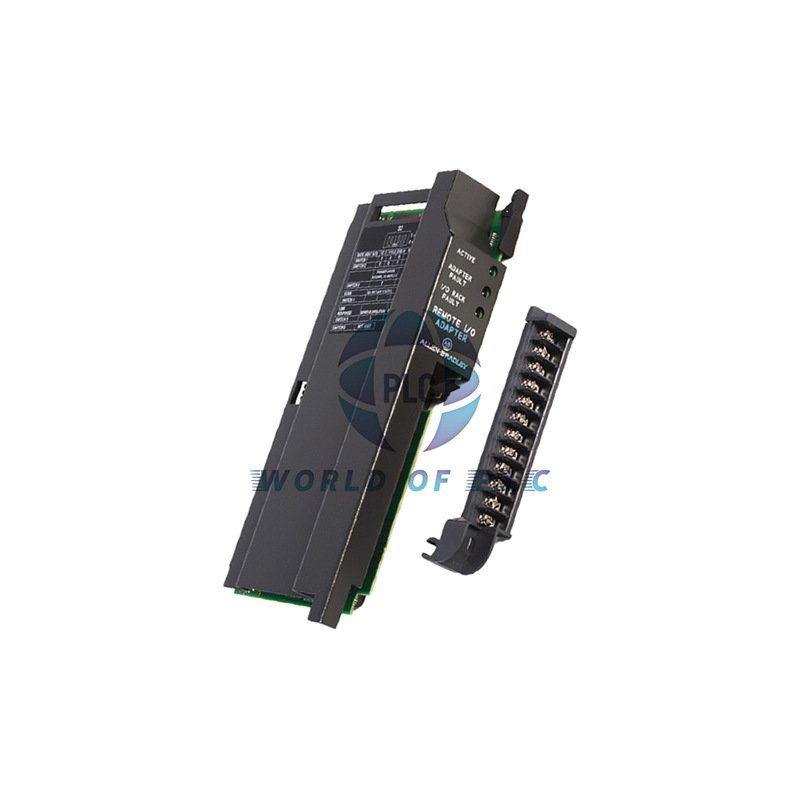

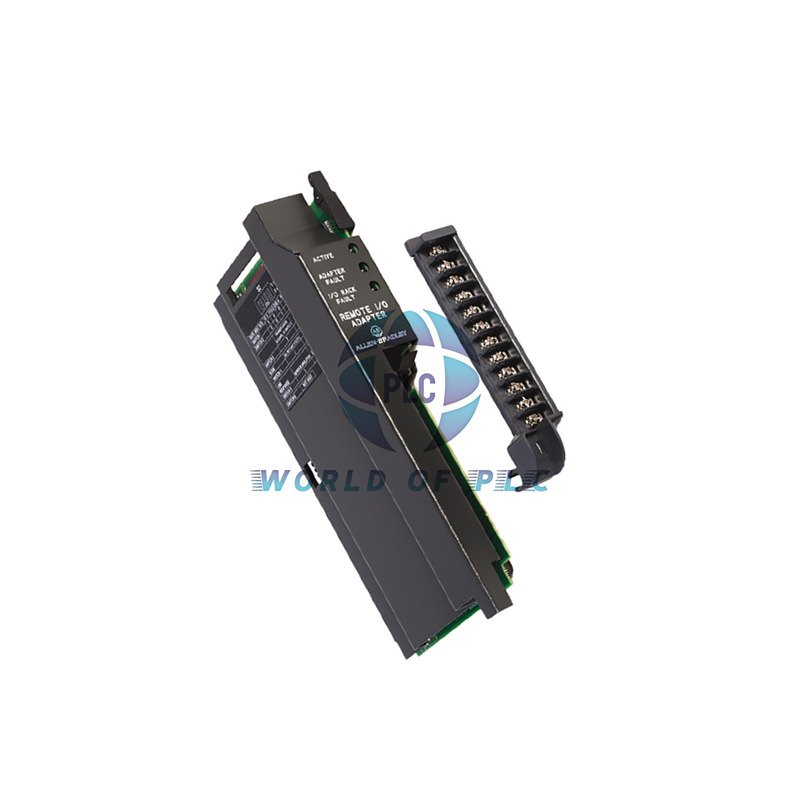

1771-ASB – PLC 5 Remote I/O Adapter Module
Brand: Allen-Bradley (Rockwell Automation) | Series: PLC 5 | Type: RIO Adapter Module
This module interfaces remote I/O modules with PLC 5 controllers via a RIO link. It reduces wiring costs and places I/O near sensors and actuators. It supports 32 I/O adapter devices and uses Belden 9463 cable.
Key Technical Specifications
| Communication Rates | 57.6 kbps, 115 kbps, 230 kbps (selectable) |
| Backplane Current | 1.0 A at 5 V DC |
| Power Dissipation | 5.2 W (max) |
| Number of Connections | 32 I/O adapter devices |
| Cable Type | Belden 9463 (Blue Hose) or equivalent |
| Terminating Resistor | 82 Ω (enhanced RIO) or 150 Ω (legacy) |
| Maximum Cable Length | 10,000 ft at 57.6 kbps; 2,500 ft at 230.4 kbps |
| I/O Chassis Support | 4, 8, 12, 16, or 32-slot |
| Addressing | 1-slot or 2-slot I/O addressing |
| Weight | 1.9 lbs (0.9 kg) |
| Dimensions | 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm) |
Environmental & Certifications
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Humidity | 5…95% non-condensing |
| Noise Immunity | NEMA ICS 2-230 |
| Certifications | UL Listed, CSA, Class I Div 2 Groups A-D, CE, Marine, C-tick |
| Mounting | In-chassis (left-most slot of 1771 chassis) |
| Connector | Wiring arm (1771-WB) |
| Lower Connector Keying | 16 to 18 |
Diagnostic & Status Indicators
- ACTIVE LED: Green – normal operation.
- ADAPTER FAULT LED: Red – adapter fault.
- I/O RACK FAULT LED: Red – rack fault.
- Enhanced diagnostics ease troubleshooting.
- Two switch assemblies for configuration.
Installation & Wiring
- Mount in the left-most slot of the 1771 I/O chassis.
- Use Belden 9463 (or equivalent) cable for RIO link.
- Install terminating resistors (82 Ω or 150 Ω) at both ends of the daisy-chain.
- Supports 4, 8, 12, 16, or 32-slot chassis.
- Field wiring arm (1771-WB) included.
Compatibility & Communication
- Works with PLC 5 processors via RIO scanner port.
- Serial communication; parallel read/write to I/O modules.
- Daisy-chain topology with terminating resistors.
- Backplane scanning up to 2500 ft at 230.4 kbps.
- Improved scan time by skipping last 4 slots (saves I/O image space).
Typical Applications
- Distributed I/O for PLC 5 control systems.
- Remote actuator and sensor integration.
- Factory automation and process control.
- Retrofit and upgrade of legacy PLC 5 systems.
Diagnostic & FAQ
- Diagnostic: LEDs show active, adapter, and rack fault status. Enhanced diagnostics for faster troubleshooting.
- FAQ: What cable do I need? – Belden 9463 (Blue Hose).
- What terminating resistor? – 82 Ω (newer) or 150 Ω (older).
- How many devices? – Up to 32 I/O adapter devices.
- Max cable length? – 10,000 ft at 57.6 kbps; 2,500 ft at 230.4 kbps.
- Mounting slot? – Left-most slot of 1771 chassis.
Why Buy From Oiltech Controls?
- 15+ years of industrial automation spare parts expertise.
- Worldwide shipping via FedEx, UPS, DHL.
- Tested surplus and refurbished options with full functionality.
- 12-month warranty on all products.
- Technical verification and testing before shipment.
- Support for obsolete control systems and legacy hardware.
Contact: For inquiries, email info@oiltechcontrols.com or call +86 158 8020 0923 (WhatsApp).
Package includes: 1771-ASB module, wiring arm (1771-WB), and user manual (digital). Resistors and cable sold separately.
Shipping: Shipped worldwide via FedEx, UPS, or DHL. Delivery within 2-5 business days.
