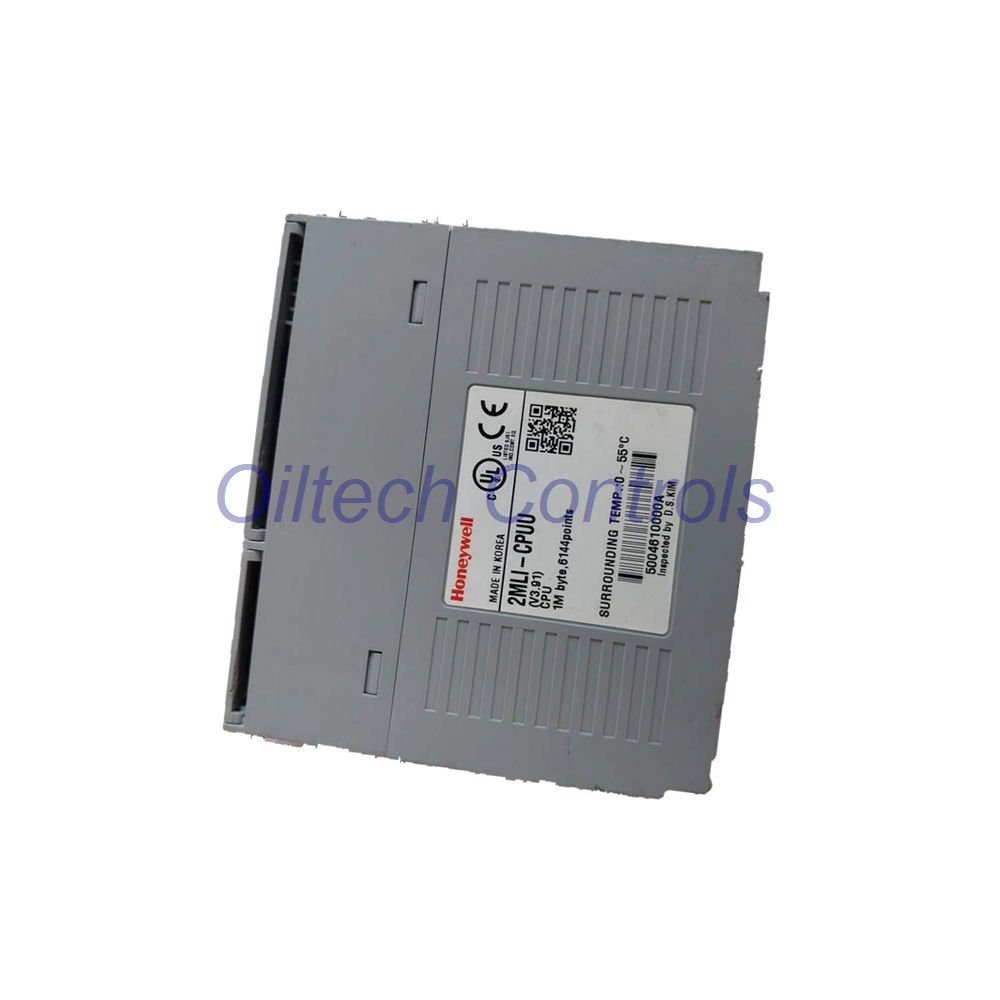

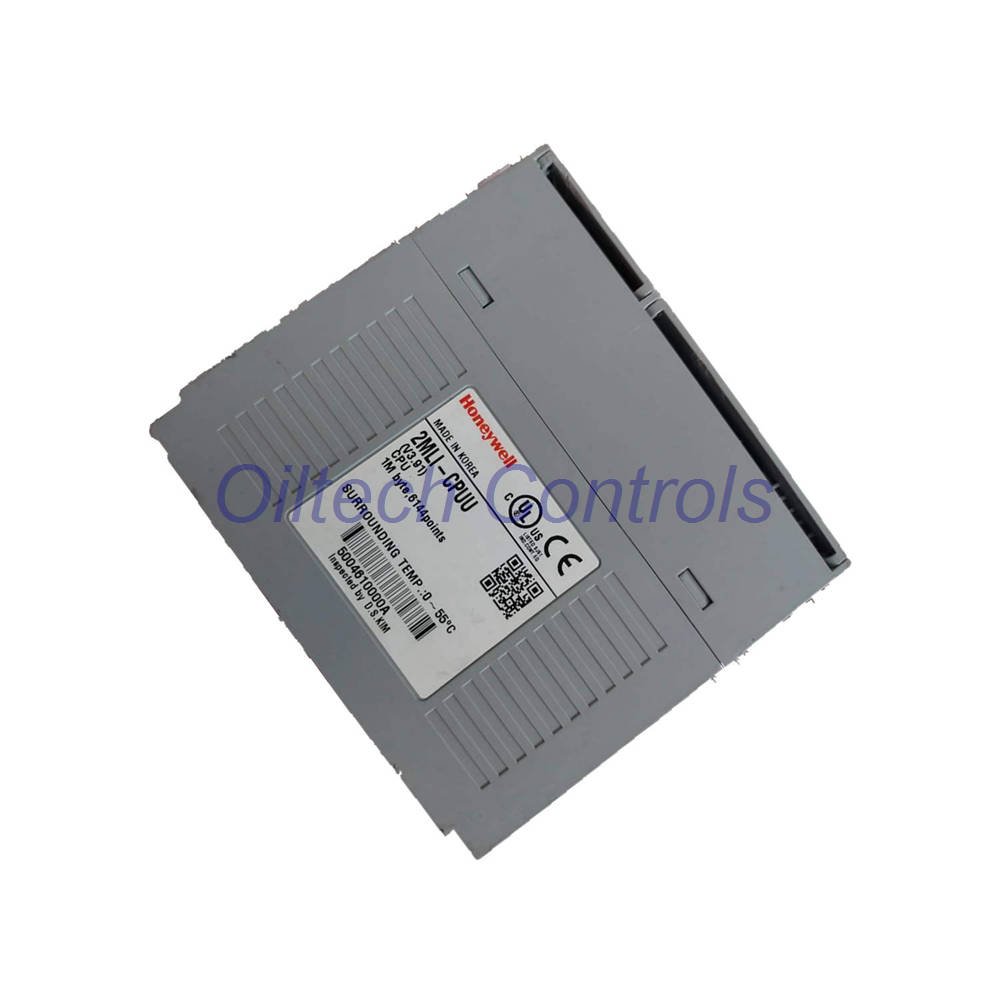

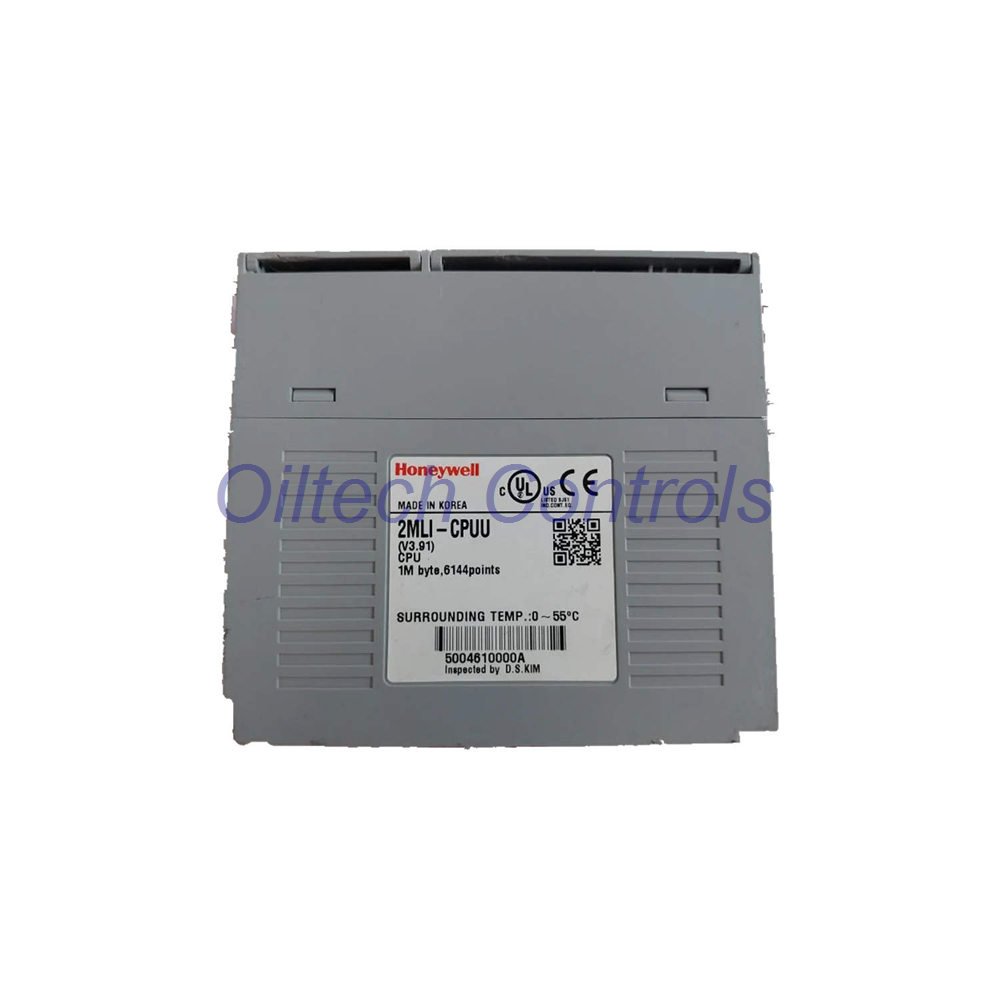

2MLI-CPUU Honeywell MasterLogic-200 Enhanced CPU 4MB Program

2MLI-CPUU Honeywell MasterLogic-200 Enhanced Processor Module

The 2MLI-CPUU stands as the high-performance core of the Honeywell MasterLogic-200 series, specifically engineered for complex, high-density industrial applications. This enhanced CPU manages up to 6,144 I/O points and features a massive 3.5 MB program memory capacity. Supporting flexible IEC 61131-3 programming languages, the 2MLI-CPUU provides the computational power required for sophisticated logic, real-number math, and constant scan operations. Oiltech Controls delivers this robust processor to ensure maximum uptime in large-scale manufacturing and process control environments.

System Architecture & Data Capacity

• Processing Engine: Scan synchronous batch processing with refresh and direct command capabilities
• Program Capacity: 3.5 MB dedicated memory for complex logic and large-scale algorithms
• I/O Handling: Supports up to 6,144 installable points for extensive field device integration
• Memory Contacts: Maximum 131,072 points for internal I/O memory addressing
• Symbolic Variables (A): 512KB total area with up to 256KB configurable for data retention
• Direct Variables (M): 256KB internal memory with 128KB retainable settings
• I/Q Variables: 16KB dedicated for Input (I) and 16KB for Output (Q) data streams

Logic Control & Execution Standards

• Operation Modes: Reiterative operation, fixed cycle execution, and ultra-stable constant scan
• Language Support: Industry-standard Ladder Diagram (LD), Sequential Function Chart (SFC), and Structured Text (ST)
• Function Library: 136 basic functions plus advanced real-number arithmetic operations
• Function Blocks: 43 pre-defined basic function blocks for rapid software development
• Programming Tools: Full compliance with IEC standard operators (18 total)

Oiltech Controls’ Insight & Equipment Compatibility

• The 2MLI-CPUU is the preferred choice for decentralized control systems (DCS) integration in water treatment and power generation.
• Its enhanced memory makes it suitable for “Smart Factory” upgrades where extensive data logging and recipe management are required.
• This module replaces legacy MasterLogic CPUs to provide higher speed and significantly larger I/O mapping capabilities.
• Fully compatible with all MasterLogic-200 series rack bases, power supplies, and specialized communication modules.
• Need help with configuration? Email our engineers at info@oiltechcontrols.com or message us on WhatsApp (+86 158 8020 0923).

Logistics & Service Standards

• Quality Assurance: Guaranteed 12-month technical warranty on all 2MLI-CPUU units.
• Processing Speed: Orders are professionally handled and dispatched within 24 to 28 hours.
• Express Delivery: Global door-to-door service provided by FedEx, UPS, and DHL.
• Condition: Factory-new in original Honeywell protective industrial packaging.

Professional FAQ & Buying Guide

• How do I configure the data retention area on the 2MLI-CPUU?
• Retention settings for symbolic and direct variables are defined within the MasterLogic programming software parameters.
• What is the primary difference between the 2MLI-CPUU and standard CPU models?
• The “Enhanced” designation provides nearly double the program memory and expanded I/O points for large-scale operations.
• Does this module support real-time data processing for complex math?
• Yes, it includes a dedicated real-number operation function for precise floating-point calculations in process loops.
• Selection Tip: When should I choose Structured Text (ST) over Ladder Diagram?
• ST is highly recommended for complex mathematical formulas and data handling, while Ladder remains best for discrete logic.
• Experience Advice: How do I ensure maximum memory stability during power cycles?
• Utilize the retainable variable areas (A and M) to prevent loss of critical setpoints and process states during unplanned shutdowns.
