2MLP-DC42 Honeywell MasterLogic-200 Power Supply | 24V DC 6A

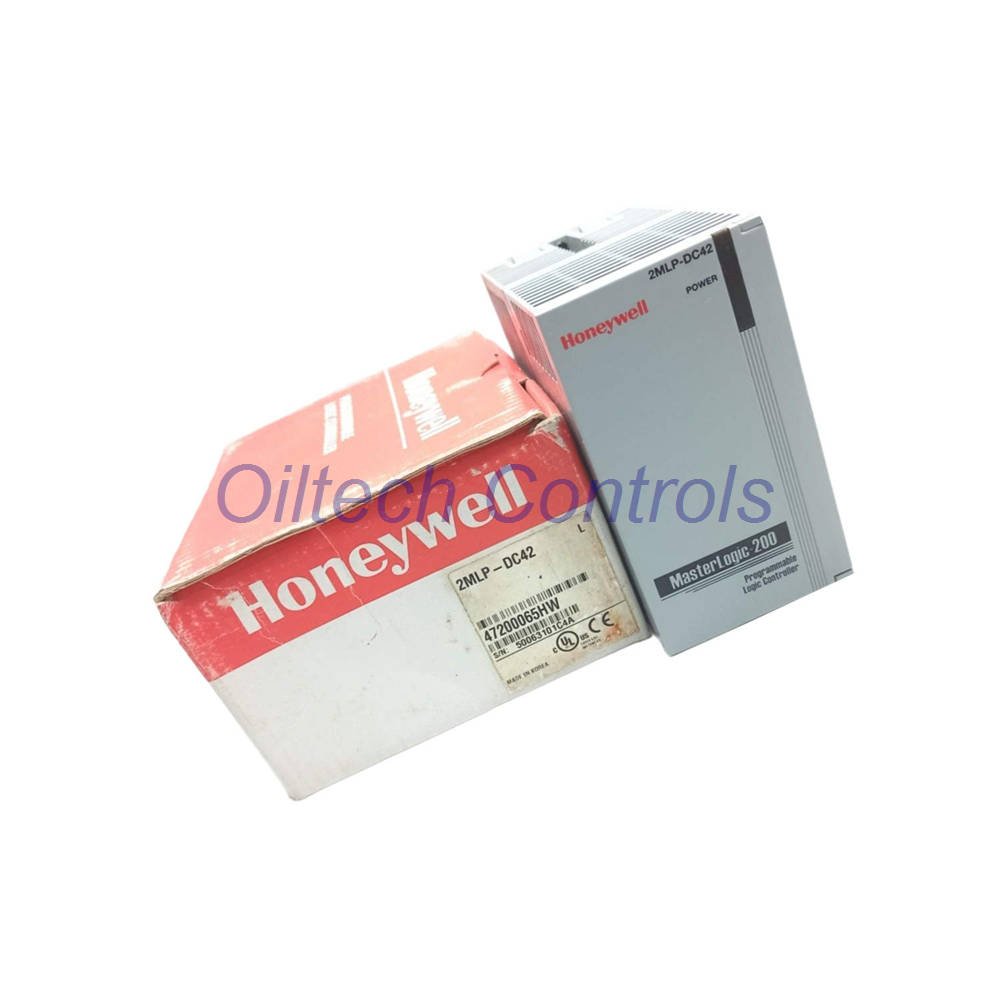

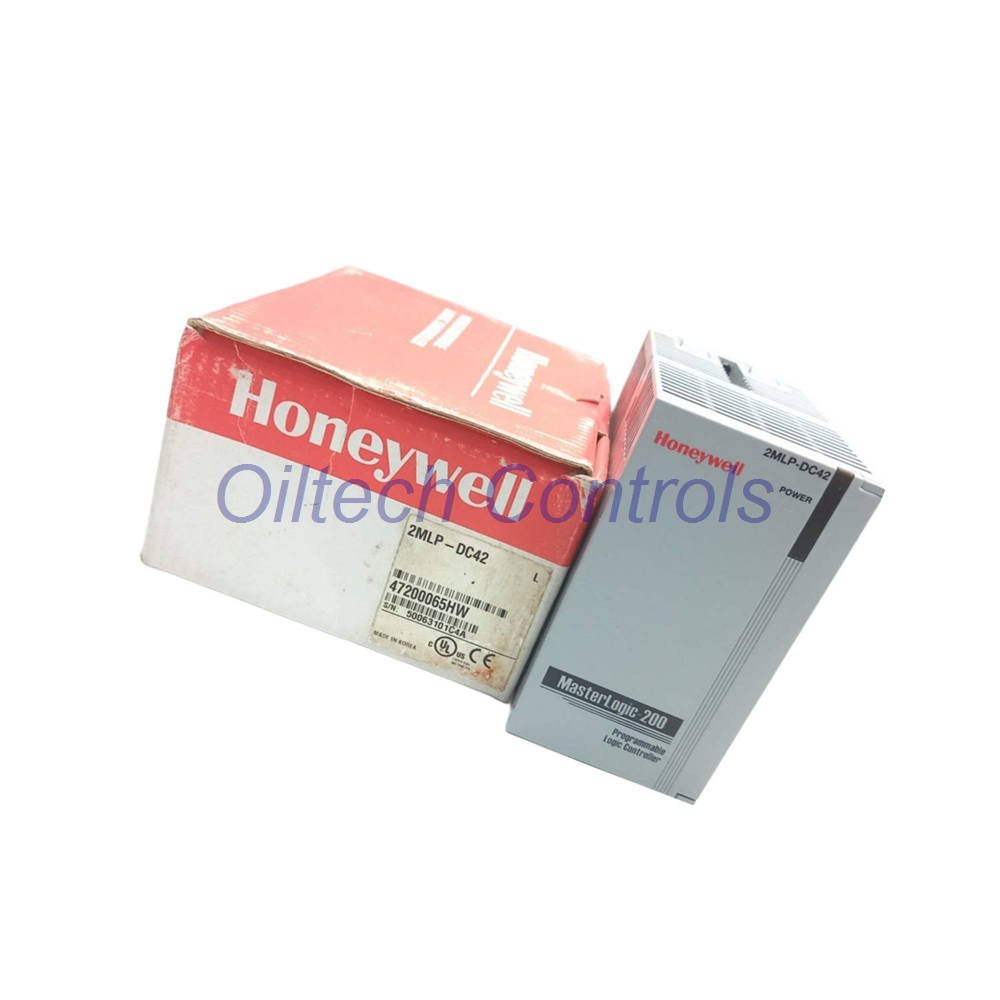

2MLP-DC42 Honeywell MasterLogic-200 Series High-Capacity Power Module

The 2MLP-DC42 serves as the primary energy backbone for the Honeywell MasterLogic-200 (ML200) PLC rack. This high-efficiency power supply converts a 24V DC nominal input into a stabilized 5V DC output to drive the backplane logic and CPU operations. Engineered for industrial resilience, the 2MLP-DC42 features an 80A peak inrush current tolerance and a built-in UL-standard slow-blow fuse. Its integrated RUN contact allows for external signaling of power status, ensuring that upstream systems remain synchronized with the PLC’s operational state.

Technical Engineering Matrix

• Input Characteristics: Rated DC 24V with an 80A peak inrush current limit.
• Output Performance: Stabilized DC 5V (±2%) providing up to 6.0A of logic power.
• Protection Circuitry: Over-current protection triggers at 6.6A; Over-voltage protection acts between 5.5V and 6.5V.
• Power Quality: Supports instantaneous interruptions of 10 ms or shorter without dropping logic.
• Conversion Efficiency: Delivers 60% or more efficiency under standard industrial loads.
• RUN Contact: Rated for DC 24V, 0.5A with a mechanical life of 20 million operations.
• Status Indication: Integrated LED indicates normal output voltage levels for rapid troubleshooting.
• Physical Interface: Compressed terminal block supporting cable gauges from 0.75mm to 2mm.
• Mechanical Build: Compact 0.5kg module designed for high-vibration control environments.

Backup Battery Performance

• Chemistry: Manganese dioxide lithium primary cell.
• Capacity Profile: Nominal DC 3.0V with an 1,800mAh rating.
• Operational Scope: Powers the Real-Time Clock (RTC) and secures program data during total power-off states.
• Dimensions: Standard φ 17.0 x 33.5mm form factor for easy replacement.
• Reliability: 5-year warranty period when maintained at standard ambient temperatures.

Oiltech Controls’ Insight & Review

• The 2MLP-DC42 is a critical component; we often see it used in remote telemetry units where 24V solar or battery power is the primary source.
• Engineers should prioritize this DC-input model over AC variants in high-noise environments to reduce electromagnetic interference on the backplane.
• The “Slow Blow” UL-standard fuse is highly effective at preventing nuisance trips during the initial 80A peak inrush phase.
• We recommend checking the battery voltage annually; although rated for 5 years, high-heat cabinets can accelerate discharge.
• The RUN contact is a vital safety feature; wire it to your master emergency circuit to ensure all field power drops if the PLC logic fails.
• For technical integration questions, email info@oiltechcontrols.com.

Target Systems & Compatibility

• Honeywell MasterLogic-200 (ML200) Series PLC Racks and Backplanes.
• Off-grid control systems using 24V DC battery banks or solar arrays.
• Critical infrastructure monitoring where 10ms interruption tolerance is mandatory.
• Remote I/O stations requiring local logic power with high-speed switching response.
• Industrial machinery with heavy mechanical cycling requiring long-life RUN relay contacts.

Global Logistics & Support

• Processing Time: Securely dispatched within 24-48 hours of order confirmation.
• Shipping Carriers: Express worldwide transit via Fedex, UPS, and DHL.
• Warranty: 12-month industrial guarantee included with every 2MLP-DC42 module.
• Instant Support: Contact our specialists via WhatsApp: +86 158 8020 0923.

Professional FAQ & Procurement Guide

• How do I troubleshoot a red or “OFF” voltage LED on the 2MLP-DC42?First, verify the 24V DC input at the terminals. If input power is present but the LED is off, the built-in UL fuse may have cleared due to an over-current event on the backplane.
• Can the internal fuse be replaced by the end-user?The 2MLP-DC42 features a built-in fuse designed for factory service only; users should not attempt to change it as it is an internal safety component.
• Why does the module allow for a 10ms interruption?This “hold-up time” allows the PLC to maintain logic integrity during brief voltage dips or when switching between redundant power sources.
• Selection Guide: When should I choose the DC42 over the AC-input versions?Choose the 2MLP-DC42 specifically when your cabinet power is derived from DC UPS systems or 24V industrial busbars to avoid extra inverters.
• What is the response time of the RUN contact during a fault?The RUN contact switches OFF in 12 ms or less, providing a fast signal to external safety relays if the 5V logic power fails.
