Bently Nevada 5mm Proximity Probe
Product Description

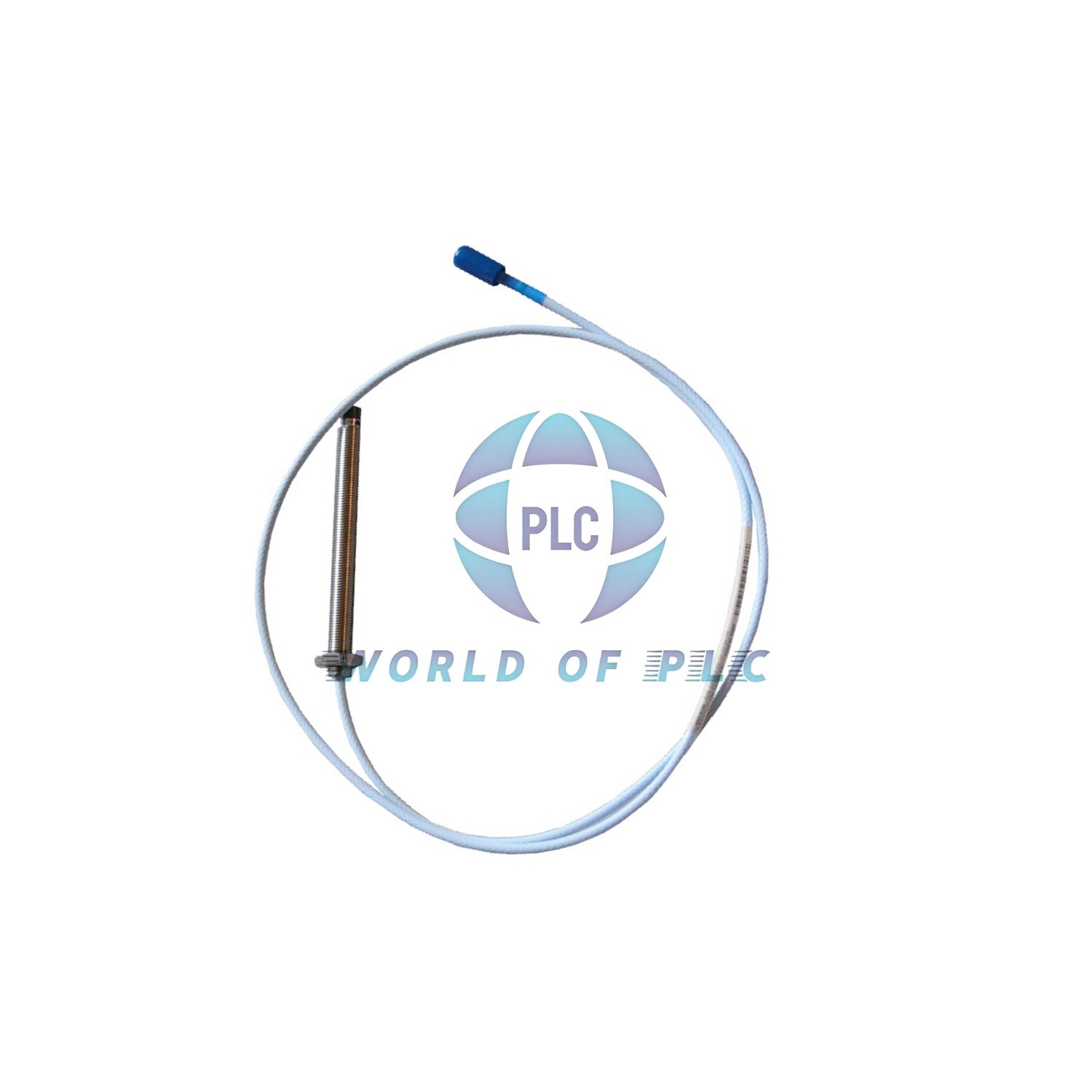

The Bently Nevada 330171-00-26-10-02-00 is a high-performance 5mm proximity probe designed for precise vibration and position monitoring. Featuring a 1/4-28 UNF threaded stainless steel case and a durable PPS probe tip, it ensures reliable operation in industrial environments. The probe includes a 1.0-meter cable with a Miniature Coaxial ClickLoc connector for secure connections.
Technical Data
- Brand: Bently Nevada
- Model: 330171-00-26-10-02-00
- Probe Type: 5mm, unarmored
- Thread: 1/4-28 UNF
- Unthreaded Length: 0 in (Option 00)
- Case Length: 2.6 in (Option 26)
- Cable Length: 1.0 m (Option 10)
- Connector: Miniature Coaxial ClickLoc (Option 02)
- Agency Approval: Not Required (Option 00)
Key Specifications
- Operating Voltage: -17.5 Vdc to -26 Vdc
- Output Resistance: 50 Ω
- Probe Resistance: 7.59 ± 0.50 Ω
- Temperature Range: -35°C to +177°C
- Tensile Strength: 222 N (50 lbf)
- Case Material: AISI 304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
Installation Guide
- Use a #3 or larger tap drill for mounting.
- Maximum thread engagement: 0.375 in.
- Recommended torque: 5.1 N·m (45 in·lb).
- Max torque: 7.3 N·m (65 in·lb).
- Minimum cable bend radius: 25.4 mm (1.0 in).
Compatibility
Works with Bently Nevada 3300 monitoring systems. Compatible with AISI 4140 steel targets.
Certification & Warranty
- 12-month warranty included.
- Made in the U.S.A.
Shipping Options
Fast worldwide delivery via FedEx, UPS, or DHL.
Packaging Includes
- 1 x Bently Nevada 330171-00-26-10-02-00 Probe
- Installation manual (if applicable)
