330172-00-12-50-01-CN | Bently Nevada 5mm Proximity Probe

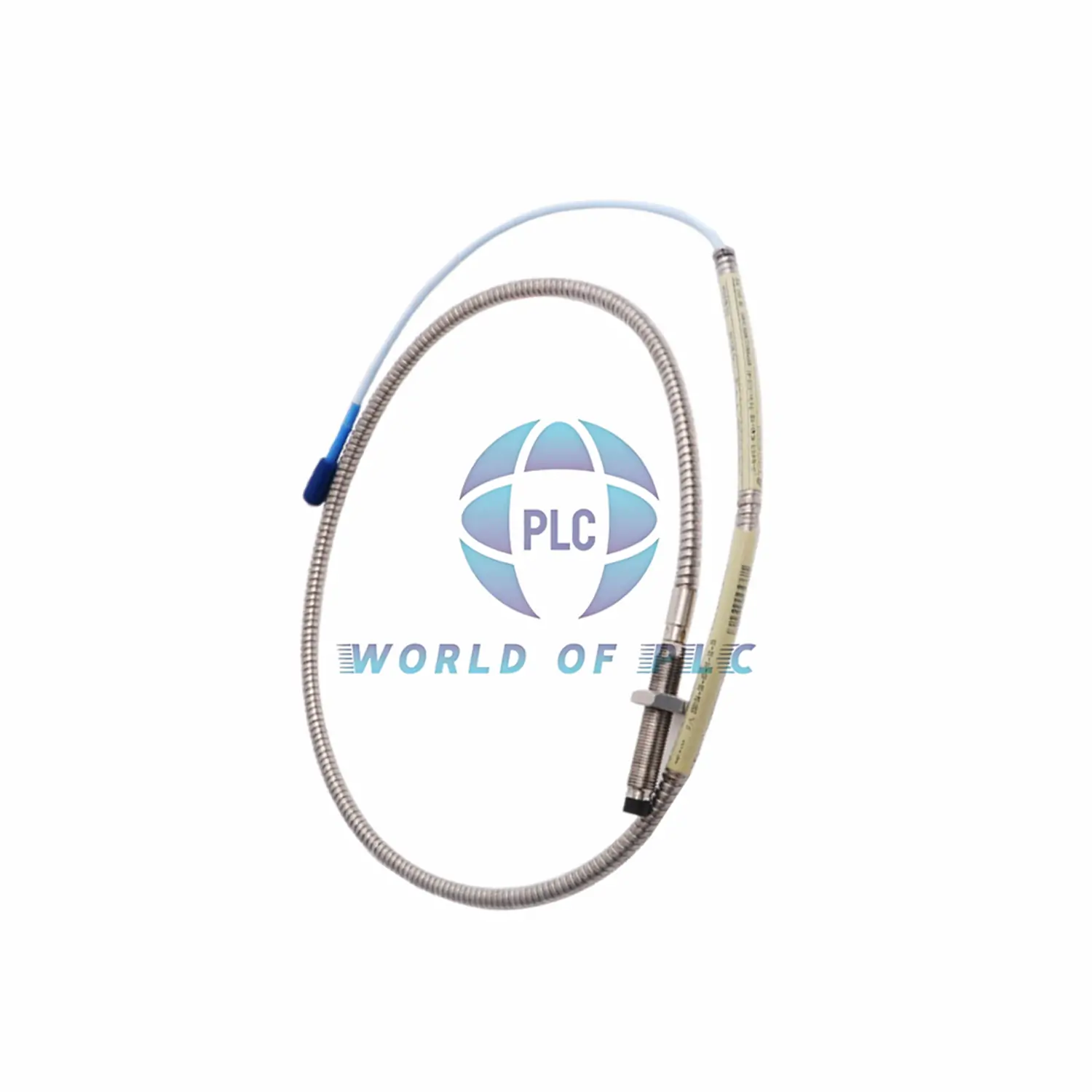

Bently Nevada 330172-00-12-50-01-CN Long-Reach Vibration Probe

Extended Length Industrial Monitoring Solution

• 📏 5-meter armored cable for flexible installation
• 🛡️ Protected ClickLoc connector (01 option)
• 🌍 Country-specific (CN) approvals included
• ❄️🔥 -35°C to +177°C operating range
• 🔧 Compact 1.2″ case for tight spaces

Decoding Model 330172-00-12-50-01-CN

 ┌────────────── Base Model: 330172 (5mm armored) ├─ 00 ──────── Unthreaded length: 0" ├─ 12 ──────── Case length: 1.2" ├─ 50 ──────── Cable: 5.0 meters ├─ 01 ──────── Connector: Protected ClickLoc └─ CN ──────── Country-specific approvals

Enhanced Technical Specifications

• Power Input: -17.5V to -26V DC
• Cable Resistance: 8.73Ω ±0.70 (5m length)
• Thread Spec: 1/4-28 UNF (Max 0.375″ engagement)
• Weight: 0.323 kg (with 5m cable)
• Insulation: FEP triaxial (75Ω)
• Response: <2mV/V supply variation

Smart Installation Tips

• 🔄 Maintain 1″ minimum bend radius
• ⚡ Use -24V DC power for optimal performance
• 🔧 Recommended torque: 45 in-lb (5.1 N·m)
• 📐 Set gap to 1.27mm (50 mils) from target
• 🛡️ Use connector protector in harsh environments

Professional FAQs

• Why choose 5m length? For installations requiring long cable runs
• What’s special about CN version? Meets regional compliance standards
• How does length affect performance? Slightly higher resistance (8.73Ω vs 7.59Ω)
• Can I use in outdoor applications? Yes, within temperature limits
• Connector protector benefits? Prevents damage in high-vibration areas

Package & Support

• 📦 1× 330172-00-12-50-01-CN vibration probe
• 🛡️ 12-month product assurance
• 🚀 Fast global shipping options
