330173-00-04-20-02-05 Bently Nevada 3300 XL 5mm Proximity Probe Genuine New

Product Overview

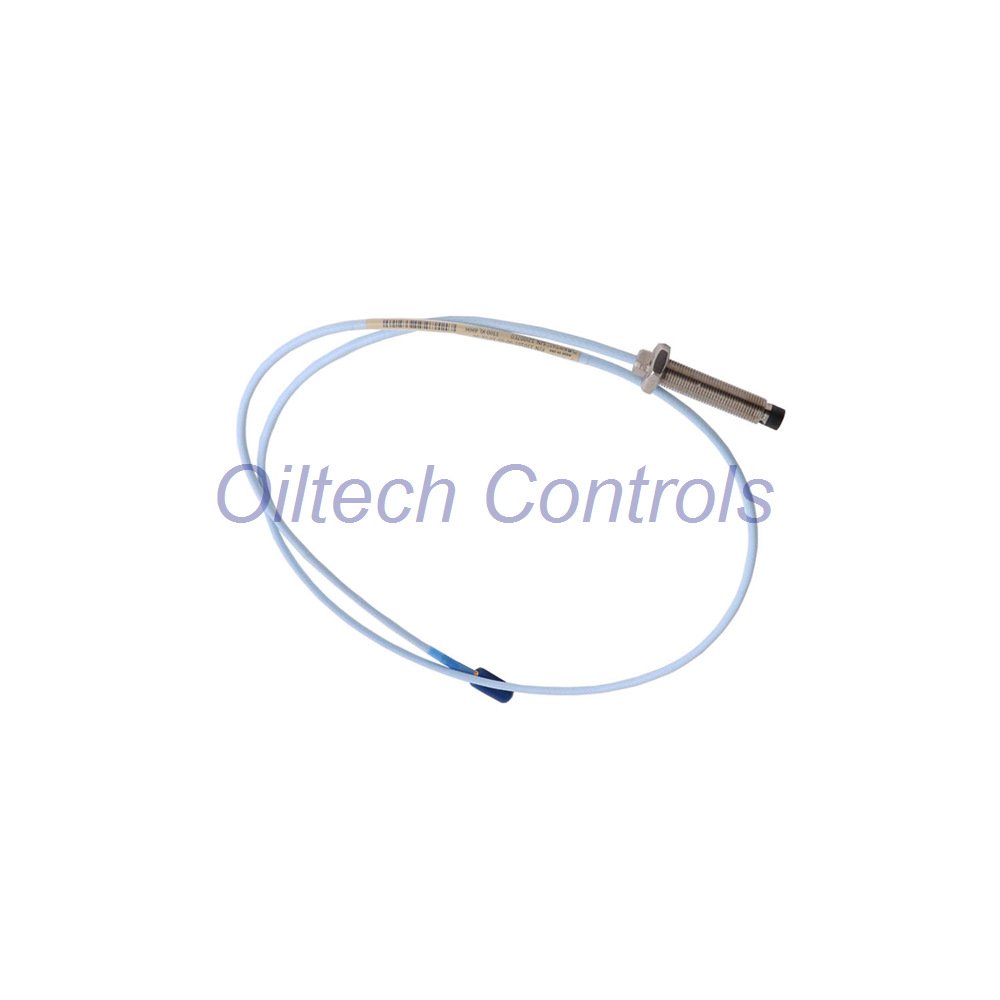

• The 330173-00-04-20-02-05 is a high-precision Bently Nevada 3300 XL 5mm Probe.
• It utilizes Eddy Current technology for non-contacting vibration and position measurements.
• Engineered with an M8 x 1 threaded AISI 304 Stainless Steel case for durability.
• Equipped with a ClickLoc miniature coaxial connector for secure, reliable signal transmission.
• This USA-made sensor is built to withstand extreme industrial temperatures up to +177°C.

Configuration Breakdown

• 330173 ─ [3300 XL 5mm Probe, M8 x 1 Thread]
  • └── 00 ─ [Unthreaded Length: 0 mm]
    • └── 04 ─ [Overall Case Length: 40 mm]
      • └── 20 ─ [Total Length: 2.0 Meters / 6.6 Feet]
        • └── 02 ─ [Connector: Standard Miniature Coaxial ClickLoc]
          • └── 05 ─ [Agency Approval: Multiple Approvals (ATEX, IECEx, CSA)]

Technical Specifications

• Brand: Bently Nevada
• Model: 330173-00-04-20-02-05
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Output Resistance: 50 Ω (Center to Outer Conductor: 7.88 ± 0.50 Ω)
• Input Voltage: -17.5 Vdc to -26 Vdc (Nominal -24 Vdc)
• Magnetic Field Sensitivity: 0.0014 Mil/Gauss (at 50 mil gap)
• Tensile Strength: 222 N (50 lbf) maximum pull strength.
• Bend Radius: Minimum 25.4 mm (1.0 inch) for cable safety.
• Thread Torque: Recommended 5.1 N·m (45 in·lb) for secure mounting.
• Protection: Pressure-sealed tip with FEP insulated triaxial cable.

Oiltech Controls Limited’s Insight

• The 330173-00-04-20-02-05 is the “Gold Standard” for radial vibration in small bore machinery.
• Unlike larger 8mm probes, the 5mm tip allows for closer mounting in tight clearances.
• The ClickLoc connector prevents accidental disconnection due to high-frequency machine vibration.
• We recommend this 2.0-meter version for applications where Proximitors are in nearby junction boxes.
• This specific 330173-00-04-20-02-05 configuration offers maximum mechanical stability with zero unthreaded length.

Target Applications & Diagnostics

• Radial Vibration: Monitoring shaft movement in high-speed centrifugal compressors.
• Axial Position: Tracking thrust bearing wear in steam or gas turbines.
• Target Compatibility: Calibrated for AISI 4140 Steel targets.
• Diagnostic Capability: Provides Gap Voltage readings to determine physical clearance status.
• Environmental Tolerance: High resistance to corrosive oil and high-pressure fluids.

Logistics & Quality Assurance

• Warranty: Guaranteed 12-month replacement period for any manufacturing defects.
• Shipping Methods: Global express delivery via FedEx, UPS, and DHL.
• Handling: Dispatched in original anti-static packaging with factory inspection.

Professional FAQ

• Question: Why is the unthreaded length (00) important for this M8x1 model?Answer: A zero unthreaded length ensures maximum thread engagement for superior stability in housings.
• Question: Can I connect this 2.0-meter probe directly to a 5-meter extension cable?Answer: No. A 2.0-meter probe must pair with an 8.0-meter extension cable for a 10-meter system.
• Question: What happens if I torque the probe case beyond 7.3 N·m?Answer: Excessive torque can deform the case or crack the PPS tip seal.
• Question: How does the “Agency Approval 05” benefit my facility?Answer: It carries multiple global certifications (ATEX/IECEx/CSA) for international safety compliance.
• Question: Selection Guide: How do I choose between the 5mm and 8mm probes?Answer: Choose the 5mm 330173 if mounting space is restricted or the target area is under 13mm.
