330194-15-25-50-05 Bently Nevada 3300 XL 8mm Probe In Stock Fast Delivery

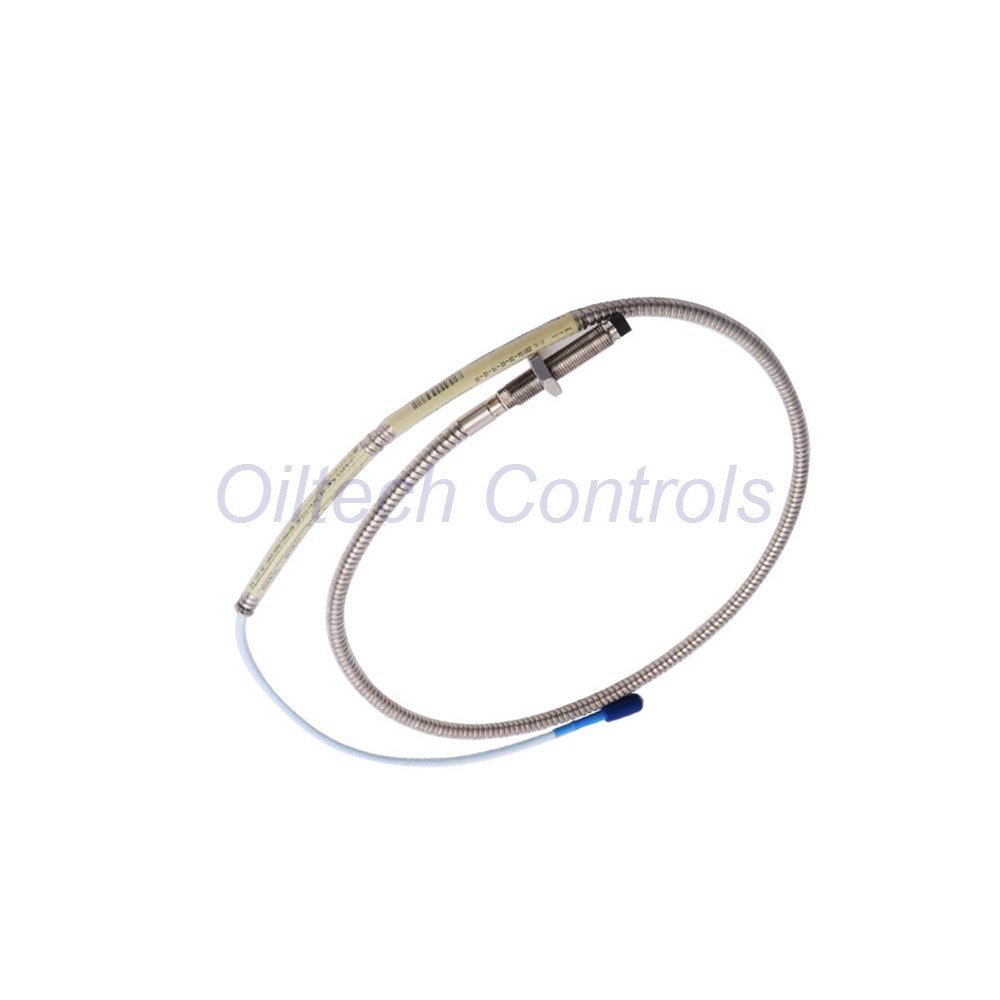

330194-15-25-50-05 Bently Nevada 3300 XL Proximity Probe

Maximize your machinery uptime with the Bently Nevada 330194-15-25-50-05. This 3300 XL 8mm Proximity Probe offers superior vibration and position monitoring for critical assets. It features a rugged design to resist physical abuse in harsh industrial environments.

Configuration Breakdown

The 330194-15-25-50-05 model uses a specific indented hierarchy for precise equipment matching:

• 330194: 3300 XL 8mm Probe, M10 x 1 Thread, Stainless Steel Armor
  • -15: 150 mm Unthreaded Length
    • -25: 250 mm Overall Case Length
      • -50: 5.0 Meters Total System Length
        • -05: CSA, ATEX, and IECEx Multi-Agency Approvals

Technical Data and Performance

Experience high-precision sensing with these core specifications:

• Brand: Bently Nevada
• Model: 330194-15-25-50-05
• System Compatibility: Designed for 5-meter Proximitor sensors only
• Sensitivity: Standard 3.94 V/mm (100 mV/mil) for 8mm systems
• Power Requirement: -17.5 Vdc to -26 Vdc supply voltage
• DC Resistance: 8.73 Ohms nominal (center to outer conductor)
• Operating Temperature: -55°C to +232°C for peak thermal resistance
• Material Construction: PPS plastic tip with 303/304 Stainless Steel case
• Pull Strength: 330 N (75 lbf) maximum rated tensile strength
• Pressure Seal: Integrated Viton O-ring for differential pressure sealing
• Magnetic Field Resistance: Minimal output shift in 300 Gauss environments

Manager’s Insight

The 330194-15-25-50-05 represents a major upgrade in probe durability. The TipLoc molding prevents tip detachment during high-vibration events. I recommend the 8mm version over smaller probes for its thicker PPS encapsulation. It withstands physical handling much better during routine maintenance. This specific configuration with Stainless Steel Armor is essential for oily or abrasive turbine environments.

Applications and Compatibility

This probe integrates seamlessly with various industrial rotating machinery:

• Steam and gas turbine radial vibration monitoring
• Thrust position measurements in centrifugal compressors
• Fluid-film bearing clearance analysis
• Hydroelectric generator shaft vibration
• Compatibility: Requires 3300 XL 5m Extension Cable and 5m Proximitor Sensor

Installation and Maintenance Guidance

• Thread Engagement: Ensure a maximum of 15 mm thread depth
• Connector Care: Do not exceed 0.565 N·m torque on connectors
• Oil Protection: Use FluidLoc cable options to prevent internal oil leaks
• Safety: Always use barriers for installation in hazardous areas

Purchase and Shipping Information

• Condition: 100% Brand New and Original Factory Packing
• Warranty: 12 Months Factory Warranty
• Delivery Time: In Stock – Dispatched within 12 to 48 hours
• Shipping Partners: Global express via FedEx, UPS, and DHL
• Packaging: Secured in original Bently Nevada protective boxes

FAQ and Selection Guide

• How do I choose between 5-meter and 9-meter systems?
• Match the probe length to your Proximitor sensor calibration. A 5-meter probe must use a 5-meter sensor for accurate linearity.
• What is the benefit of the Stainless Steel Armor?
• The armor protects the FEP cable from sharp edges and mechanical pinching during installation.
• Can I use this probe without an extension cable?
• No, this 5-meter model requires a specific extension cable to meet system electrical parameters.
• Is this probe rated for explosive atmospheres?
• Yes, the -05 option provides CSA, ATEX, and IECEx certifications for hazardous zones.
