330903-00-04-10-02-00 | Bently Nevada 3300 NSv Proximity Probe

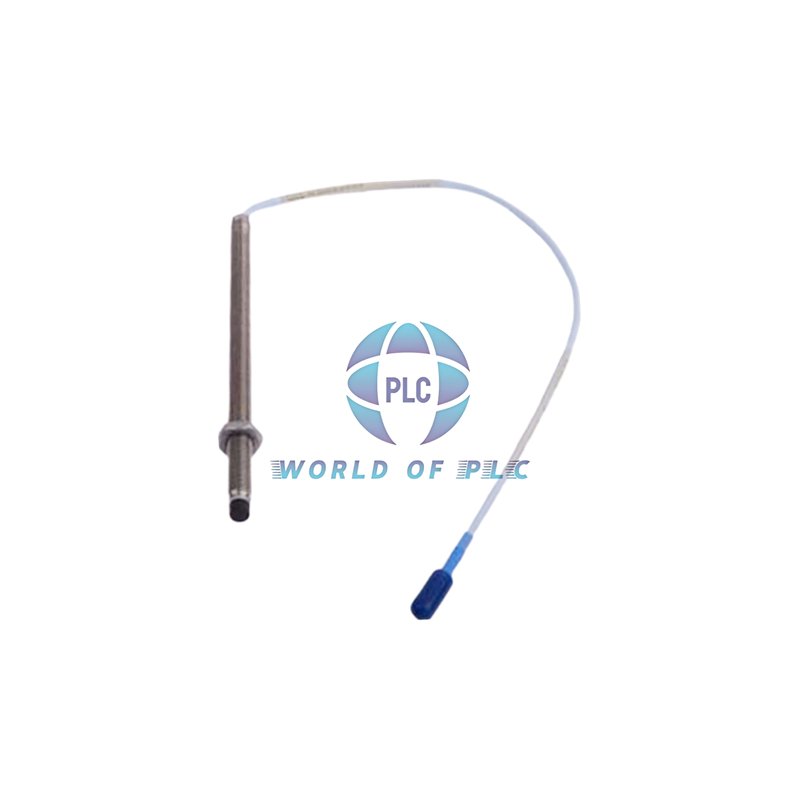

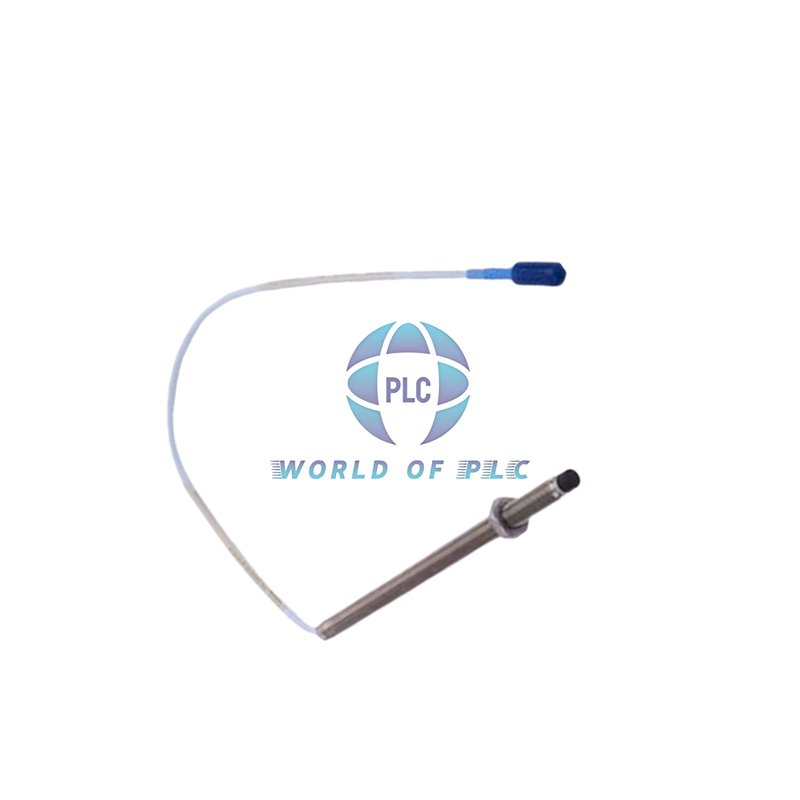

Bently Nevada 330903 NSv Proximity Probe: Extended Reach Precision

Experience extended monitoring capabilities with the Bently Nevada 3300 NSv Proximity Probe featuring a 1.0 meter cable for flexible installation. This industrial-grade sensor delivers exceptional performance without agency certifications for universal applications. Download the complete technical manual for comprehensive specifications and installation guidance.

Configuration Details

• 330903: Base model (M8X1 thread, no armor)
• -00-: Unthreaded section (00 mm length)
• -04-: Standard case length (40 mm overall)
• -10: Extended cable option (1.0 meter length)
• -02: Connector type (Miniature coaxial ClickLoc)
• -00: Certification status (No approvals required)

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 NSv
• Measurement Range: 1.5 mm (60 mils) linear span
• Optimal Gap Setting: 1.0 mm (40 mils) from target
• Sensitivity: 7.87 V/mm (200 mV/mil)
• Linearity: Better than ±0.06 mm (±2.3 mils)
• Frequency Response: 0 to 10 kHz (±3 dB)
• Electrical Resistance: 4.2 ± 0.5 Ω (1.0m probe)
• Temperature Range: -52°C to +177°C operational
• Target Size: Minimum 8.9 mm (13 mm recommended)
• Case Material: AISI 304 stainless steel
• Tip Material: Chemical-resistant PPS polymer
• Cable Length: 1.0 meter (39 inches) extended reach
• Sealing System: Viton O-ring pressure seal

Package Contents

• One Bently Nevada 3300 NSv proximity probe
• Miniature coaxial ClickLoc connector
• 1.0 meter standard cable assembly
• Protective connector cover
• Original manufacturer packaging

Shipping Information

• Global delivery via FedEx, UPS, and DHL
• Express shipping options available
• Quick order processing within 24 hours

Frequently Asked Questions

• Q: What advantage does the 1.0 meter cable provide?
  A: The extended cable offers greater installation flexibility in complex machinery layouts.
• Q: Is this probe compatible with existing systems?
  A: Yes, the 3300 NSv maintains full compatibility with previous 3300 RAM systems.
• Q: Does this version require special certifications?
  A: No, this model operates without specific agency approvals for universal use.
