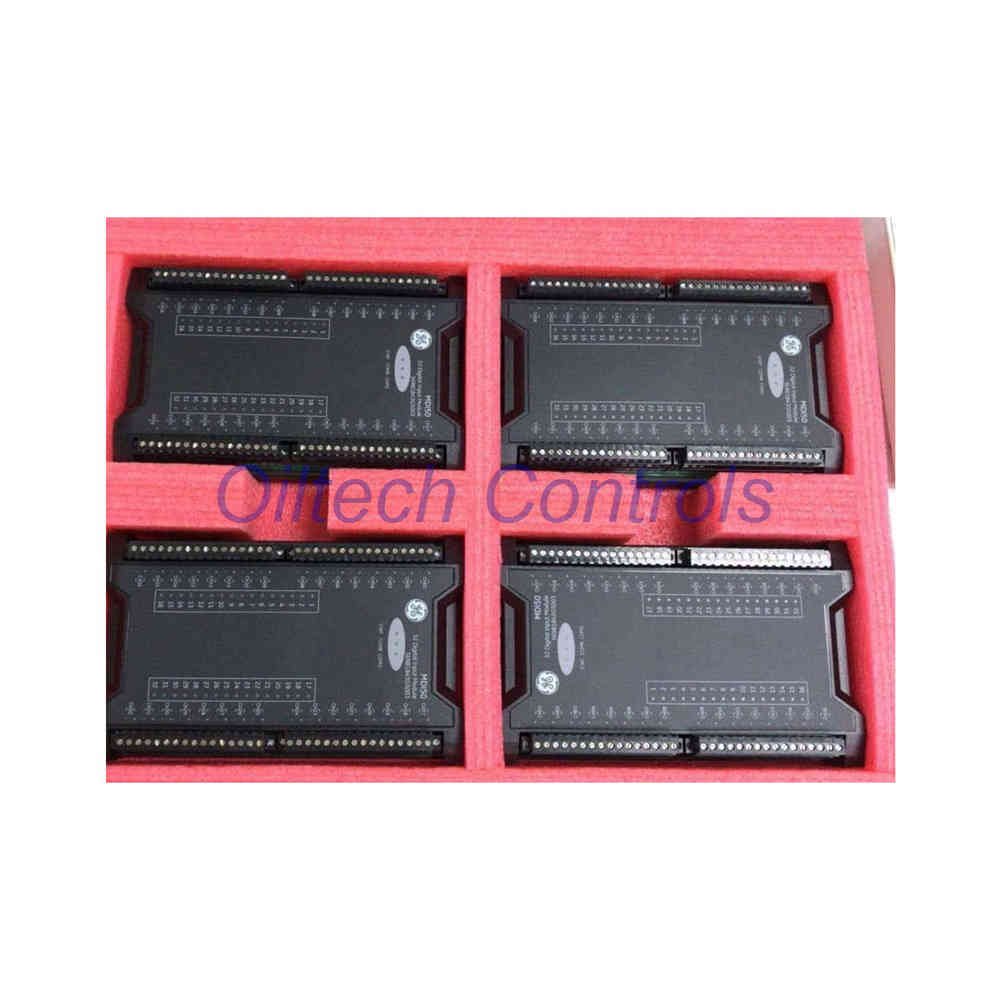

369B1841G5006 GE Nexus MAI50 Analog Input Module 16-Channel

Product Overview

The 369B1841G5006 by GE Nexus is a robust 16-channel analog input module from the MAI50 series. Engineered for industrial XDPS systems, this card delivers high-precision signal acquisition with redundant power architecture for maximum process uptime.

Technical Performance Highlights

• Signal Versatility: Supports ±10V, ±5V, and 0(4)-20mA input ranges.
• Conversion Precision: 16-bit A/D resolution with a maximum measurement error of only 0.1%.
• Robust Isolation: Features 250VAC channel-to-channel and 1500VAC channel-to-system isolation.
• Noise Rejection: Superior signal integrity via >120dB common-mode and >60dB differential-mode rejection.
• Data Handling: Built-in 32-bit embedded processor for high-speed, real-time data throughput.

Engineering & Environmental Resilience

• Redundant Power: Dual 24V DC (±10%) input with 1:1 redundancy for continuous operation.
• Physical Specs: Compact 209×129.5x51mm design; utilizes secure screw-mount installation.
• Durability: Vibration resistant up to 500Hz; handles harsh particulate environments (<18,000 particles/L).
• Certified Safety: Fully compliant with CFR 47 FCC Part 15, IEC 61000 series, and CE standards.
• Maintenance: Equipped with removable European-style terminal blocks for rapid field replacement.

Oiltech Controls’s Insight: System Integration

• Ideal Applications: Perfectly suited for power plant automation, petrochemical desulfurization, and water management infrastructure.
• Diagnostics: Integrated LED suite provides instant visual status of operations, communication, and fault conditions.
• Technical Support: Need expert advice? Contact info@oiltechcontrols.com or message our team on WhatsApp +86 158 8020 0923.

Professional FAQ & Selection Guide

• Q: Why choose this redundant 369B1841G5006 model?
  A: The 1:1 power redundancy and 1500VAC isolation are critical for continuous operations in high-stakes environments where signal stability is non-negotiable.
• Q: Does this module handle mixed signals?
  A: Yes, it is highly versatile, supporting voltage and current inputs, making it an excellent consolidated choice for complex control panels.
• Q: Is the alarm threshold configurable?
  A: Yes, the module uses software-defined alarms (excluding ±10V mode), allowing for flexible logic customization.
• Q: How do I ensure correct installation?
  A: Utilize the provided screw-mount interface with 2.5mm² wiring to guarantee optimal signal path longevity.
• Q: Can it operate in noisy environments?
  A: With >120dB common-mode rejection, it is specifically hardened to maintain accuracy near high-frequency motor drives and switching equipment.
