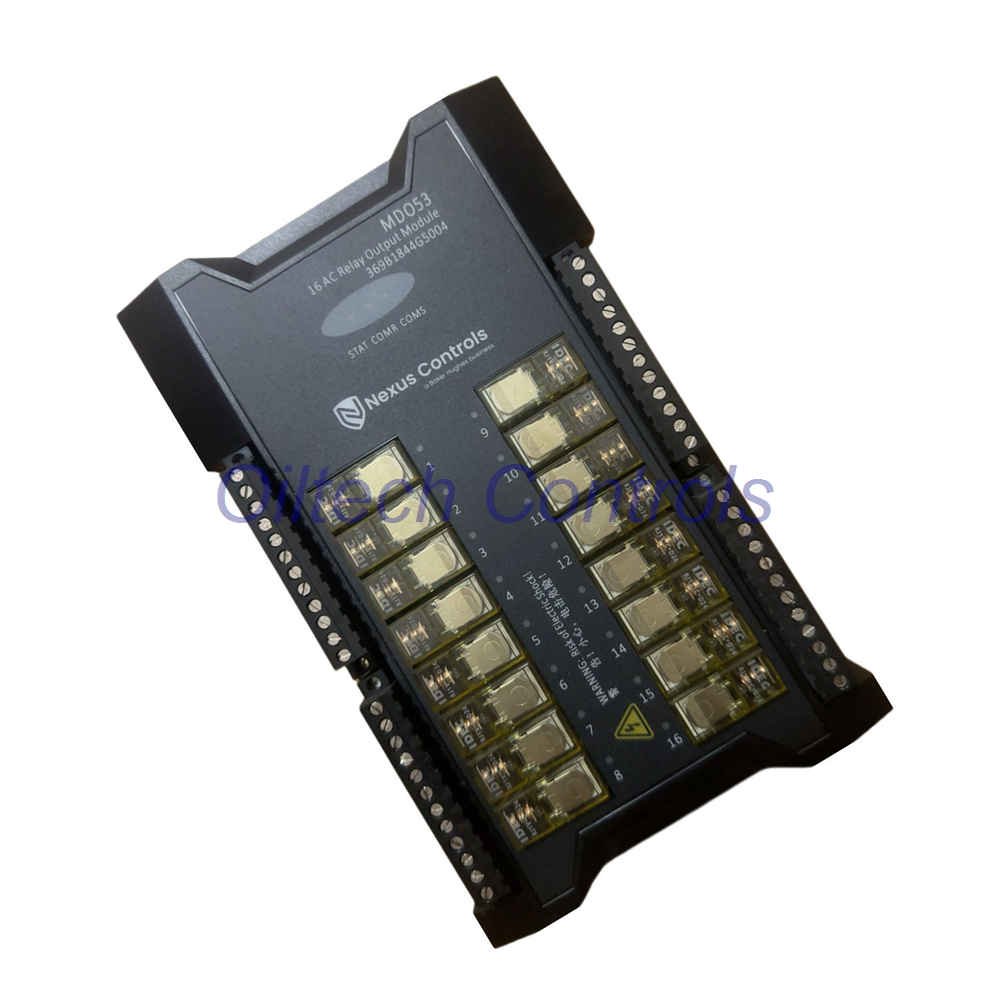

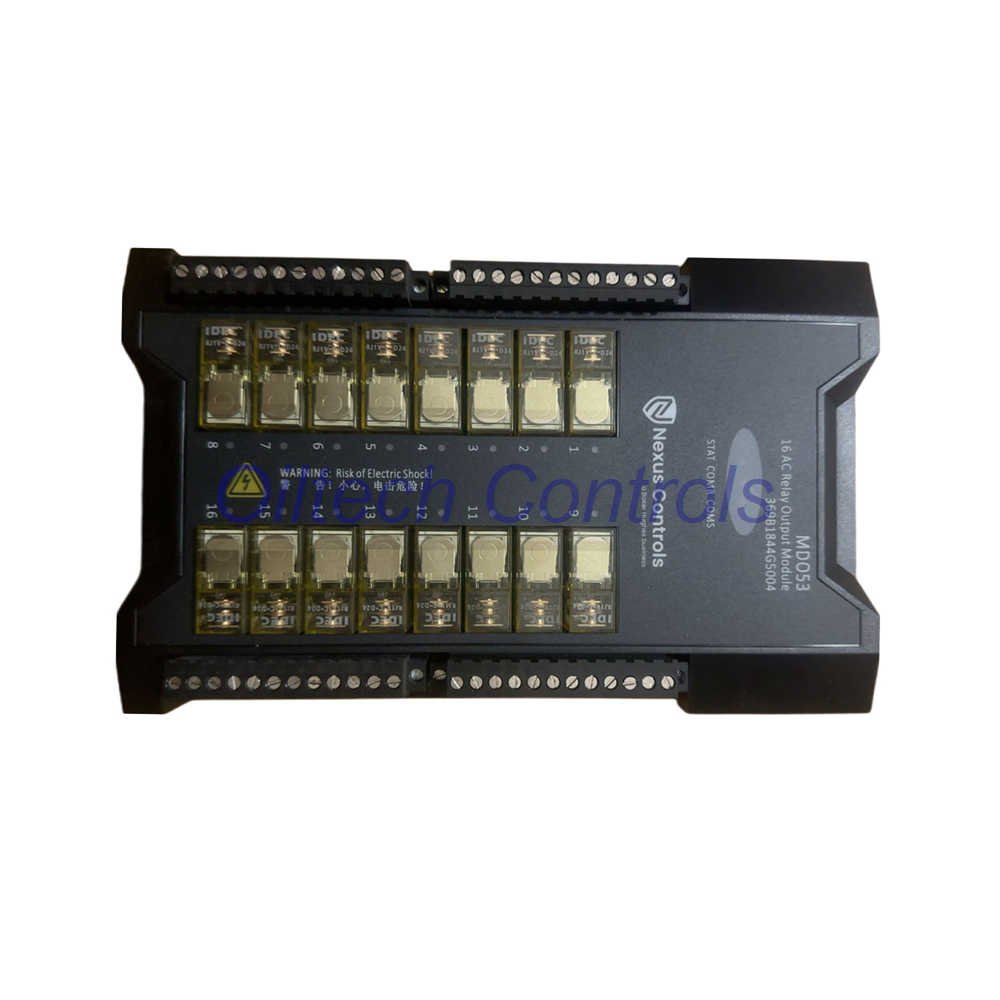

369B1844G5004 GE MDO53 Nexus Digital Output Module PLC

Engineering Specification Sheet

Looking for technical specifications and direct procurement details? The technical layout below covers the 369B1844G5004 GE Nexus MDO53 Digital Output Module.

The operational limits and physical properties for the 369B1844G5004 module are outlined below:

Oiltech Controls’s Insight

• Field Inductive Spike Protection: The relay contacts on the 369B1844G5004 withstand high switching cycles, but driving inductive coils (solenoids, contactors) directly degrades contact life without external RC snubbers or flyback diodes.
• High-Density Isolation Layer: The module provides exceptional protection against field faults, utilizing 2500VAC isolation between output channels and local earth ground.
• Thermal Management in Enclosures: While the base idle consumption sits low at 1.3W, full 16-channel energization raises board thermal dissipation up to 11W, requiring clear vertical airflow inside dense control racks.
• Troubleshooting Diagnostic Speed: Dedicated individual relay state LEDs reduce diagnostic time by separating physical mechanical contact failure from field circuit wiring faults.

Target Systems and Machinery Compatibility

• GE Nexus Control Platforms: Serves as a direct drop-in expansion or replacement module for main logic racks running MDO53 digital output blocks.
• Turbine Auxiliary Switching: Drives heavy-duty interlocks, motor starter coils, and lubrication pump contactors requiring high AC current tolerance.
• Power Generation Substation Control: Controls sequence alarm annunciation and high-voltage circuit breaker command loops safely under high isolation standards.
• Heavy Process Automation: Manages pneumatic valves, heating elements, and conveyor solenoids across manufacturing and chemical processing plants.

Global Logistics, Dispatch Speed, and Warranty Protection

• Fast Order Processing: Units undergo pre-shipment bench testing and dispatch within 24 to 28 hours after payment confirmation.
• Express Global Carrier Network: Shipped worldwide via express air delivery services using FedEx, UPS, and DHL with complete tracking transparency.
• 12-Month Hardware Guarantee: Every 369B1844G5004 module includes a full 12-month warranty against component defect or premature operational failure.
• Protective Packaging: Units ship enclosed inside anti-static ESD shielding bags with custom impact-absorbing foam frames.

Frequently Asked Questions (FAQ)

• Q: What is the main load difference when switching inductive vs resistive loads with the 369B1844G5004?
  A: Resistive loads permit continuous currents up to 12A at 250VAC or 30VDC, whereas inductive loads must be derated down to 7.5A at 250VAC and 6A at 30VDC due to back-EMF arc generation during contact separation.
• Q: How can field engineers diagnose whether an output channel issue is software or hardware based?
  A: Observe the individual channel LED. If the channel LED lights up green but the external relay load does not switch, inspect the external relay contact circuit or fuse. If the system run LED flashes a fault pattern while channel LEDs stay dark, check the backplane 24VDC logic power rail.
• Q: Can I mix AC and DC voltages across different channels on the same 369B1844G5004 card?
  A: Yes, because channels feature 1000VAC inter-channel isolation. However, field safety regulations recommend maintaining consistent voltage levels across adjacent terminal groups to prevent wiring cross-talk during service.
• Q: What selection factors should I evaluate before buying a replacement MDO53 module?
  A: Verify your required load switching profile, check backplane firmware revision compatibility, and ensure your panel layout supports the board physical size (49 cm length) with adequate passive thermal clearance.
• Q: What causes relay contacts to weld closed, and how can this be prevented on this module?
  A: High inrush current spikes from capacitive circuits or unsuppressed solenoid coils can cause contact welding. Installing external arc suppressors or MOV surge protection directly across field loads extends the internal relay lifetime significantly.
