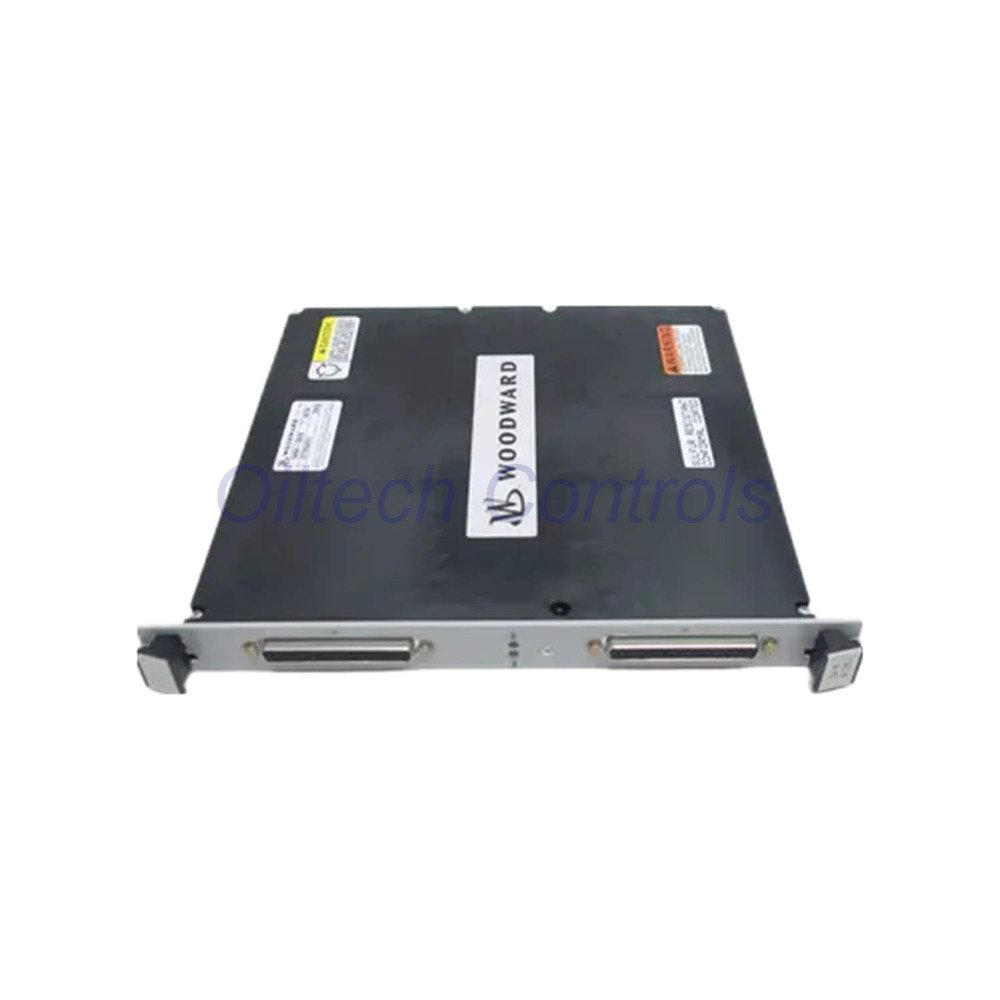

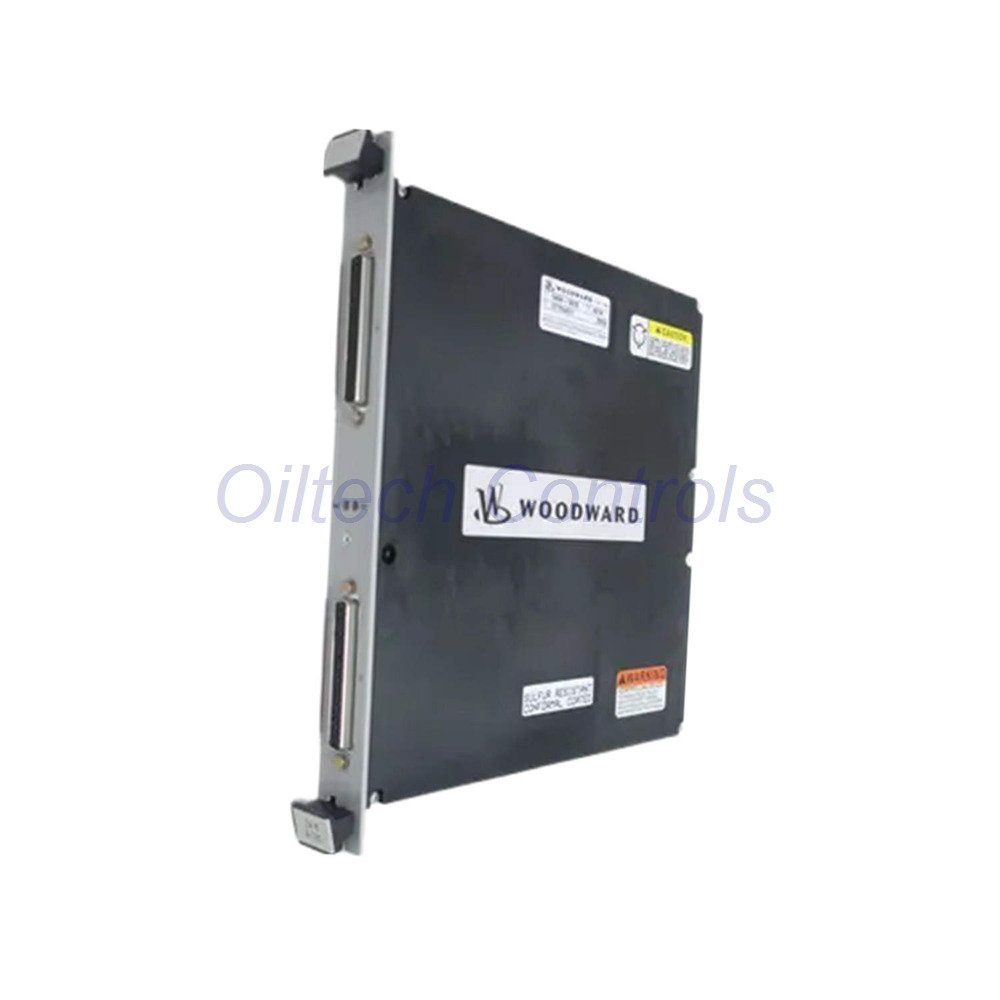

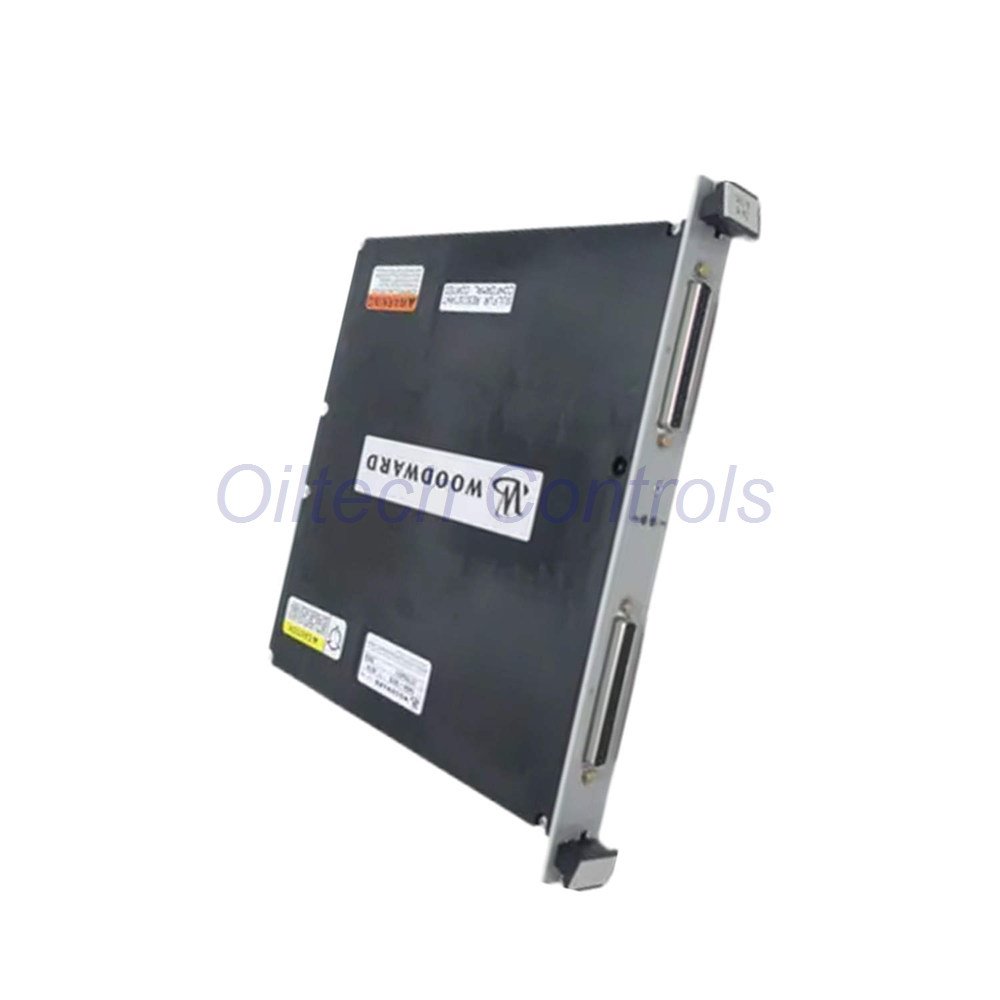

5466-5026 Woodward MicroNet High-Density Analog I/O Module

Product Brief

The 5466-5026 is a professional-grade Woodward MicroNet Simplex High-Density Analog I/O module. It streamlines complex turbine and engine control by integrating 24 high-precision inputs and 8 robust analog outputs into a single chassis slot. Engineered for high-vibration and extreme temperature environments, the 5466-5026 ensures seamless data acquisition via Dataforth isolation technology.

Oiltech Controls’ Insight

• Engineered specifically for MicroNet Simplex architectures to maximize I/O density in compact spaces.
• The 5466-5026 is backward compatible with legacy part number 5466-332 for seamless retrofits.
• Utilizes Dataforth plugin technology to block unwanted voltages and maintain factory-calibrated precision.
• Features an advanced LED flash-code diagnostic system for rapid identification of CPU or memory faults.
• Optimized for high-altitude operations up to 4000 meters without performance derating.

Technical Specifications

• Brand: Woodward Inc.
• Model Number: 5466-5026
• Input Array: 24 Channels (0-5 V or 0-25 mA via Dataforth plugins)
• Output Array: 8 Channels (4-20 mA) for actuator and valve control
• AD Converter: 16-bit resolution ensures superior signal integrity for sensitive loops
• Accuracy: ≤ 0.1% at 25 °C with minimal temperature drift (100 ppm/K)
• Isolation: Differential inputs featuring ±150 V DC electrical safety limits
• Operating Temperature: -25 °C to +70 °C (Cold start capable at -40 °C)
• Power Consumption: 75 mA via 5 V DC backplane supply
• EMC Immunity: Level 4 Surge and Burst protection per IEC 61000-4-4/5

System Compatibility & Application

• Fits Woodward MicroNet Simplex Chassis system card guides.
• Connects to Field Transition Modules (FTM) via two high-density cables.
• Supports RTU560 backplane environments with 48-pole type F connectors.
• Ideal for steam turbine governors and large reciprocating engine control arrays.
• Applicable in industrial power generation synchronization and process automation.

Shipping & Service Terms

• Fast Dispatch: Guaranteed shipping within 24-28 hours of order.
• Global Logistics: Reliable express delivery via Fedex, UPS, and DHL.
• Warranty: Includes a full 12-month quality guarantee on all 5466-5026 units.
• Technical Inquiries: info@oiltechcontrols.com
• Instant Support: WhatsApp: +86 158 8020 0923

Professional FAQ

• How do I identify a memory failure versus a configuration error on the 5466-5026?
  Observe the ERR LED; 3 flashes indicate flash memory failure, while 13 flashes indicate a parameter mismatch.
• Can this module be used in a Redundant (Duplex) MicroNet system?
  No, the 5466-5026 is designed strictly for Simplex High-Density configurations.
• What is the benefit of the Dataforth configuration for the 24 inputs?
  It allows for superior voltage blocking and utilizes a 200 Ohm resistor for precise calibrations.
• Is this module hot-swappable in a running system?
  While physically possible, always consult your Woodward CPU documentation to avoid accidental system trips.
• Selection Guide: Why upgrade to the 5466-5026?
  Choose this if you require 24 signals in a single slot with high-density cabling requirements.

For detailed wiring diagrams and setup:
Please follow the links below to download the Woodward 5466-5026 instruction manual and FTM mapping guides.
