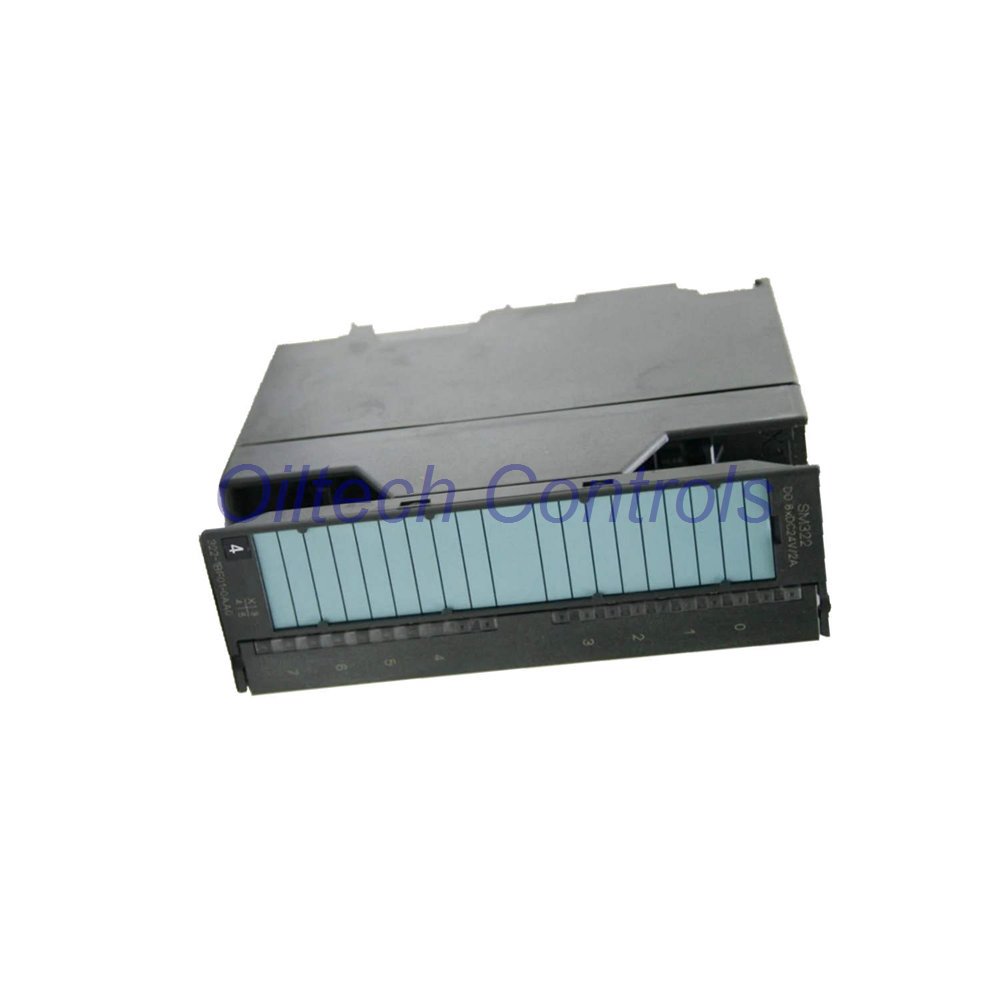

6ES7322-1BF01-0AA0 Siemens SIMATIC S7-300 Digital Output Module

Product Overview

• Oiltech Controls presents the Siemens 6ES7322-1BF01-0AA0 digital output module for your automation needs.
• This SM 322 module offers 8 reliable digital outputs to control various industrial devices efficiently.
• The design includes robust optocoupler isolation to ensure signal integrity and protect your controller.
• Contact us at info@oiltechcontrols.com for technical support or specific application questions.
• Reach our team instantly via WhatsApp if you need immediate assistance with your purchase.

Core Technical Specifications

• Brand: Siemens
• Model: 6ES7322-1BF01-0AA0
• Rated Voltage: 24V DC input range from 20.4V to 28.8V.
• Output Capacity: 8 channels, each capable of handling 2A continuous current.
• Power Consumption: Maximum 6.8W power loss during standard rated operation.
• Isolation Type: Optocoupler isolation between channels and the system backplane bus.
• Switching Frequency: Up to 100 Hz for resistive loads or 0.5 Hz for inductive loads.

Installation and Environment Requirements

• Mount this module in a horizontal or vertical position within your control cabinet.
• Ensure operating temperatures remain within the limits to maintain the 4A group current.
• Use the required 20-pin front connector to establish secure field wiring connections.
• Keep shielded cable runs under 1,000 meters to prevent signal degradation.
• Maintain unshielded cable runs below 600 meters for optimal performance reliability.

Shipping and Handling

• We provide worldwide shipping services using reliable carriers like FedEx, UPS, and DHL.
• The package includes the Siemens 6ES7322-1BF01-0AA0 module and the standard installation instructions.
• Our logistics team packs every unit securely to prevent damage during international transit.
• Please verify your shipping address details when you confirm your final order checkout.
• For bulk shipment inquiries, please contact our sales office at info@oiltechcontrols.com.

Frequently Asked Questions

• Can I use this module for high-speed switching applications?
  The module handles resistive loads up to 100 Hz, but avoid exceeding this limit.
• Does this module include built-in diagnostic alarms for wire breaks?
  No, this specific model lacks channel-level diagnostic functions or wire-break monitoring.
• How should I select the right load for this specific output?
  Ensure your load resistance stays between 12 Ω and 4 kΩ for stable performance.
• Is it necessary to use a specific front connector type?
  Yes, you must use the standard 20-pin front connector for all field wiring connections.
• What is the best way to handle inductive loads safely?
  Limit inductive switching to 0.5 Hz and use external suppression diodes when necessary.
