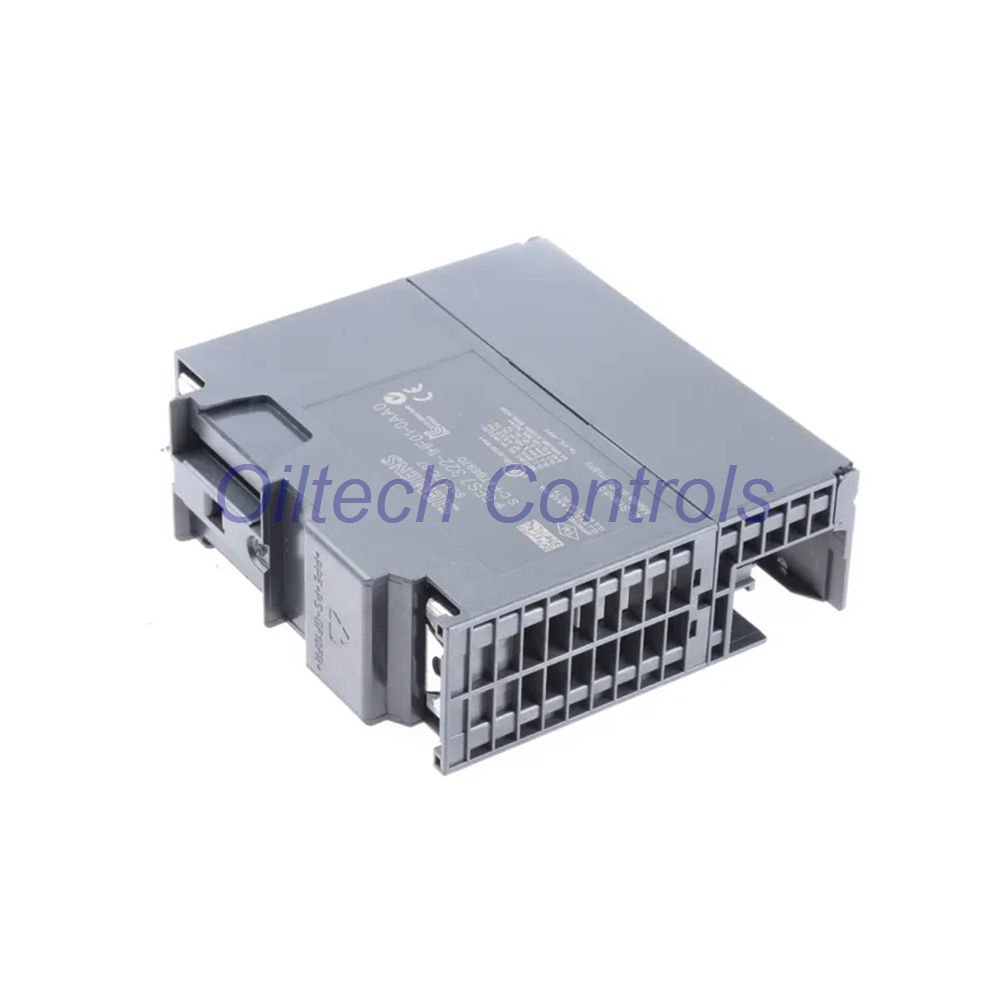

Product Overview: Siemens 6ES7322-1HF01-0AA0
- Oiltech Controls proudly offers the 6ES7322-1HF01-0AA0 for reliable switching in S7-300 systems.
- This digital output module manages up to 8 independent relay circuits for industrial loads.
- Engineers trust the 6ES7322-1HF01-0AA0 for its high isolation and versatile voltage compatibility.
- The module integrates seamlessly into existing SIMATIC S7-300 backplanes for rapid deployment.
Technical Specifications
- Brand: Siemens
- Model: 6ES7322-1HF01-0AA0
- Output Type: 8 Relay Outputs (Optically Isolated)
- Supply Voltage: 24V DC rated value for relay coils.
- Switching Capacity: Supports 2A at 230V AC or 2A at 24V DC.
- Operating Cycles: Offers up to 300,000 cycles at 24V DC / 2A load.
- Switching Frequency: Handles 2Hz for resistive loads and 10Hz for mechanical operation.
- Physical Dimensions: Compact 40mm width with a total weight of 190 grams.
Installation & Connectivity
- Connect the module using a standard 20-pin front connector for secure wiring.
- Maintain signal integrity with shielded cables up to 1,000 meters in length.
- Use unshielded cables for shorter runs up to 600 meters in low-noise environments.
- Ensure the 24V DC L+ supply connects correctly to power the internal relay coils.
- Monitor individual channel status via the integrated green LED indicators on the front panel.
Packaging & Logistics
- We ship the product in secure, shock-absorbent industrial-grade protective packaging.
- Our team processes all international orders via reliable carriers: FedEx, UPS, or DHL.
- Contact Oiltech Controls via email at info@oiltechcontrols.com for shipping inquiries.
- Reach our support team on WhatsApp by clicking +86 158 8020 0923 for assistance.
Frequently Asked Questions
- What is the minimum load current required for the relay contacts?
The system requires a minimum load current of 5mA to maintain reliable contact closure. - Can I use this module for high-frequency pulse switching?
No, the mechanical nature of these relays limits resistive switching to a maximum of 2Hz. - Does this module include built-in diagnostic alarms for wire breaks?
This specific model does not support diagnostic alarms or wire-break detection features. - Why should I choose this relay module over a transistor output module?
Relays provide physical potential separation and handle higher AC voltages compared to standard transistors. - How do I manage the group-based output structure?
The 8 outputs operate in groups of 2, allowing for flexible circuit partitioning per application.
