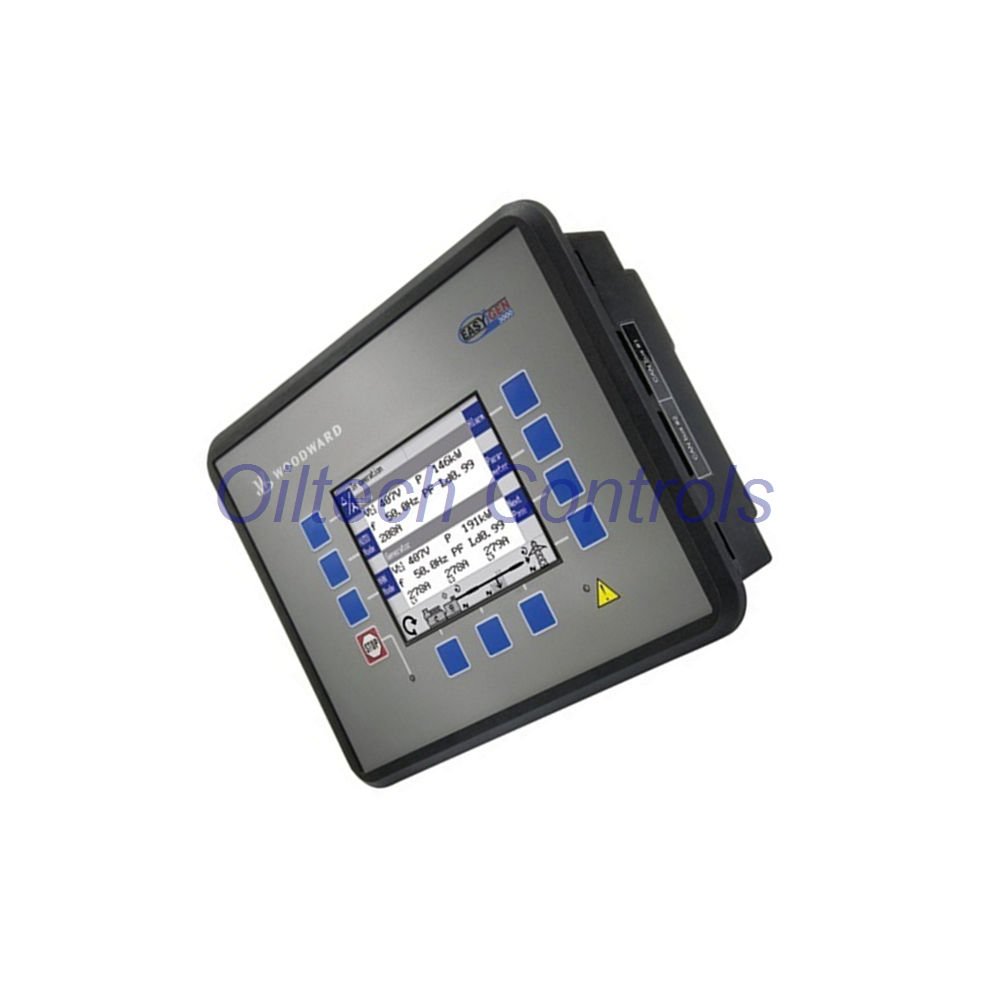

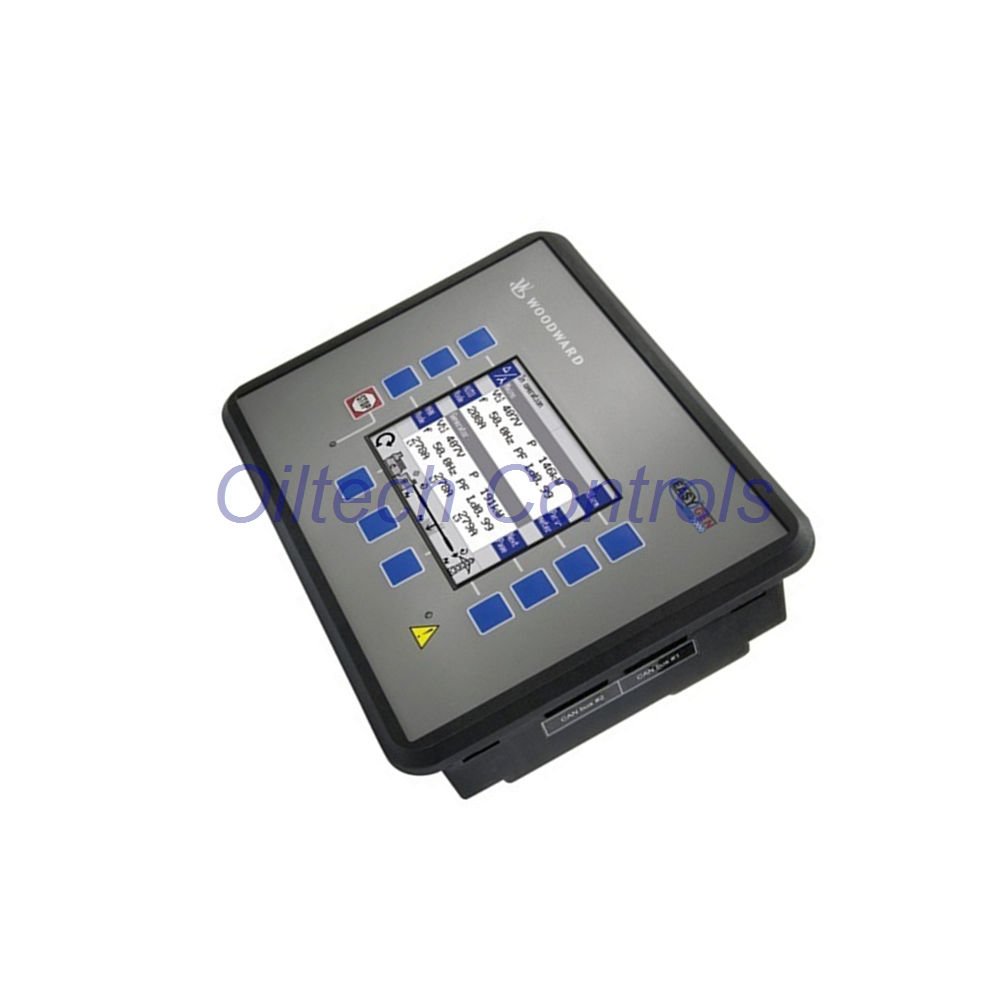

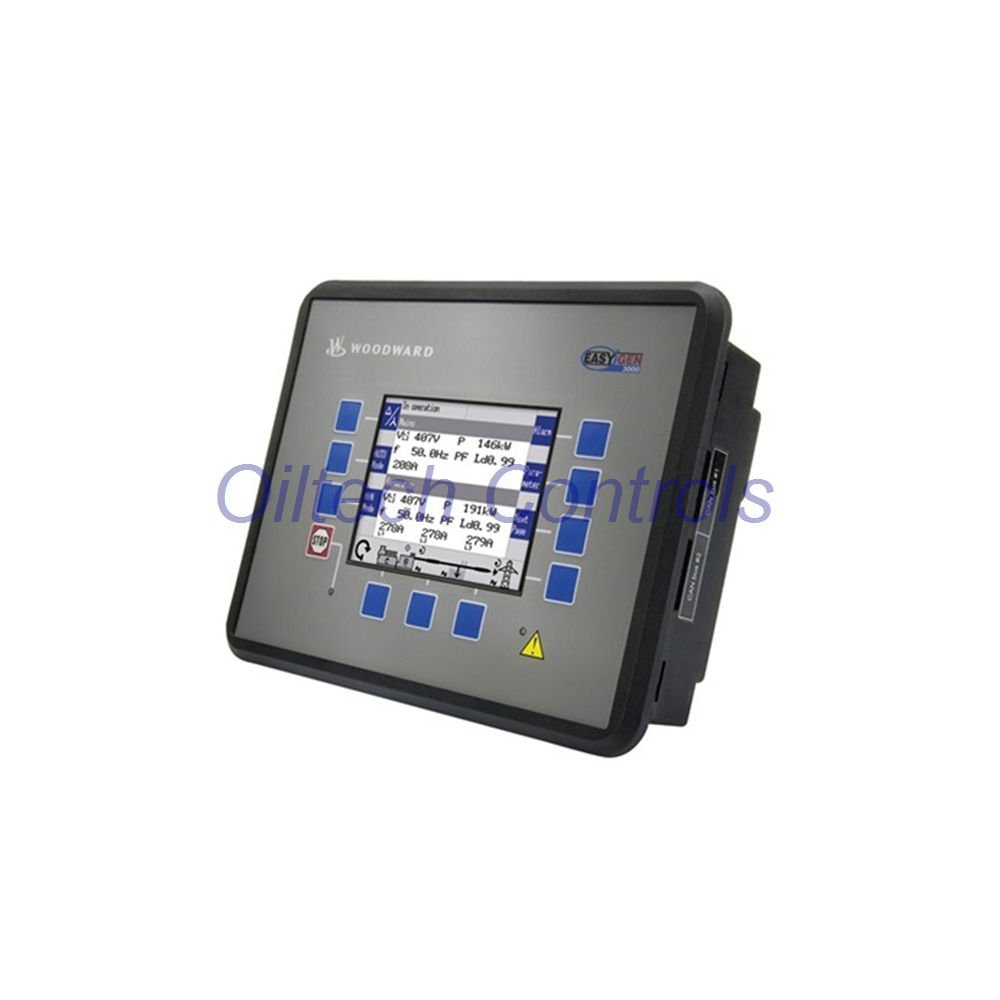

8440-2046 Woodward easYgen-3500-1 Marine Controller

Product Overview

• 8440-2046 belongs to the Woodward easYgen-3000 controller family for marine generator applications.
• This controller supports synchronization, load sharing, and emergency generator operation in offshore systems.
• The module delivers Class 0.5 accuracy for reliable marine power management.
• The flush-mounted structure includes a large back-lit LCD display with sealed soft-key operation.
• Woodward designed this controller for harsh marine environments requiring stable long-term operation.
• Author: Oiltech Controls

Technical Specifications

• Brand: Woodward
• Model: 8440-2046
• Series: easYgen-3000
• Controller Type: easYgen-3500-1 Marine Controller
• Accuracy Class: 0.5
• Measuring Frequency: 50/60 Hz (40–85 Hz)
• Current Setting Range: 1–32,000 A
• Operating Temperature: -40°C to 70°C
• Ambient Humidity: 95% non-condensing
• Weight: Approximately 1,850 g
• Communication: Single communication link between generator and PMS system
• Marine Approvals: GL, BV, DNV, LR, ABS
• Additional Certifications: BV & DNV for easYgen-3500-1/P1-MARINE configuration

Main Features

• The integrated LogicsManager supports advanced logic programming and flexible control functions.
• The controller handles synchronization and load sharing across multiple generator systems.
• The module communicates with up to sixteen LS-5 load sharing controllers.
• The LCD interface allows direct local operation without additional remote display equipment.
• The multilingual interface improves operation efficiency for international engineering teams.
• Supported languages include English, German, French, Chinese, Japanese, Italian, Portuguese, Russian, Slovak, and Polish.
• The dual breaker feedback monitoring system improves operational safety during generator switching.

Application Areas

• The controller manages emergency standby generators installed on marine vessels and offshore platforms.
• Marine engineers use this module for synchronized generator operation and power distribution management.
• The easYgen platform supports fuel-efficient load-dependent generator operation.
• The rugged design tolerates vibration, humidity, and temperature changes in offshore environments.
• Woodward developed this controller for marine automation systems requiring continuous power stability.

Installation Guidelines

• Install the controller inside a clean and ventilated electrical control cabinet.
• Keep communication wiring away from strong electromagnetic interference sources.
• Use shielded cables for stable PMS and generator communication signals.
• Verify current and voltage configuration before system commissioning begins.
• Check breaker feedback wiring carefully before synchronization and load-sharing operation.
• Maintain operating temperatures within specified limits for stable long-term performance.

Engineering Advantages

• The controller maintains accurate current measurement across wide operating load conditions.
• The wide frequency response range supports standard and variable marine generator frequencies.
• The rugged housing design improves durability in demanding offshore environments.
• The interface structure simplifies commissioning and troubleshooting processes for engineers.
• The integrated logic engine reduces external PLC programming requirements.

Package Contents

• 1 × Woodward 8440-2046 Marine Controller
• 1 × Mounting accessories set
• 1 × Product operation guide
• 1 × Industrial protective packaging box
• Shipping methods include FedEx, UPS, and DHL international delivery services.

FAQ

• Can this controller operate generators manually?
  Yes. The built-in LCD display and soft-key interface support direct local operation.
• Does this model support marine synchronization applications?
  Yes. The controller supports synchronization and load sharing for marine generator systems.
• How many LS-5 modules can connect with this controller?
  The controller communicates with up to sixteen LS-5 load sharing modules.
• What makes this controller suitable for marine applications?
  Marine certifications and rugged construction improve reliability in offshore environments.
• Which users commonly select this controller?
  Marine engineers, shipbuilders, and offshore automation integrators frequently select this model.
• What should buyers confirm before purchasing?
  Buyers should verify communication compatibility and synchronization system requirements carefully.
• Does the controller support multiple languages?
  Yes. The interface supports ten international operating languages for global engineering teams.
