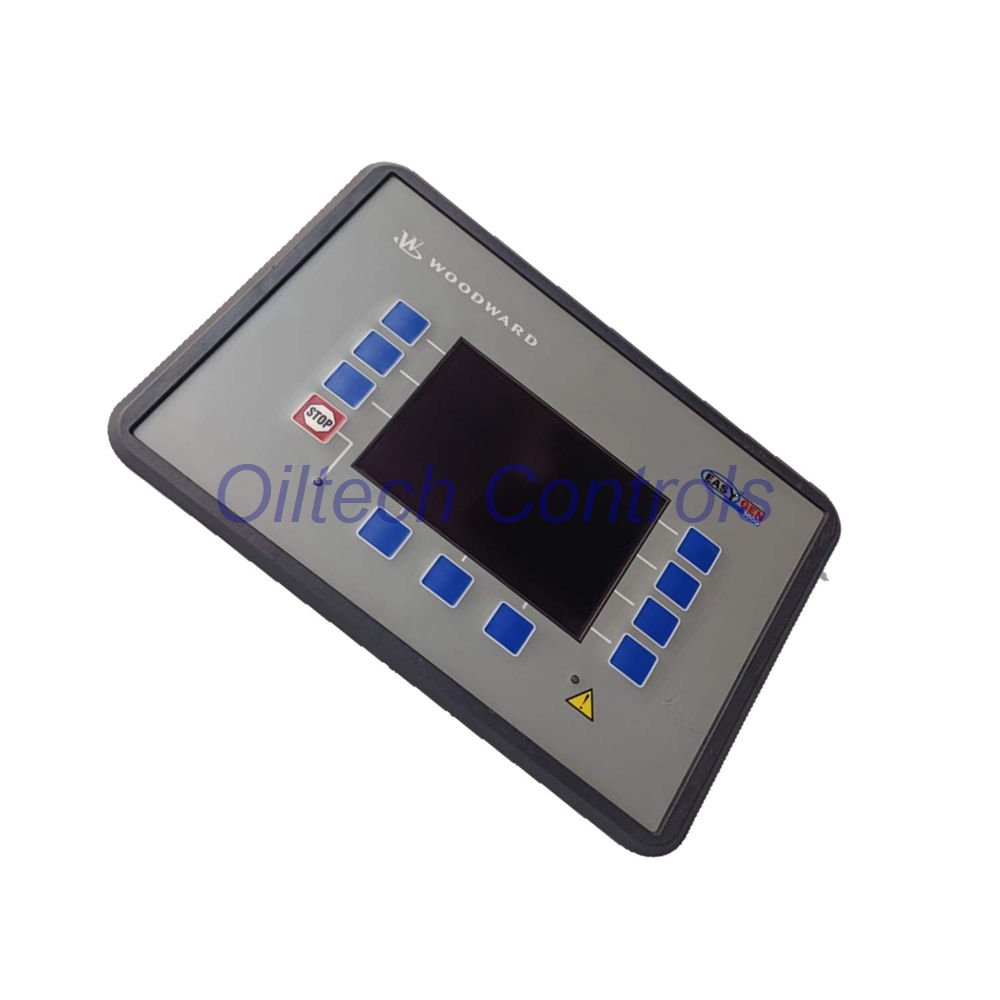

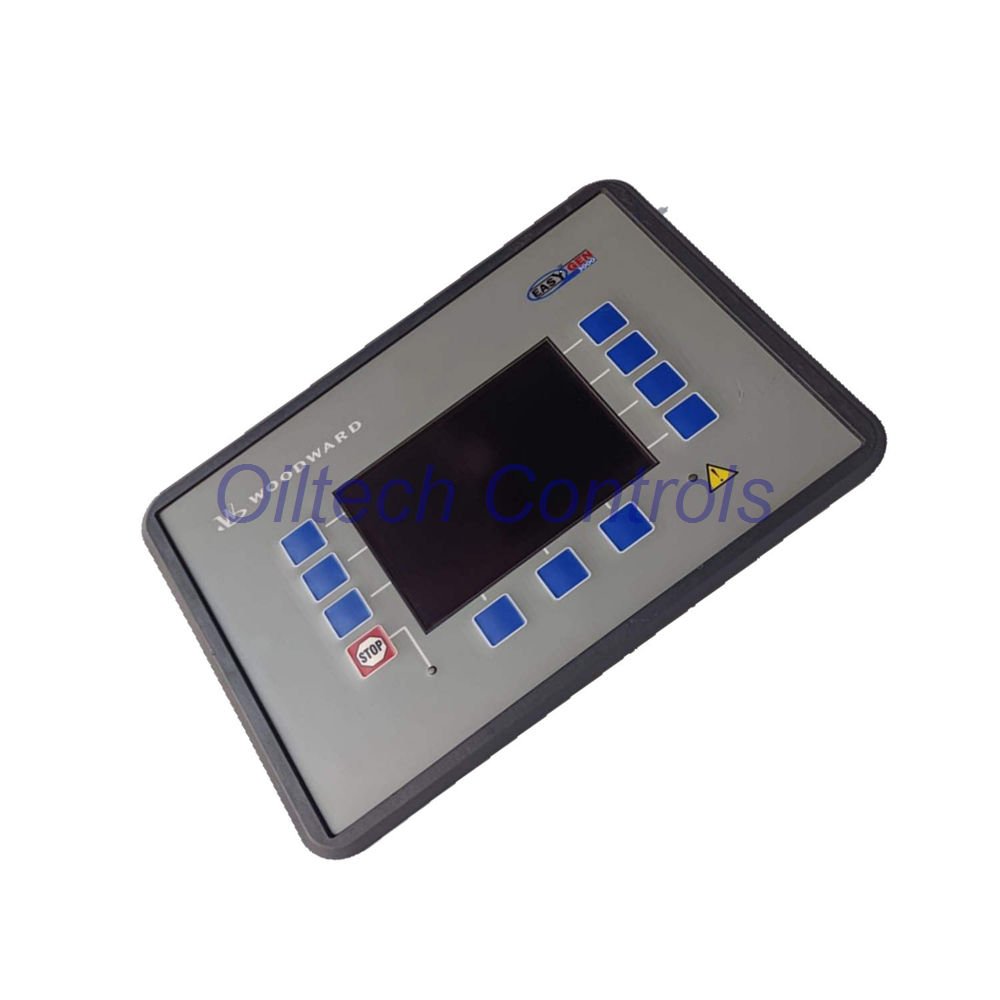

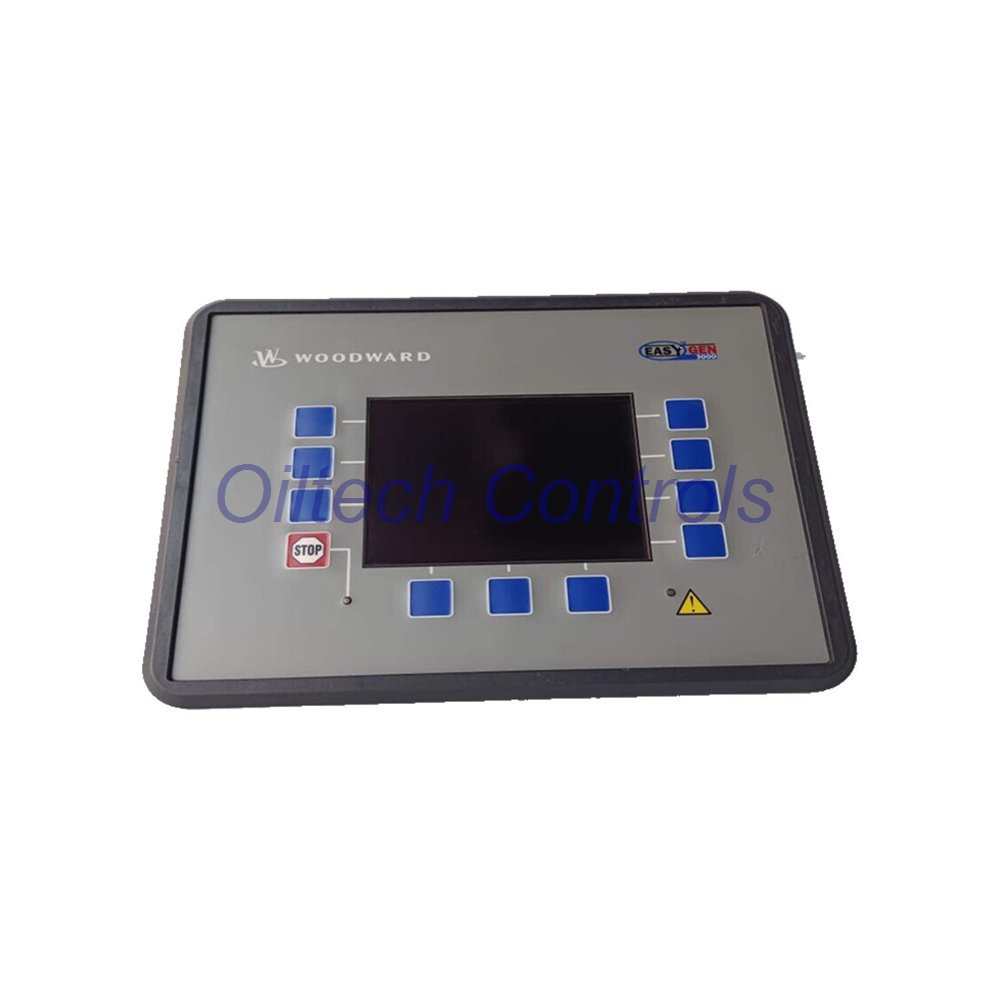

8440-2047 Woodward easYgen-3500-5 Marine Genset Controller
Brand: Woodward
Model: 8440-2047
Series: easYgen-3000 Series
Category: Marine Genset Controller
Author: Oiltech Controls
The 8440-2047 marine genset controller delivers stable generator management for demanding marine environments.
Woodward designed this controller for advanced load sharing, synchronization, and reliable generator protection.
The easYgen-3500-5 platform supports multilingual operation and flexible installation across marine power systems.
Engineers prefer this controller because it combines compact dimensions with strong monitoring performance.
The integrated event recorder improves operational analysis during continuous generator applications.
Key Features and Advantages
- High Accuracy Performance: Accuracy Class 0.5 improves generator monitoring precision during demanding marine operations.
- Wide Power Supply Range: The controller supports 8 to 40 Vdc input for stable system compatibility.
- Marine-Specific Functions: The integrated PC-Tool supports trending analysis, load sharing, and complete system overview displays.
- Advanced Event Recorder: The real-time recorder stores up to 300 operational events with battery-backed clock support.
- Compact Installation Design: Flush mounting structure saves installation space inside marine generator control panels.
- Global Language Support: The interface supports English, German, Spanish, French, Japanese, Chinese, and additional languages.
Technical Specifications
- Brand: Woodward
- Model: 8440-2047
- Series: easYgen-3000 Series
- Alternative Name: easYgen-3500-5 Marine
- Accuracy Class: 0.5
- Linear Measuring Range: 1.25 × Vrated
- Power Supply: 12/24 Vdc (8 to 40 Vdc)
- Front Panel Dimensions: 282W × 216H × 96D mm
- Weight: Approx. 1,850 g (4 lbs)
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -30°C to +80°C
- Mounting Type: Flush Mount
- Housing Material: Industrial Plastic Enclosure
- Environmental Resistance: Suitable for marine generator operating environments
- Event Storage Capacity: Up to 300 real-time events
- Clock Backup: Integrated battery-backed real-time clock
- Communication Support: PC-Tool software integration
- Supported Languages: English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovakian, Finnish, Swedish
Installation Guidelines
- Install the controller inside a dry and cool electrical cabinet for stable long-term operation.
- Keep sufficient ventilation space around the housing to reduce internal operating temperature.
- Use stable DC power connections between 8 and 40 Vdc during installation procedures.
- Mount the controller securely using flush panel installation methods for marine generator systems.
- Avoid high vibration locations to improve operational reliability and signal stability.
Application Areas
- Marine generator synchronization systems
- Shipboard power management applications
- Industrial standby generator systems
- Load sharing generator configurations
- Remote genset monitoring platforms
Packaging List
- 1 × Woodward 8440-2047 Marine Genset Controller
- 1 × Installation guidance documentation
- 1 × Protective industrial packaging box
- 1 × Connector accessory set
Shipping Information
- Fast international shipping through FedEx, UPS, and DHL services.
- Strong export packaging protects the controller during international transportation.
- Engineering support remains available before and after shipment confirmation.
FAQ
- Does this controller support marine generator synchronization?
Yes. The controller supports advanced synchronization and load sharing functions for marine generator systems. - Can engineers monitor historical operational events?
Yes. The integrated recorder stores up to 300 real-time operational events for troubleshooting analysis. - Which power input range works best for stable operation?
The controller operates efficiently within the 8 to 40 Vdc power supply range. - What installation environment improves controller lifespan?
Clean, dry, and ventilated electrical cabinets improve long-term operational reliability significantly. - Why do marine engineers choose the easYgen-3000 series?
The series combines reliable generator control, compact installation size, and advanced monitoring tools. - Does the controller support multilingual operation?
Yes. The interface includes multiple international languages for easier global engineering applications. - How can buyers confirm compatibility before purchasing?
Engineers should verify generator voltage requirements, synchronization needs, and panel installation dimensions carefully.
