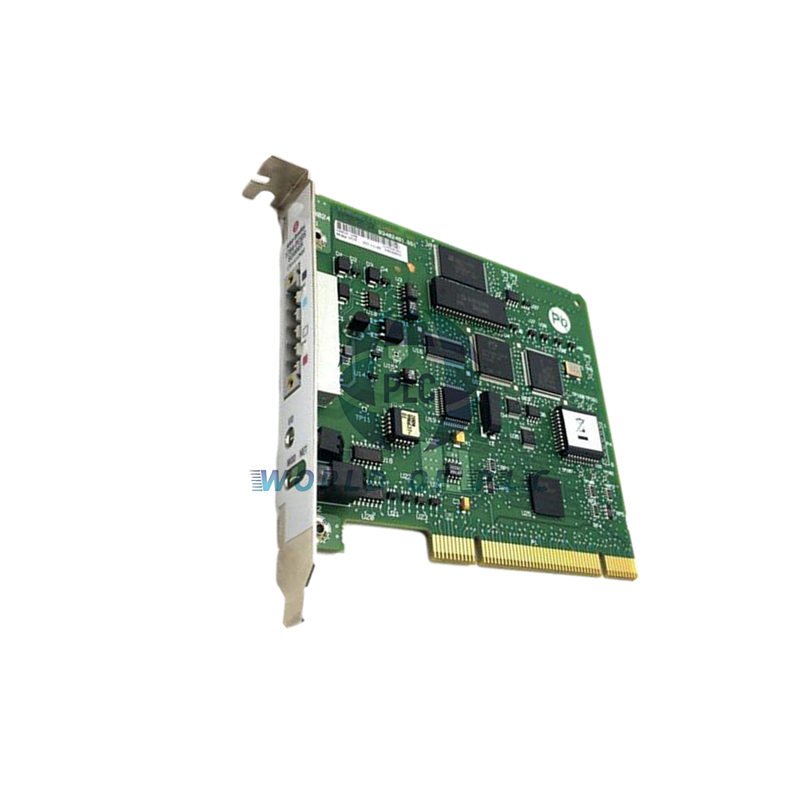

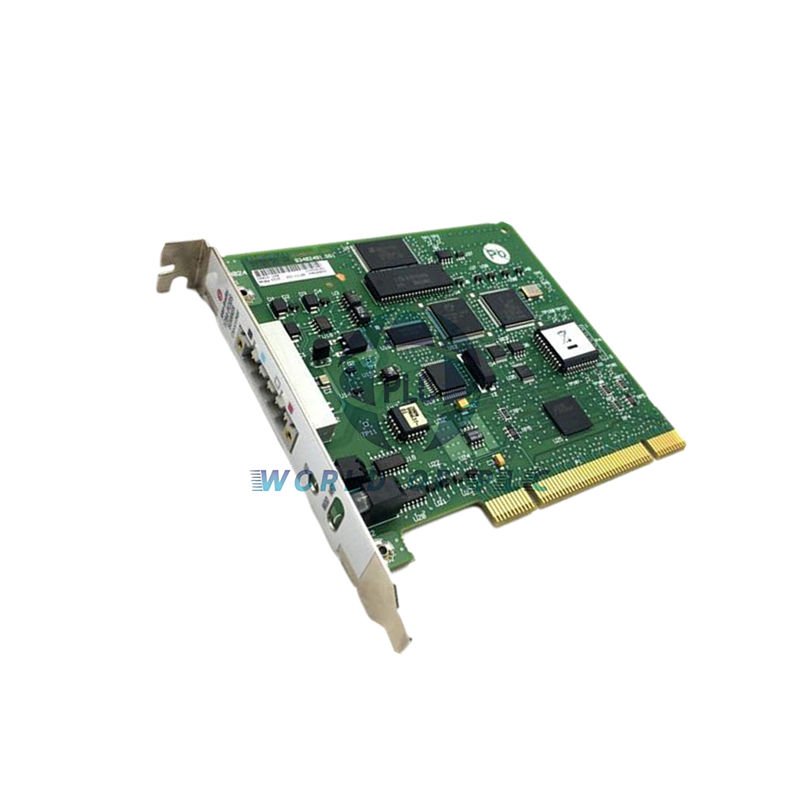

1784-PCIDS DeviceNet PCI Scanner Card
Brand: Allen-Bradley | Series: PLC 5 | Type: DeviceNet PCI Scanner
The 1784-PCIDS is a universal PCI scanner card that connects a host PC to a DeviceNet network. It enables monitoring, configuration, explicit messaging, and I/O scanning. Ideal for PLC-5 and PC-based control systems.
Technical Specifications
- PCI Compliance: Rev. 2.1, 5V, 32-bit short card
- DeviceNet Port: 1 terminal for network connection
- PC Power (5V): 625 mA (max) from PCI bus
- DeviceNet Power (24V): 90 mA (max), Class 2
- I/O Image: 2048 bytes input / 2048 bytes output
- Status LEDs: I/O, Network, Module
- Operating Temp: 32–131 °F (0–55 °C)
- Storage Temp: -40–185 °F (-40–85 °C)
- Humidity: 5–95% (non-condensing)
- Disk Space Required: 2 MB
Compatibility & Series
- Series A: Supports I/O Linx + RSNetworx for DeviceNet
- Series B: Supports RSLinx + RSNetworx for DeviceNet
- Mechanical Form Factor: PCI 5V, 32-bit short card
- Physical Size: 4.2″ H x 4.721″ L
- Enclosure Type: Open (ESD sensitive)
Installation & Handling
- Install in a PCI rev. 2.1 compliant slot.
- Use anti-static wrist strap and grounded table.
- Touch only the corners of the card.
- Keep in anti-static bag until installation.
- Do not touch exposed circuitry.
Oiltech Controls’s Insight
- This card bridges legacy PLC-5 systems to modern DeviceNet networks.
- Series B offers better compatibility with newer RSLinx versions.
- Low power draw (5V@625mA) makes it suitable for most PCs.
- Built-in diagnostics LEDs simplify troubleshooting.
Suitable Equipment
- PLC-5 processors with DeviceNet I/O
- PC-based control and HMI workstations
- DeviceNet slave devices (sensors, drives, valves)
- Legacy automation systems requiring DeviceNet connectivity
- RSNetworx for DeviceNet configuration tools
5 Professional FAQs
- Q1: What is the difference between Series A and B?
A: Series A works with I/O Linx, while Series B uses RSLinx. Both support RSNetworx for DeviceNet. - Q2: Can I use this card in a 64-bit PCI slot?
A: It is physically compatible with 64-bit slots, but only operates in 32-bit mode. - Q3: How do I power the DeviceNet network?
A: The card draws 24V@90mA from the network; you must connect an external 24V supply to the DeviceNet cable. - Q4: Which software is required?
A: RSNetworx for DeviceNet (both series). Series B also needs RSLinx; Series A works with I/O Linx. - Q5: Is ESD protection necessary?
A: Yes. The card is open-frame and static-sensitive. Always use ESD precautions during handling.
