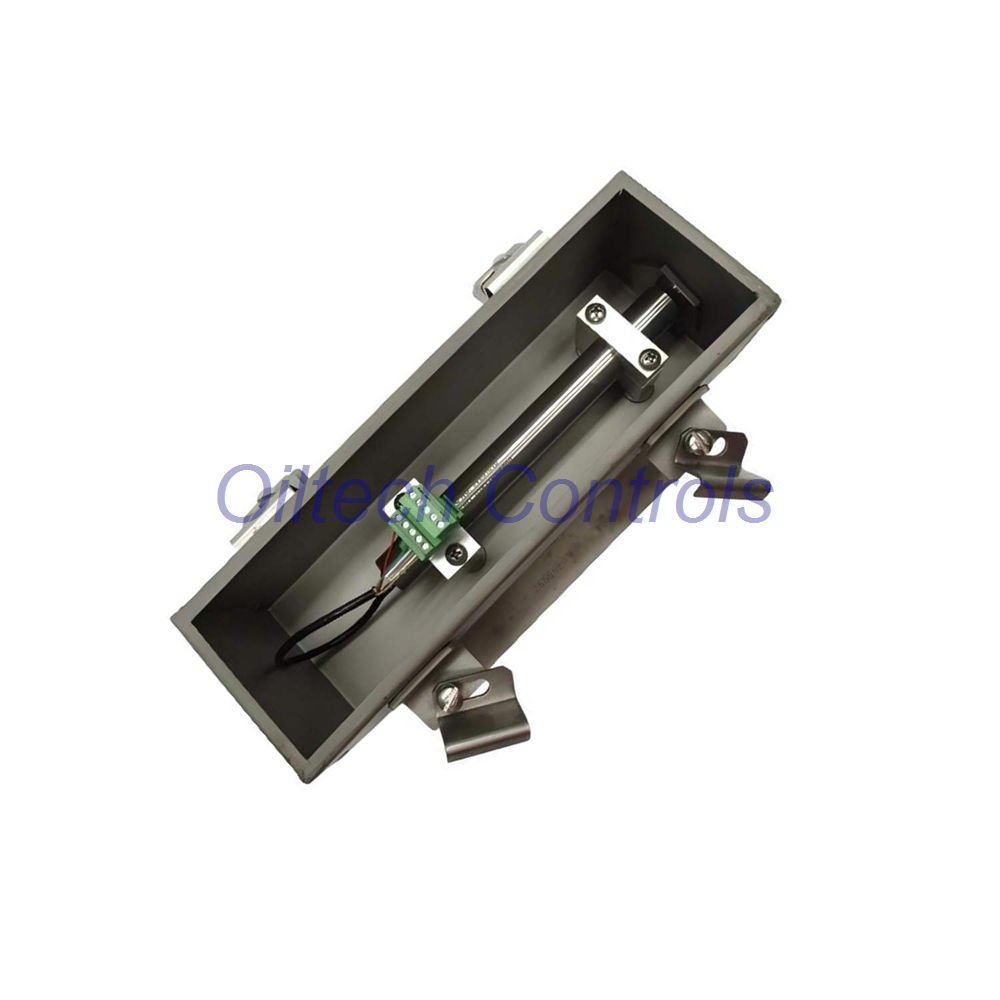

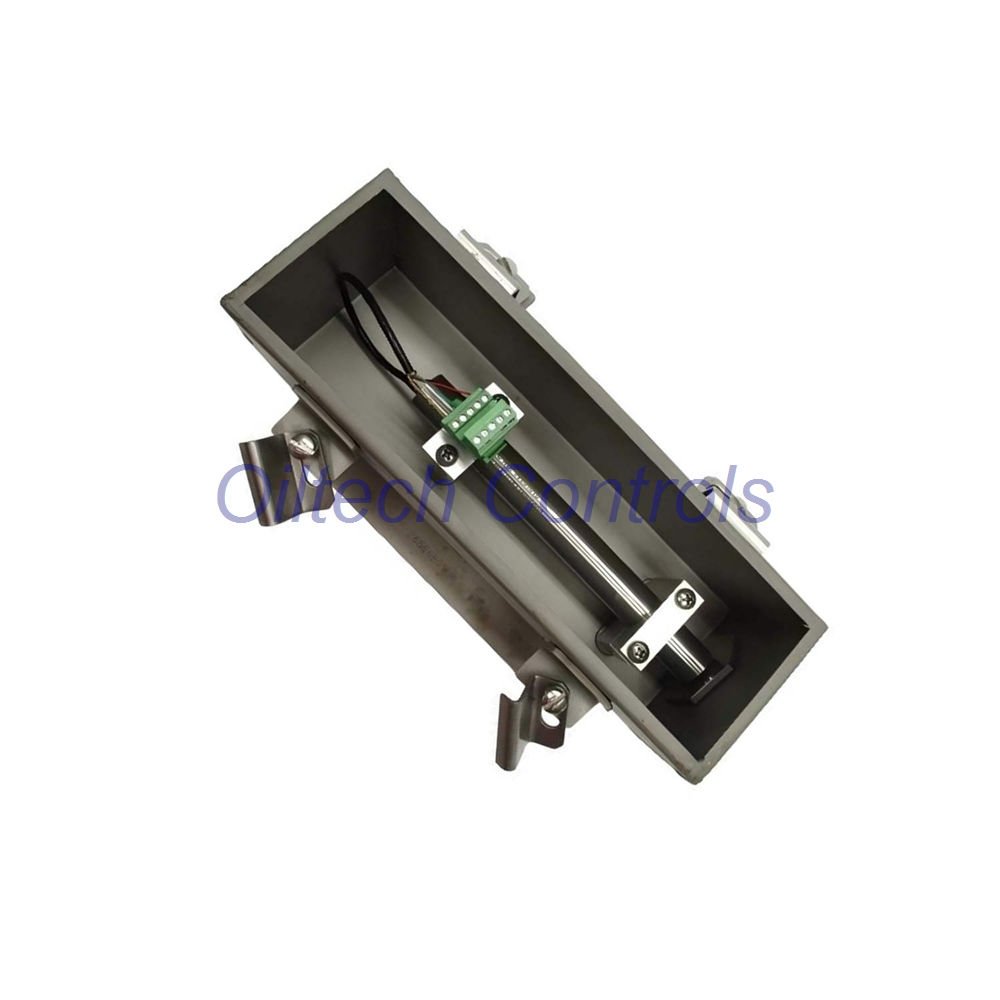

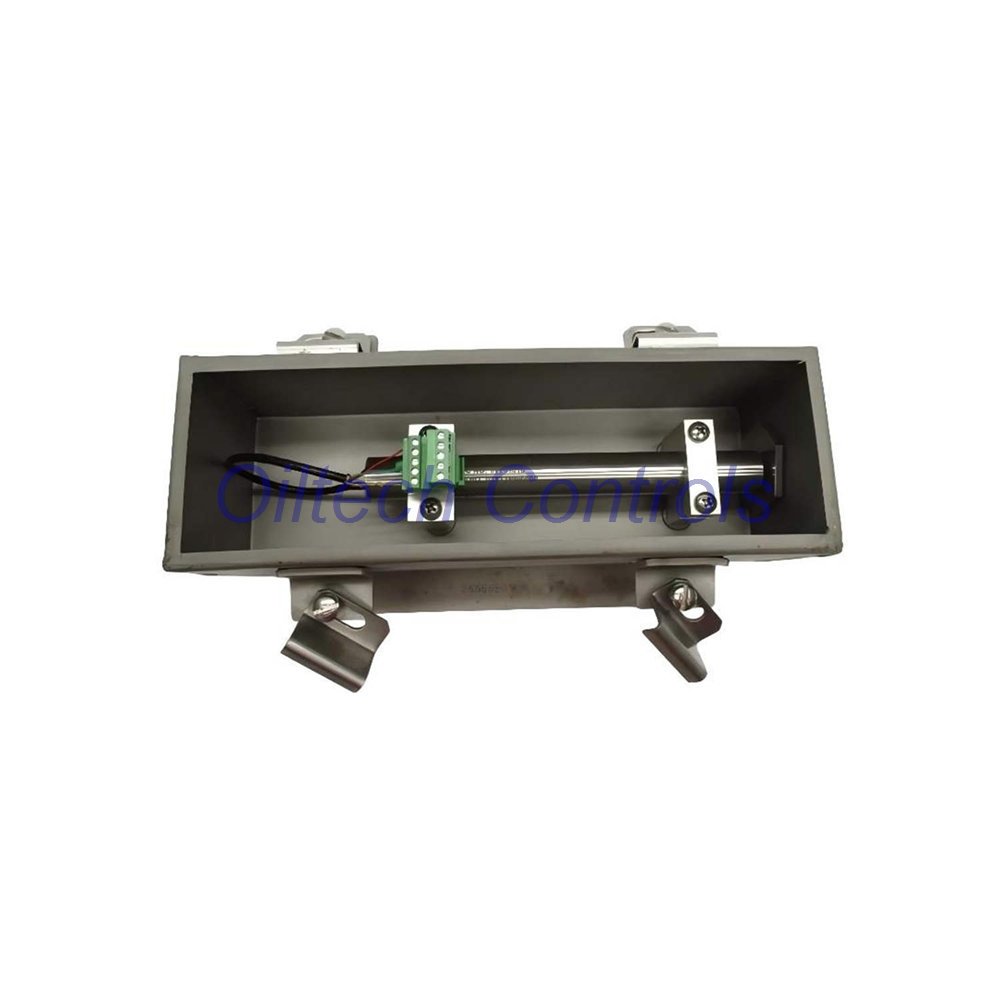

Bently Nevada 135613-01-00 Case Expansion Transducer – 25.4mm Range DC Output

135613-01-00 Bently Nevada High Temp Case Expansion Transducer

Oiltech Controls Insight

• This high-temperature case expansion transducer is engineered for turbine and compressor monitoring.
• Operates reliably from -25 °C to +85 °C with stable 0.20 V/mm scale factor.
• Linear range 25.4 mm – covers most industrial case expansion requirements.
• Proven in power generation, oil and gas, and heavy rotating machinery.

Technical Specifications

• Manufacturer: Bently Nevada (GE)
• Model: 135613-01-00
• Type: High Temperature Case Expansion Transducer Assembly (DC)
• Input Power: +13.5 to +26 Vdc unregulated, 30 mA minimum
• Output: +1 to +6 Vdc, all models
• Output Noise: less than 10 mV
• Scale Factor: 0.20 V/mm (5.0 V/in)
• Linear Range: 25.4 mm (1.00 in)
• -3 dB Frequency: 200 Hz (typical)
• Stability: 0.125% full-scale
• Non-Linearity: less than 0.25% full-scale
• Temperature Coefficient: 0.05%/°C (0.028%/°F) max
• Operating Temp: -25 °C to +85 °C (-13 °F to +185 °F)
• Storage Temp: -55 °C to +125 °C (-67 °F to +257 °F)
• Shock: 250 g for 11 ms
• Vibration: 10 g @ 0 to 2 kHz
• Dimensions (HxWxL): 88.9 x 117 x 241 mm (3.50 x 4.60 x 9.50 in)
• Weight: 2.3 kg (5.0 lbs)
• Thread: 6-40 UNF-2B (core end), 1/4-20 UNC-2A (machine end)
• Body Length: 171 mm (6.75 in)
• Body Diameter: 19.2 mm (0.75 in)
• Body End to Null Center: 65.4 mm (2.57 in)
• Core Length: 87.6 mm (3.45 in)

Certifications and Compliance

• FCC Part 15 – compliant for industrial environments.
• EMC: EN 61000-6-2 (2005), EN 61000-6-4 (2007) +A1:2011
• EMC Directive: 2014/30/EU
• RoHS: 2011/65/EU compliant
• Made in U.S.A

Compatible Equipment and Applications

• Turbines: Steam, gas, and hydro turbines – case expansion monitoring.
• Compressors: Centrifugal and axial compressors – thermal growth tracking.
• Generators: Large frame generators – differential expansion measurement.
• Works with Bently Nevada 3500 and 7200 monitoring systems.
• Replaces legacy 135613-00-00 with enhanced temperature range.

5 Professional FAQs – Selection and Experience

• Q: Can this transducer be submerged in oil or exposed to steam?
  A: No. This is a dry environment transducer. Use with appropriate probe mounting hardware and avoid direct fluid contact.
• Q: How to verify scale factor before installation?
  A: Use a Bently Nevada TK-3 calibrator or micrometer fixture. Measure output at 0, 12.7, and 25.4 mm positions. Slope should be 0.20 V/mm ±2%.
• Q: What is the maximum cable length without signal degradation?
  A: Keep extension cable under 305 m (1000 ft) for full accuracy. Use Bently-approved coaxial cable with proper impedance.
• Q: Does this model include the spring return option?
  A: No. The 01-00 suffix indicates 01 = 25.4 mm range with 127 mm rod, 00 = without spring return. For spring return order 135613-01-01.
• Q: How to select between this and the 135613-01-01?
  A: Choose 135613-01-00 for applications requiring springless positive contact. Choose 135613-01-01 when automatic retraction is needed for mechanical clearance.

Shipping and Warranty

• Dispatch: 24 to 28 hours from order confirmation.
• Carriers: FedEx, UPS, DHL – worldwide express with tracking.
• Warranty: 12 months against manufacturing defects.
• Every unit undergoes full calibration verification before shipment.
