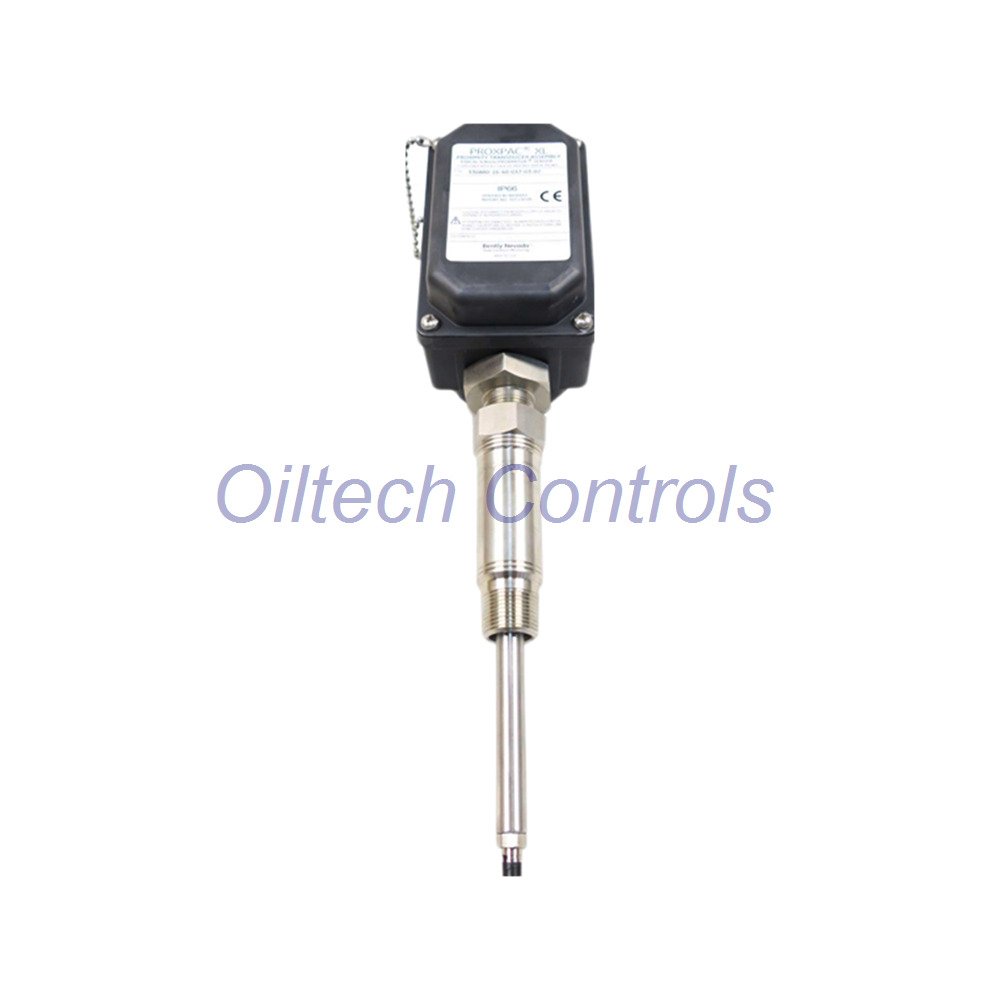

Bently Nevada 31000-28-10-00-087-03-02 Product Overview
The 31000-28-10-00-087-03-02 is part of 31000 Proximity Probe Housing Assemblies.
Designed for 3300 XL 8 mm probes.
Strong body. Tight seal. Long life.
Made in U.S.A.
Model Configuration Structure
31000-28-10-00-087-03-02 ├─ 28 → 3300 XL 8 mm probe (multi approvals) ├─ 10 → 1.0 m probe cable ├─ 00 → No standoff adapter ├─ 087 → 8.7 inch penetration ├─ 03 → Fittings kit │ • Two plugs │ • 3/4-14 NPT fitting │ • 3/4-14 to 1/2-14 NPT reducer (SST) │ • Cable seal grip (3 sizes) └─ 02 → 3/4-14 NPT mounting thread
Main Technical Specifications
- Protection Rating: Type 4X, IP66
- Temperature Range: -51°C to +105°C
- Weight: 1.2 kg
- Recommended Torque: 29.4 N·m
- Impact Resistance: 4–7 Joule certified
- Load Strength: 912 N tested
- Housing Material: PPS with conductive fiber
- Sleeve: AISI 304 stainless steel
- Screws: AISI 303 stainless steel
- O-ring: Neoprene
Extended Technical Data
- Designed for 3300 XL 8 mm probe system
- High corrosion resistance
- UV resistant material
- Humidity tolerance: 5–95% non-condensing
- Electrostatic dissipation compliant
- Stable under vibration
- Outdoor water protection
- Service life over 10 years (normal use)
- Grounding liner included
- Quick cable sealing system
Application Areas
- Steam turbines
- Gas turbines
- Compressors
- Pumps
- Generators
- Heavy industry equipment
Important Pressure Note
This housing seals moisture between probe tip and body.
It is not designed for internal pressure resistance.
Pressure testing available upon request.
Warranty & Shipping
- 12 Months Warranty
- Fast Shipping: FedEx / UPS / DHL
- Worldwide Delivery
Contact Email:
info@oiltechcontrols.com
WhatsApp:
+86 158 8020 0923
Why Choose 31000-28-10-00-087-03-02
- Original OEM quality
- Easy installation
- Strong mechanical strength
- Reliable sealing performance
- Safe for hazardous areas
Explore full series:
Proximity Probe Housing Assemblies
FAQ
How do I select the correct penetration length?
Measure machine wall thickness first.
Add probe gap distance.
Choose slightly longer length for safety.
Can this housing be used outdoors?
Yes.
It meets IP66 and Type 4X protection.
Suitable for rain and washdown areas.
Is this housing pressure rated?
No.
It seals against water only.
Not for internal pressure applications.
What thread type does this model use?
This model uses 3/4-14 NPT thread.
Always confirm machine port size before order.
How to extend service life?
Use correct torque.
Do not over-tighten.
Check O-ring during maintenance.
