Bently Nevada | 3300 NSv Reverse Mount Probe 330907-05-30-50-02-00

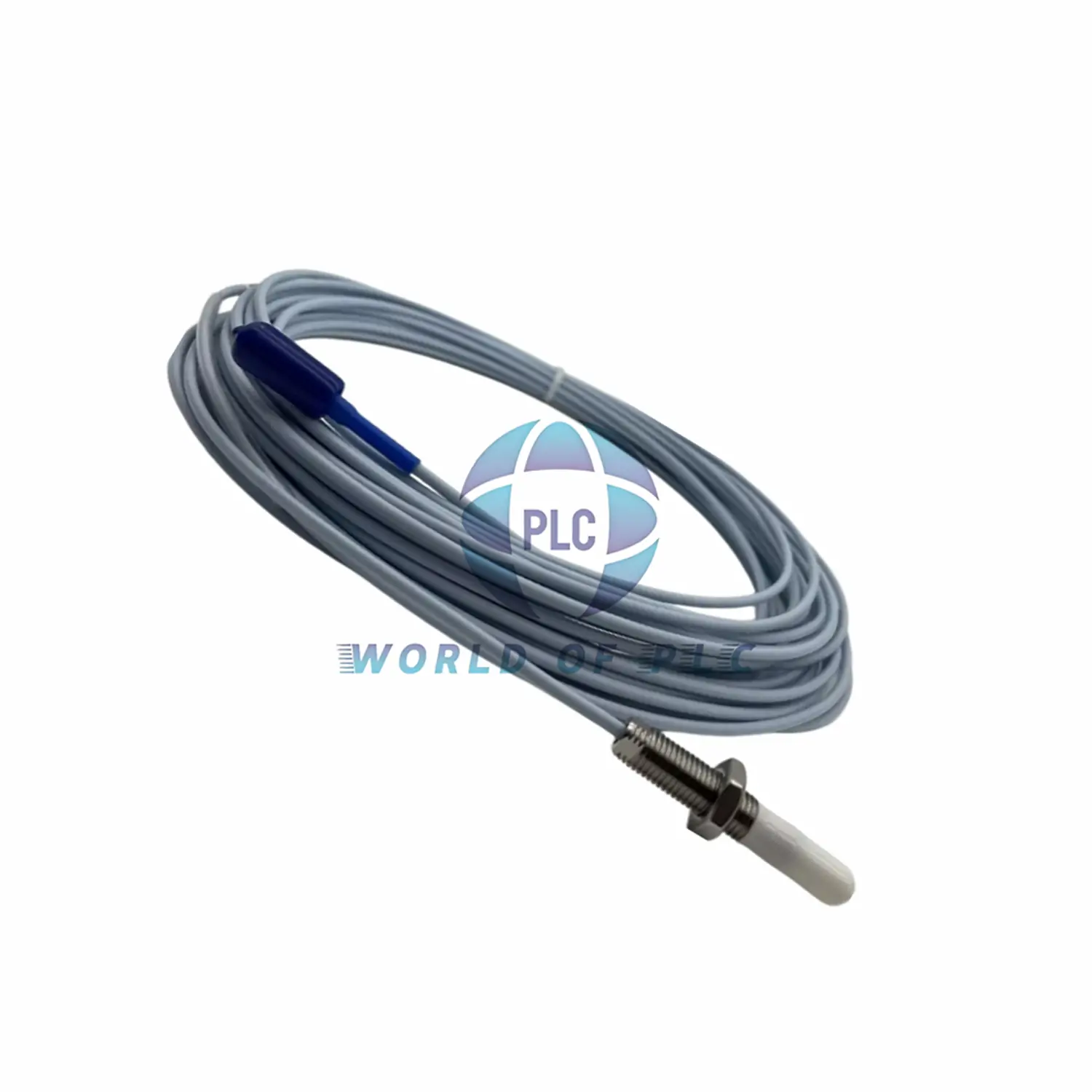

Bently Nevada 330907-05-30-50-02-00 Reverse Mount Probe

Product Overview

This probe (330907-05-30-50-02-00)is part of the 3300 NSv series with a reverse mount. It features M10x1 threads, a 5.0-meter standard cable, and a miniature ClickLoc coaxial connector. It is built to work in chemical environments and tight spaces like process compressors.

Ordering Breakdown

• 330907: NSv reverse mount probe series
• 05: Unthreaded length
• 30: Case length
• 50: Total probe length = 5.0 meters
• 02: ClickLoc coaxial connector with standard cable
• 00: No agency approvals required

Key Technical Specifications

• Linear Range: 0.25 to 1.75 mm (10 to 70 mils)
• Recommended Gap: 1.0 mm (40 mils)
• Output Signal: -1 V to -13 V DC
• DC Resistance (1.0 m): 4.2 ± 0.5 ohms

Mechanical Properties

• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 stainless steel
• Max Torque: 22.6 N·m (200 in·lb)
• Recommended Torque: 7.5 N·m (66 in·lb)
• Thread Engagement Max: 15 mm
• Weight: 14 to 150 g (0.5 to 5.3 oz)
