What’s in the Model Number?

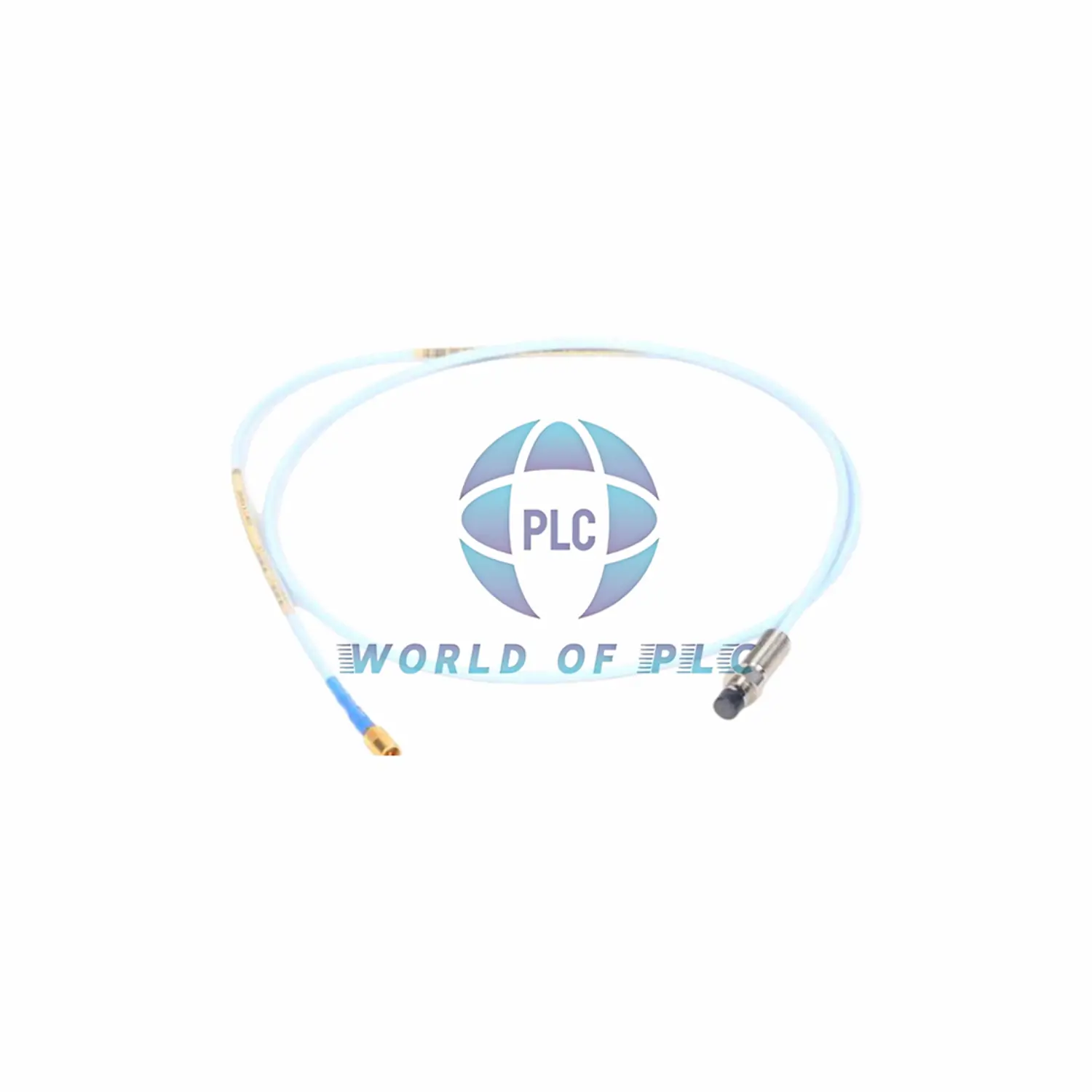

The Bently Nevada 330101-00-20-10-01-CN is a rugged 8mm vibration sensor. Built with a 3/8-24 UNF thread and no armor, it’s ideal for tight spaces. Includes a 1-year warranty and U.S. origin certification.
Breaking Down the Code: 330101-00-20-10-01-CN
- 00: 0.0 in unthreaded length
- 20: 2.0 in case length
- 10: 1.0m cable (3.3 ft)
- 01: ClickLoc connector with protector
- CN: Country-specific approval
Built for Demanding Jobs
- TipLock® Design: Withstands 75 lbs pull force at the tip
- Anti-Leak Option: Add FluidLoc to stop oil leaks
- Materials: Stainless steel case + PPS plastic tip
Key Numbers You Need
- Measures: Up to 2.0mm (80 mils) vibration
- Accuracy: ±1 mil error (thinner than paper)
- Works From: -62°F (-52°C) to +350°F (+177°C)
- Weight: 323 g/m (11.4 oz) cable
Why Choose this model?
- Connector Guard: Extra protection for the ClickLoc plug
- Humidity Proof: Less than 3% error in wet conditions
- Seal: Viton® O-ring (ask about pressure tests)
