Bently Nevada 330172-00-26-10-02-00 | 5mm Proximity Probe

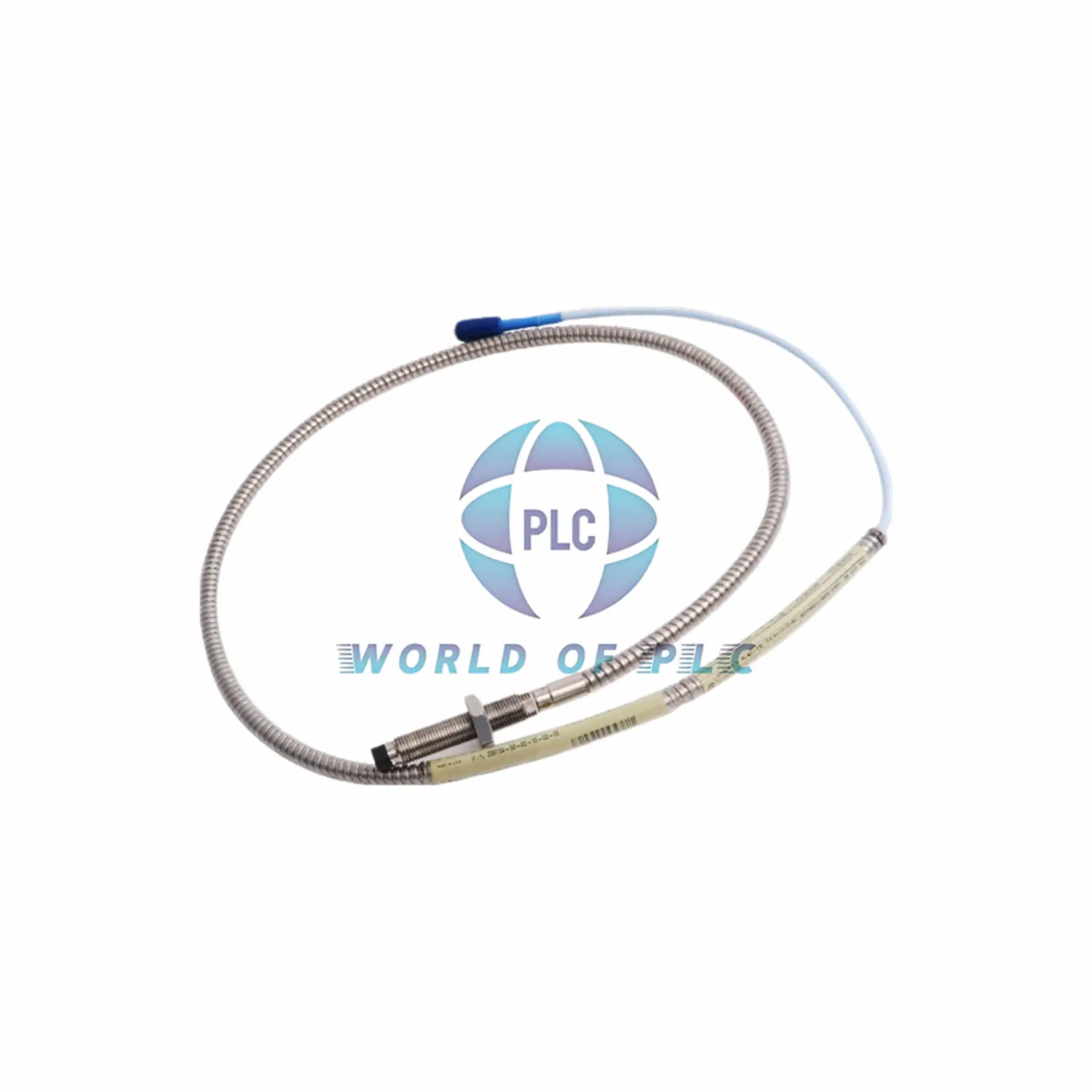

Bently Nevada 330172-00-26-10-02-00 Armored Vibration Sensor

Precision Machine Monitoring Made Simple

• 📏 2.6″ case length – ideal for standard installations
• 🛡️ Armored protection for harsh industrial environments
• 🔌 1m cable with secure ClickLoc connection
• ❄️🔥 Extreme temperature range (-35°C to +177°C)
• ⚡ 12-month product guarantee

Model Number Explained

Key Performance Features

• Electrical: -17.5V to -26V DC power
• Accuracy: 7.59Ω ±0.5 resistance
• Thread: 1/4-28 UNF industrial standard
• Durability: 50 lbf tensile strength
• Materials: AISI 304 stainless steel with PPS tip

Quick Start Guide

• 🛠️ Drill with #3 or larger bit
• 🔧 Tighten to 45 in-lb (5.1 N·m)
• 📏 Set 1.27mm gap to target
• 🔄 Maintain 1″ cable bend radius
• ⚡ Connect to -24V DC system

Technical FAQs

• Why 2.6″ case length? Perfect balance for most applications
• How durable is the armor? Withstands 50 lbf pulling force
• Can I use in wet areas? Yes, but not for submersion
• What’s the cable material? 75Ω triaxial FEP insulation
• How sensitive is it? Less than 2mV/V supply variation

What’s Included

• 📦 1× 330172-00-26-10-02-00 vibration probe
• 🛡️ 12-month quality coverage
• ✈️ Fast global shipping options
