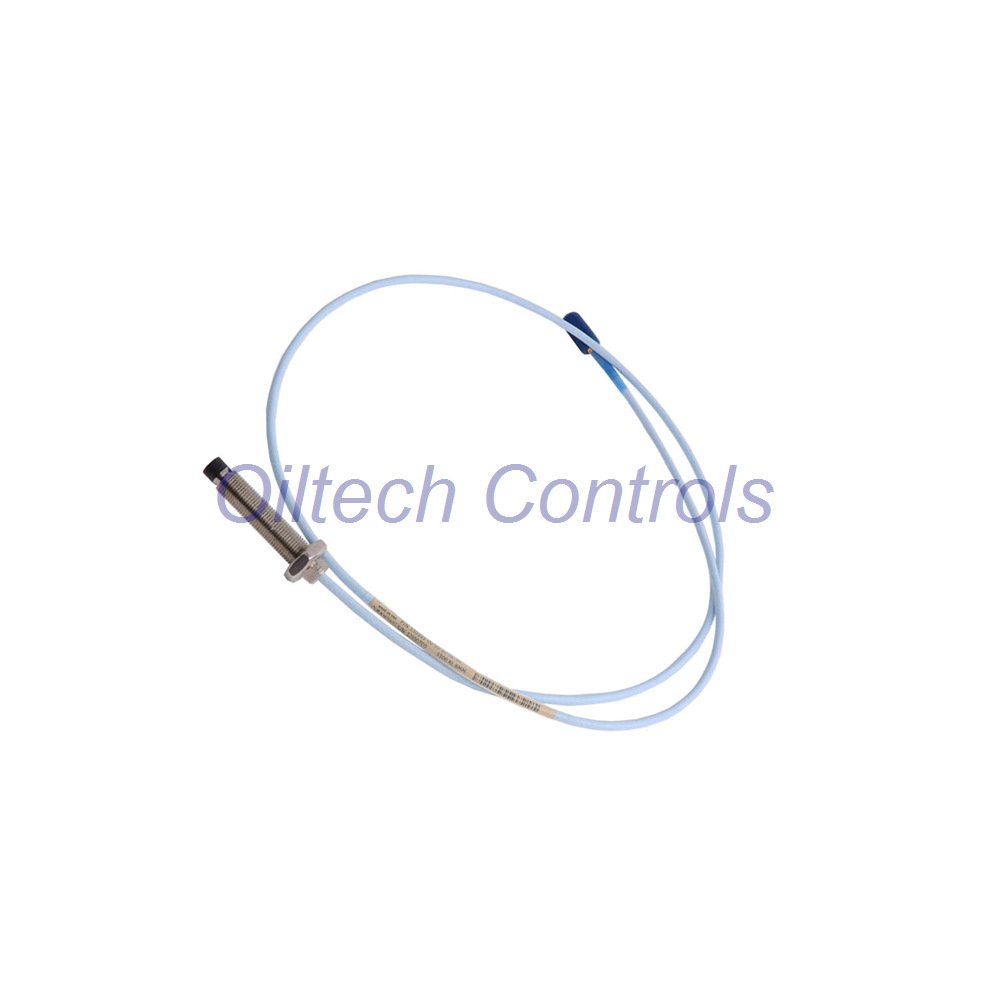

Bently Nevada 330173-08-18-10-02-00 | Metric 5mm Proximity Probe

Product Overview

Introducing the metric version of Bently Nevada’s reliable 5mm Proximity Probe. Model 330173-08-18-10-02-00 features European-standard M8 threading for global compatibility.

Why Choose This Probe?

• Metric Standard: M8 x 1 thread fits international equipment designs
• Extended Reach: 180mm case length reaches deep measurement points
• Quality Construction: Stainless steel body with durable PPS tip
• Easy Integration: Standard 1.0m cable with ClickLoc connector
• Wide Compatibility: Works with Bently Nevada 3300 monitoring systems

Configuration Details

• Complete Part Number: 330173-08-18-10-02-00
  330173 – Base model: 5mm probe, M8 thread, no armor

  08 – Unthreaded section: 80mm length

  18 – Total case: 180mm from tip to cable exit

  10 – Cable: 1.0 meter integrated length

  02 – Connector: Miniature coaxial ClickLoc

  00 – Certification: Standard agency approval

Performance Specifications

• Electrical Performance
  • Voltage Range: -17.5 to -26 VDC
  • Current Consumption: Maximum 12 mA
  • Output Characteristics: 50 Ω resistance
  • Internal Resistance: 7.59 Ω ±0.50 for 1m cable
  • Power Sensitivity: Minimal (<2 mV/V variation)
• Physical Dimensions
  • Thread Type: M8 x 1.0 metric
  • Maximum Engagement: 12mm thread depth
  • Probe Diameter: 5.0mm sensing area
  • Case Material: AISI 304 Stainless Steel
  • Tip Material: PPS (Polyphenylene Sulfide)
  • Installation Torque: 5.1 N·m recommended
• Environmental Ratings
  • Temperature Range: -35°C to +177°C
  • EMI Protection: 300 Gauss at 60 Hz
  • Mechanical Strength: 222 N pull resistance
  • Cable Flexibility: 25.4mm minimum bend radius
  • Hazardous Area: Multiple temperature classifications available

Purchase & Support

• Quality Guarantee: Full 12-month manufacturer warranty
• Global Shipping: FedEx, UPS, and DHL express options
• What’s Included: One probe, part number 330173-08-18-10-02-00
• Technical Assistance: Contact our engineering team
  • Email: info@oiltechcontrols.com
  • WhatsApp: +86 158 8020 0923

Technical Questions Answered

What is the main advantage of the M8 thread?

The M8 metric thread is standard on European-manufactured machinery. It eliminates the need for thread adapters when replacing original equipment sensors.

How do I install this probe correctly?

Drill and tap an M8x1.0 hole. Engage maximum 12mm of thread. Torque to 5.1 N·m. Maintain proper gap distance to the target surface.

Can I use this in high-temperature applications?

Yes, the probe operates up to 177°C. For hazardous areas, refer to the specific temperature classification tables in the datasheet.

What if I need a different cable length?

The 330173 base model offers various cable options. Contact us with your specific length requirement for alternative configurations.

Is this probe suitable for pump vibration monitoring?

Absolutely. Its metric threading and extended 180mm length make it ideal for pump applications, especially those with deep bearing housings.
