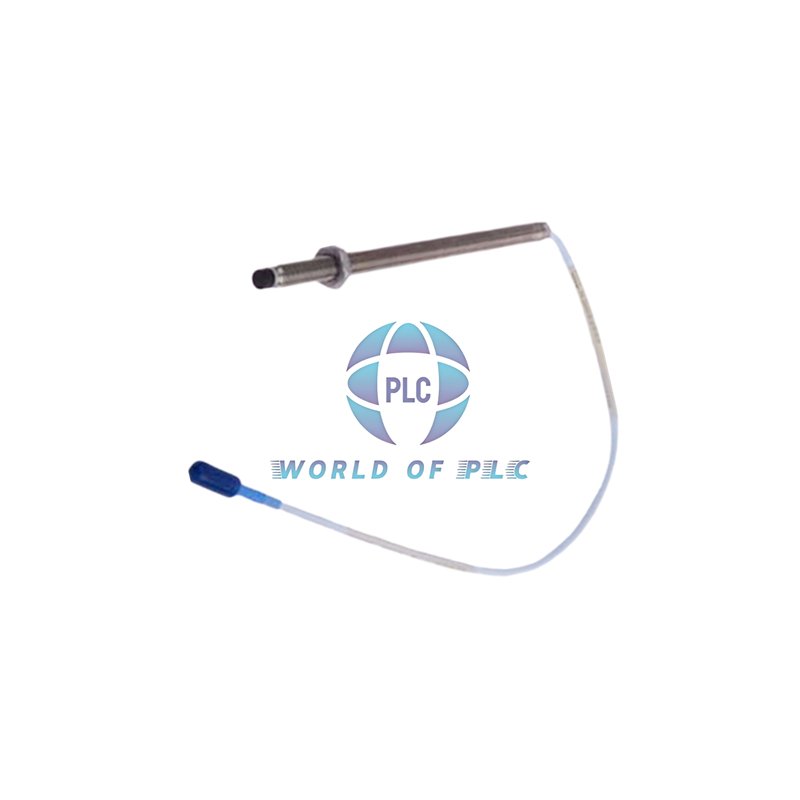

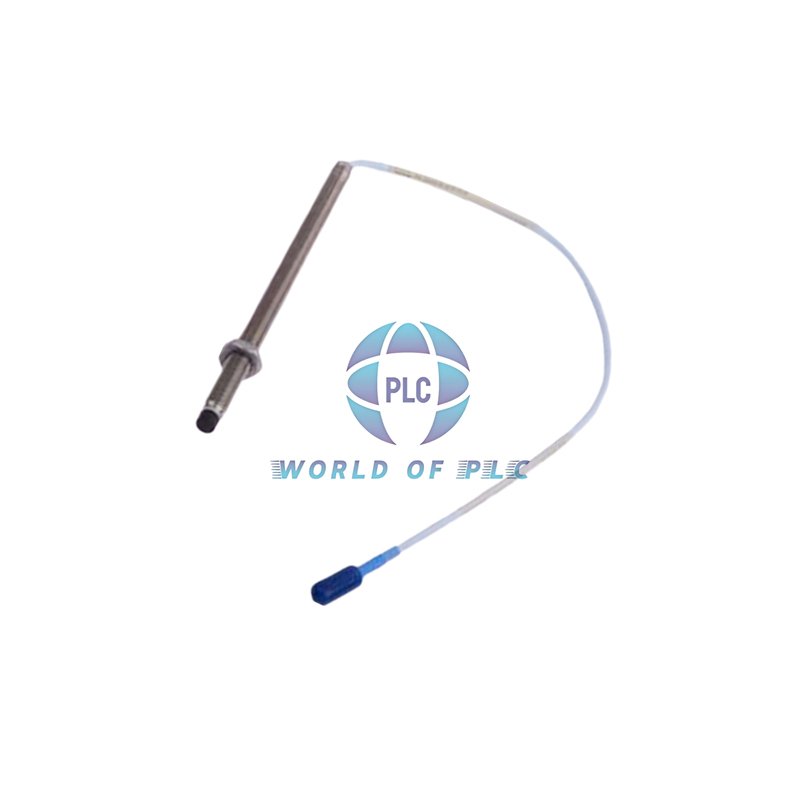

Bently Nevada 3300 NSv Medium Probe with Extended Cable
Meet the 330903-00-05-10-02-00 industrial proximity sensor. This authentic Bently Nevada product combines a 50mm case with 1.0 meter cable. Excellent for various vibration monitoring applications. The 330903 series offers reliable performance in tough conditions. Ready for immediate installation and use.
Model Number Structure
- 330903: Core product identifier
- 00: No unthreaded section
- 05: 50mm total case length
- 10: 1.0 meter attached cable
- 02: Standard cable with ClickLoc connector
- 00: Standard regulatory compliance
Technical Parameters
- Brand Name: Bently Nevada
- Full Model Number: 330903-00-05-10-02-00
- Measurement Range: 1.5mm (60 mils)
- Output Signal: -1 to -13 VDC
- Sensitivity: 7.87 V/mm (±20% variation)
- Non-linearity: Better than ±0.06mm
- Frequency Response: 0 to 10 kHz
- Temperature Range: -52°C to +177°C
- Cable Specification: 1.0 meter length
- Connection Type: Miniature ClickLoc
- Housing Material: AISI 304 Stainless Steel
- Tip Composition: Polyphenylene sulfide
- Electrical Resistance: 4.2 ± 0.5 ohms
- Target Size: Minimum 13mm diameter
- Bend Radius: 25.4mm minimum
Installation Procedure
- Set optimal gap distance at 1.0mm from target
- Ensure proper 12mm thread engagement
- Use hand tightening force only
- Maintain cable bend radius above 25.4mm
- Follow target size recommendations carefully
System Integration
This NSv probe integrates perfectly with existing 3300 RAM infrastructure. Compatible with standard extension cables. Ideal for system upgrades and replacements.
What You Receive
- One Bently Nevada proximity probe
- Original manufacturer packaging
- Complete 12-month protection coverage
Delivery Services
International shipping available via FedEx, UPS, and DHL express services.
Technical Questions Answered
- What applications need 50mm case length?
Medium-depth installations in pumps, compressors, and turbines. - How does the 1.0 meter cable help installations?
Provides adequate length for most industrial mounting scenarios. - What maintenance is required for this probe?
Regular visual inspection and gap verification recommended. - Can this probe handle oil and chemical exposure?
Yes, features enhanced chemical resistance properties. - What is the typical delivery time?
Most orders ship within 24-48 hours of payment confirmation.
Obtain the full technical specification document for complete installation guidance.
