Bently Nevada 3300 NSv Sensor | Industrial Monitor

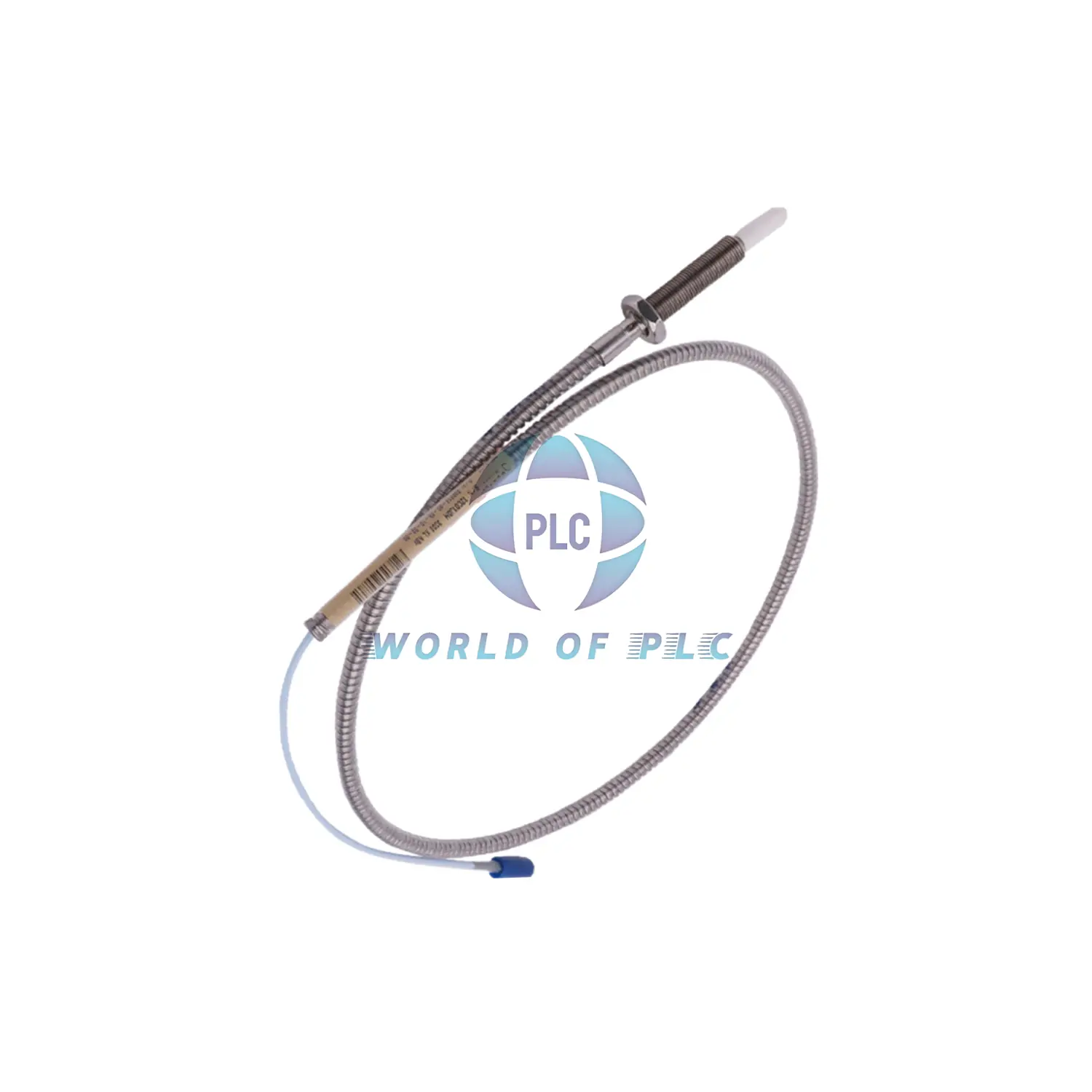

Meet the Bently Nevada 330904-08-15-50-02-05 proximity probe. This industrial sensor offers precise vibration measurement. It combines an 80mm unthreaded section with a 150mm case. This design allows flexible installation in tight spaces. Download our full guide for complete specifications.
Get Full Product Datasheet Here
Product Code Explained
Understanding Your Model Number
- 330904 – Core 3300 NSv probe with armor
- 08 – 80 mm smooth unthreaded section
- 15 – 150 mm complete case length
- 50 – 5.0 meter attached cable
- 02 – ClickLoc connector, standard cable
- 05 – Meets multiple safety standards
Key Technical Data
Performance Specifications
- Brand: Bently Nevada
- Model: 3300 NSv (330904-08-15-50-02-05)
- Measuring Range: 1.5 mm linear distance
- Frequency Range: 0 to 10,000 Hz
- Output Signal: 7.87 volts per millimeter
- Accuracy Level: Within ±0.06 mm
- Temperature Range: -52°C to +177°C
- Electrical Value: 5.3 ohms resistance
- Target Size: 13 mm diameter minimum
Installation Guide
Setup Instructions
- Mounting Thread: Standard M8x1 size
- Installation Torque: Use 5.1 Newton meters
- Maximum Torque: Never pass 7.3 N•m
- Probe Position: Place 1.0 mm from target
- Cable Handling: Bend minimum 25.4 mm
- Wiring Length: Up to 305 meters maximum
- Connection Type: Secure ClickLoc fitting
Construction Details
Materials Used
- Sensing Tip: Strong PPS plastic
- Body Material: 304 stainless steel
- Cable Type: 75 ohm coaxial design
- Seal Type: Reliable Viton O-ring
- Cable Protection: Standard jacket
- Cable Length: 5.0 meters total
Order Information
What You Receive
- One new Bently Nevada 3300 NSv probe
- Original factory packaging
- Complete technical papers
- Worldwide shipping service
- Quick delivery options available
Common Questions
Product Features
- What makes this model special?
- It has both 80mm unthreaded section and 150mm case length.
System Compatibility
- Will this replace my old probe?
- Yes, it works with existing 3300 RAM systems perfectly.
Installation Help
- How far from the target?
- Keep 1.0 mm distance for best results.
Environment Use
- Is it chemical resistant?
- Yes, it handles chemicals better than older models.
Performance Data
- What is its frequency range?
- It works from 0 to 10,000 Hertz very well.
