Bently Nevada 330172-10-24-05-02-00 5mm Proximity Probe with Armor
Description

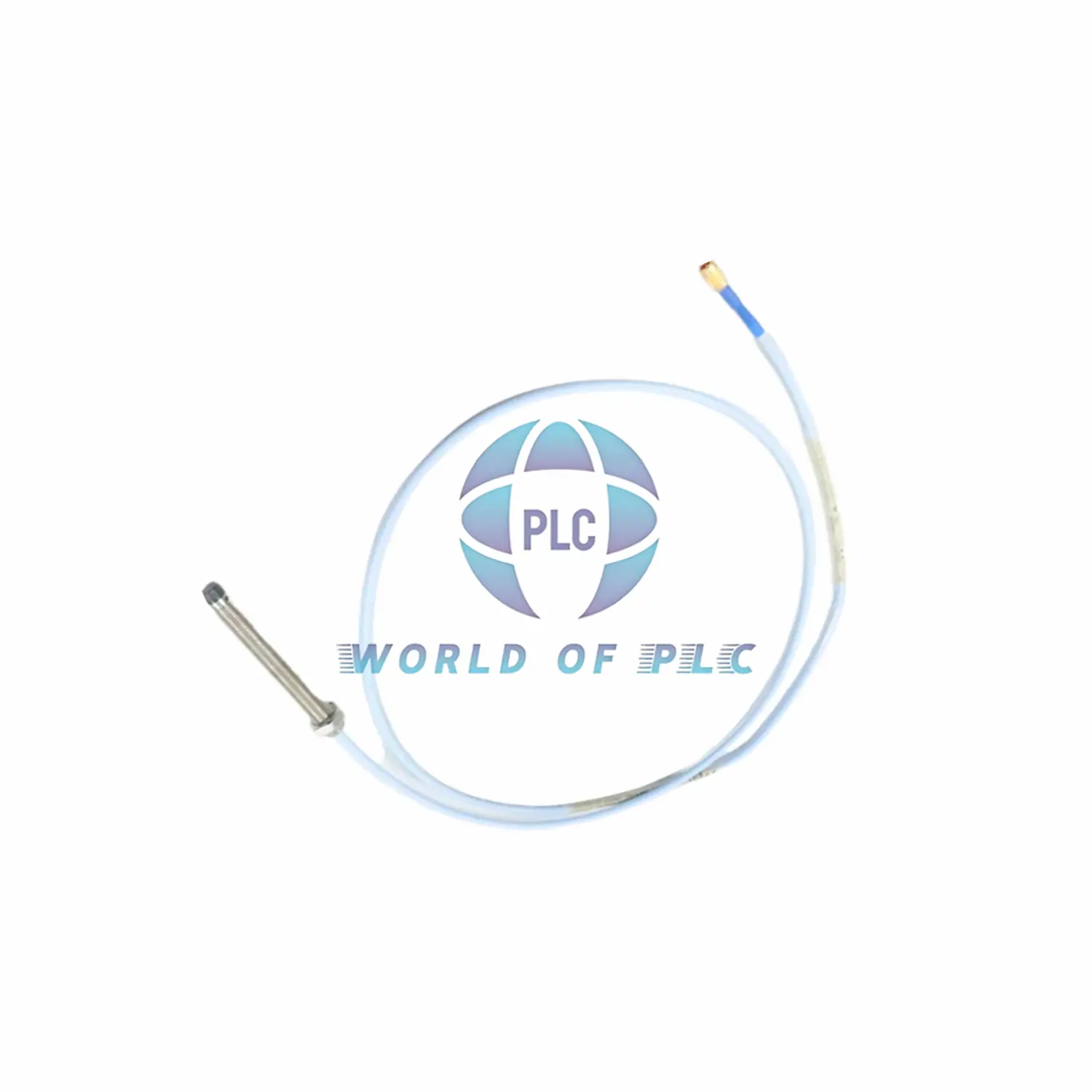

The Bently Nevada 330172-10-24-05-02-00 is a high-performance 5mm proximity probe designed for precision vibration and position monitoring. Made in the USA, it features a 1/4-28 UNF threaded stainless steel case and a durable PPS probe tip. Ideal for industrial applications, it offers reliable measurements in harsh environments.
Technical Data
- Brand: Bently Nevada
- Model: 330172-10-24-05-02-00
- Probe Type: 5mm, armored
- Thread: 1/4-28 UNF (max engagement 0.375 in)
- Unthreaded Length: 1.0 in (Option: 10)
- Case Length: 2.4 in (Option: 24)
- Cable Length: 0.5 meter (Option: 05)
- Connector: Miniature coaxial ClickLoc (Option: 02)
- Material: AISI 304 SST case, PPS tip
Key Specifications
- Power Supply: -17.5 to -26 Vdc
- Output Resistance: 50 Ω
- Probe Resistance: 7.45 ± 0.50 Ω
- Temperature Range: -35°C to +177°C
- Tensile Strength: 222 N (50 lbf)
- Recommended Torque: 5.1 N·m (45 in·lb)
Installation Guide
Use a #3 or larger tap drill for 1/4-28 mounting. Ensure proper thread engagement (max 0.375 in). Avoid over-tightening (max torque: 7.3 N·m). Maintain minimum 25.4 mm cable bend radius.
Compatibility
Works with Bently Nevada 3300 monitoring systems. Compatible with AISI 4140 steel targets. Standard 75 Ω triaxial cable.
Certification & Warranty
No agency approvals required (Option: 00). Backed by a 12-month warranty.
Shipping Options
Fast worldwide delivery via FedEx, UPS, or DHL.
