Bently Nevada 3300 Series 5mm Proximity Probe – High-Performance Vibration Monitoring
Description

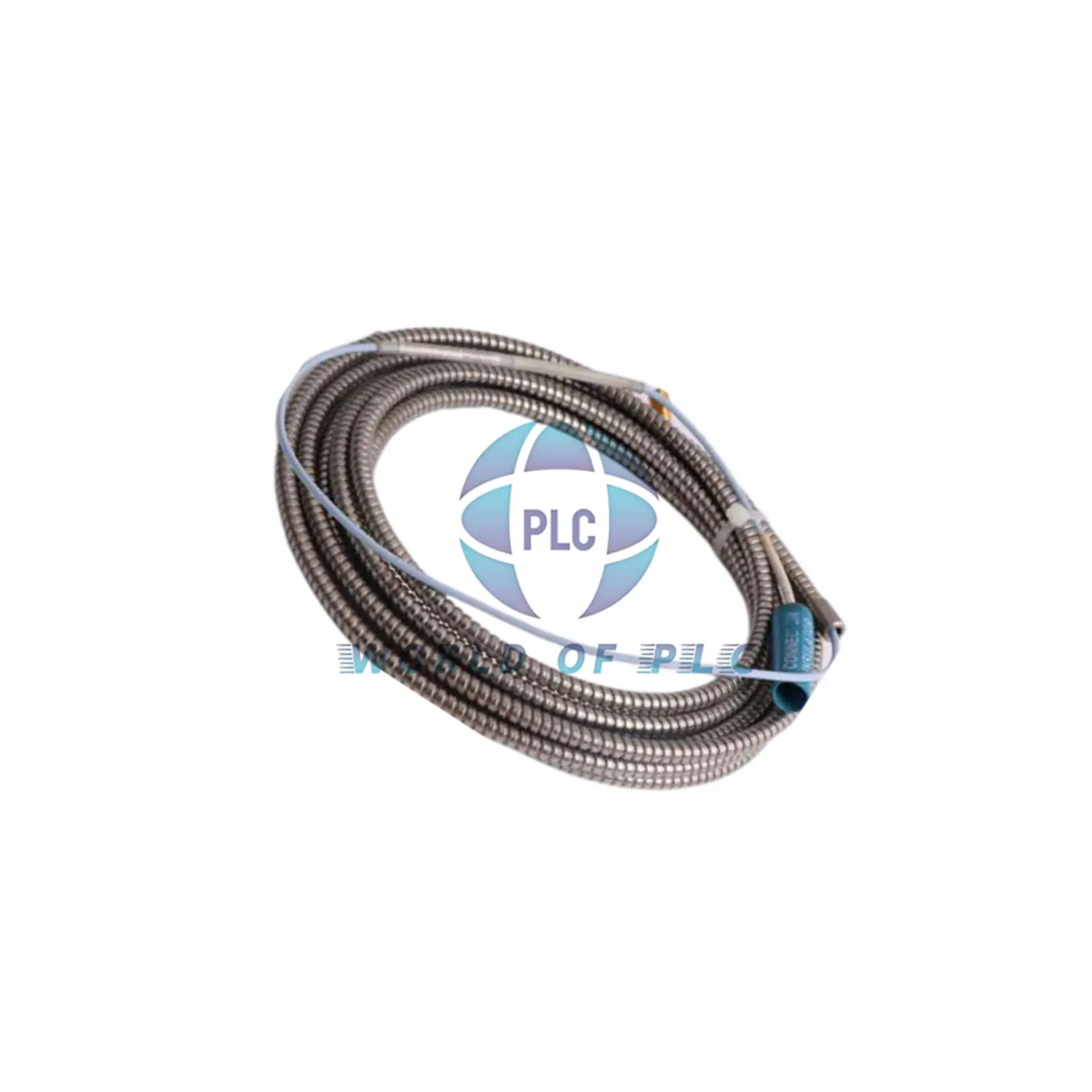

The Bently Nevada 330174-00-02-20-12-05 is a rugged 5mm proximity probe designed for precise vibration and position monitoring in industrial machinery. Featuring an M8x1 threaded stainless steel case and armored FluidLoc cable, it ensures reliability in harsh environments. The probe tip is made of durable polyphenylene sulfide (PPS), while the case uses AISI 304 SST for corrosion resistance. Ideal for rotating equipment, this probe includes a 2.0-meter cable with a Miniature Coaxial ClickLoc connector for secure attachment.
Technical Data
- Brand: Bently Nevada
- Model: 3300 Series (330174-00-02-20-12-05)
- Probe Diameter: 5mm
- Thread: M8x1
- Cable Length: 2.0 meters (6.6 feet)
- Connector: Miniature Coaxial ClickLoc (FluidLoc)
- Unthreaded Length: 0mm (Option: 00)
- Case Length: 20mm (Option: 02)
- Agency Approvals: Multiple (Option: 05)
Key Specifications
- Operating Voltage: -17.5Vdc to -26Vdc
- Output Resistance: 50Ω
- Probe Resistance: 7.88Ω ± 0.50 (2.0m cable)
- Temperature Range: -35°C to +177°C
- Tensile Strength: 222N (50 lbf)
- Case Torque: 5.1 N·m (recommended)
- Cable Bend Radius: 25.4mm (min)
Model Suffix Breakdown
The full model number 330174-00-02-20-12-05 includes critical configuration details:
- -00: 0mm unthreaded length
- -02: 20mm overall case length
- -20: 2.0-meter cable
- -12: Miniature Coaxial ClickLoc connector
- -05: Multiple agency approvals
Installation & Compatibility
- Designed for AISI 4140 steel targets.
- Optimal gap setting: 1.27mm (50 mils).
- Compatible with Bently Nevada 3300 monitoring systems.
- Ensure proper torque (5.1 N·m max) during installation.
Packaging & Warranty
- Includes 1x proximity probe with pre-attached cable.
- Weight: 0.323 kg.
- 12-month warranty against defects.
- Shipped via FedEx, UPS, or DHL.
