Product Brief – SCOUT140EX-02

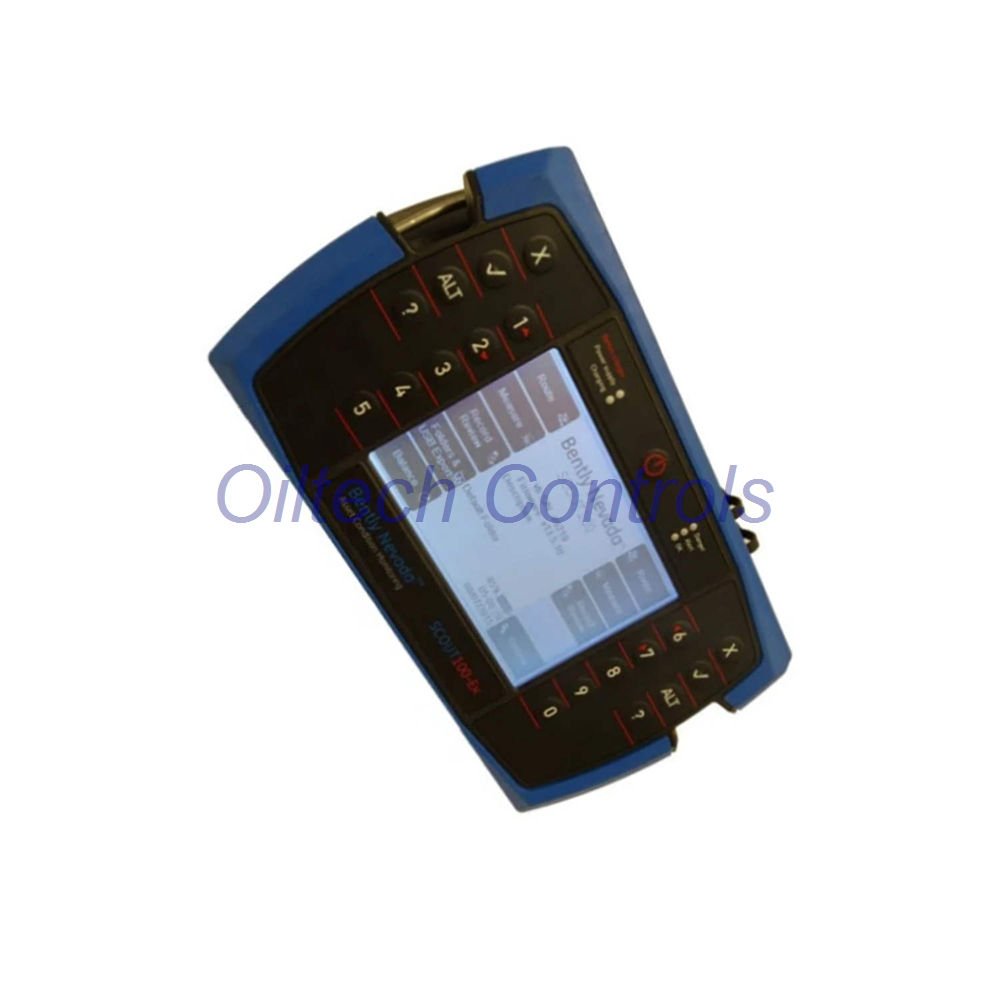

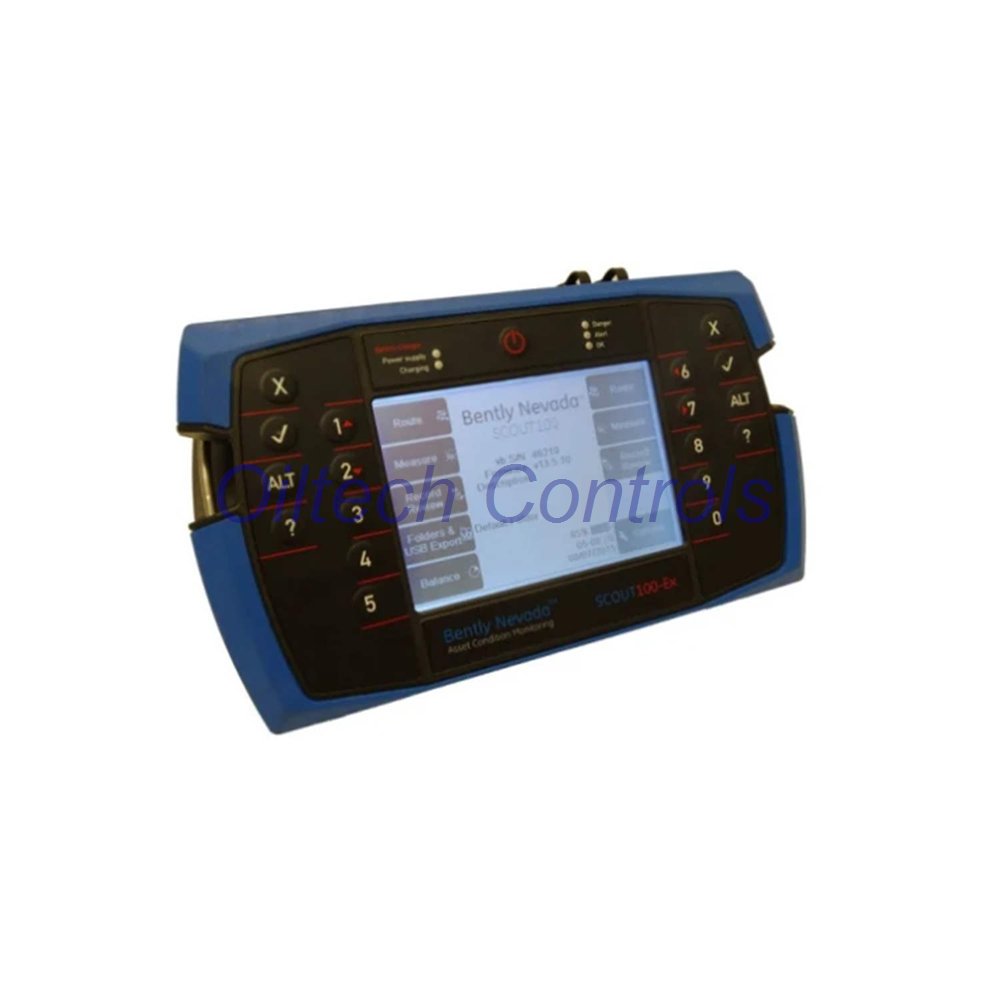

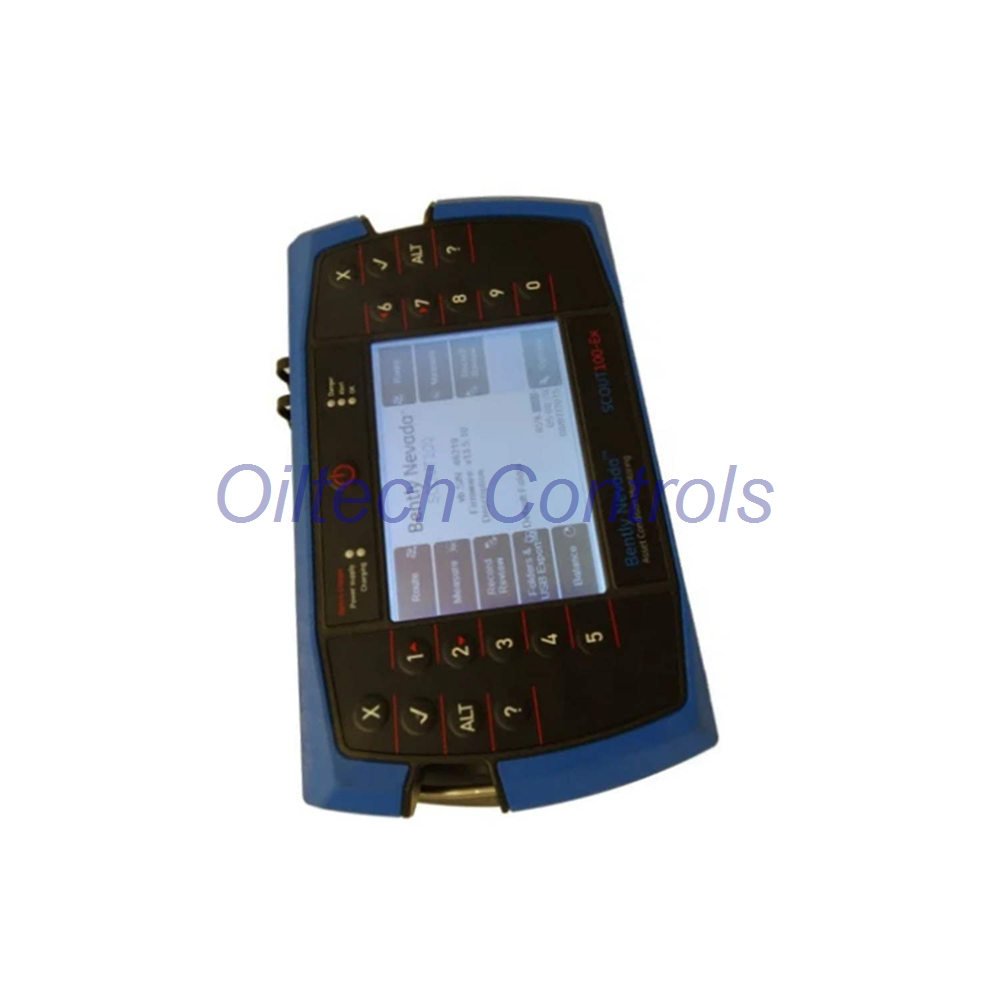

- SCOUT140EX-02 is a portable vibration data collector, analyzer, and balancer from Bently Nevada.
- Supports four-channel simultaneous data acquisition.
- ATEX Zone 2 and IECEx Zone 2 certified for hazardous areas.
- Includes 5-year hardware warranty.
- Works with System 1 software.
Key Features
- 4-channel on-route recordings.
- Two-plane balancing with up to 4 sensors.
- Unique 6Pack recording system.
- DC-coupled sensor support.
- Triax-enabled for tri-axial data.
- 1 GB memory, unlimited spectra storage.
- 10 hours battery life.
- 12,800 lines of resolution.
- 80 kHz Fmax.
- Time-synchronous averaging with tach input.
Advanced Analysis Capabilities
- Coast-down and runup analysis.
- Long time waveform recording.
- Modal impact testing.
- Cross channel spectrum (ODS).
- Export data in UFF format for ME’scope.
Technical Specifications
- Manufacturer: Bently Nevada
- Model: SCOUT140EX-02
- Type: Vibration Data Collector, Analyzer, Balancer
- Channels: 4 simultaneous sampling
- ADC: 24-bit
- Fmax: 80 kHz
- Resolution: 12,800 lines
- Dynamic Range: >95 dB
- Accuracy: ±1% of reading
- Operating Temp: -10 to 50°C
- Protection: IP65, 1.2m drop rated
- Sensor Inputs: 1x BNC, 1x LEMO (CH2/CH3/CH4)
Sensor Compatibility
- Accelerometer, velocity, displacement sensors.
- Current and voltage output sensors.
- 4-20 mA sensors.
- DC-coupled: 0 to 20V, -10 to 10V, -20 to 0V.
- AC coupled: 16V peak-peak.
- Excitation current: 0 or 2.2 mA configurable.
- Sensor detection warns for short/open circuit.
Tachometer & Speed
- Laser sensor with reflective tape, range 10cm to 2m.
- Contact, TTL pulse, Keyphasor support.
- Speed range: 10 to 300,000 RPM.
- Accuracy: ±0.1%.
Data Storage & Export
- Dual 1GB non-volatile flash memory.
- Database mirror copy on second flash.
- Export: Ascent, XML, UFF, System 1.
- USB host port for external memory.
Environmental & Physical
- Operating: -10 to 50°C.
- Storage: -20 to 60°C, 95% RH.
- IP65 rated, rugged case.
- 4ft drop tested (MIL-STD-810F).
- Lightweight with neck strap and Sensor Keeper.
Oiltech Controls Insight
- “Perfect for field balancing and route-based data collection.”
- “ATEX certification makes it safe for refinery and petrochemical use.”
- “The 80kHz Fmax captures high-frequency faults clearly.”
Typical Applications
- Gas and steam turbine vibration monitoring.
- Compressor and pump condition monitoring.
- Motor bearing analysis.
- Refinery and petrochemical rotating equipment.
- On-site dynamic balancing.
- Modal analysis and structural testing.
Warranty & Shipping
- Warranty: 12 months (standard).
- Shipping: 24–28 hours dispatch.
- Carriers: FedEx, UPS, DHL worldwide.
Frequently Asked Questions
- What is the maximum Fmax?
80 kHz with 12,800 lines resolution. - Is this ATEX certified?
Yes, ATEX Zone 2 and IECEx Zone 2 compliant. - How many channels can record simultaneously?
Up to 4 channels on-route. - Experience: How long does battery last?
10 hours typical, enough for full shift. - Experience: Can I export to ODS software?
Yes, UFF export for ME’scope and other ODS tools. - Selection guide: 140EX vs 140?
EX version adds ATEX certification for hazardous zones.
