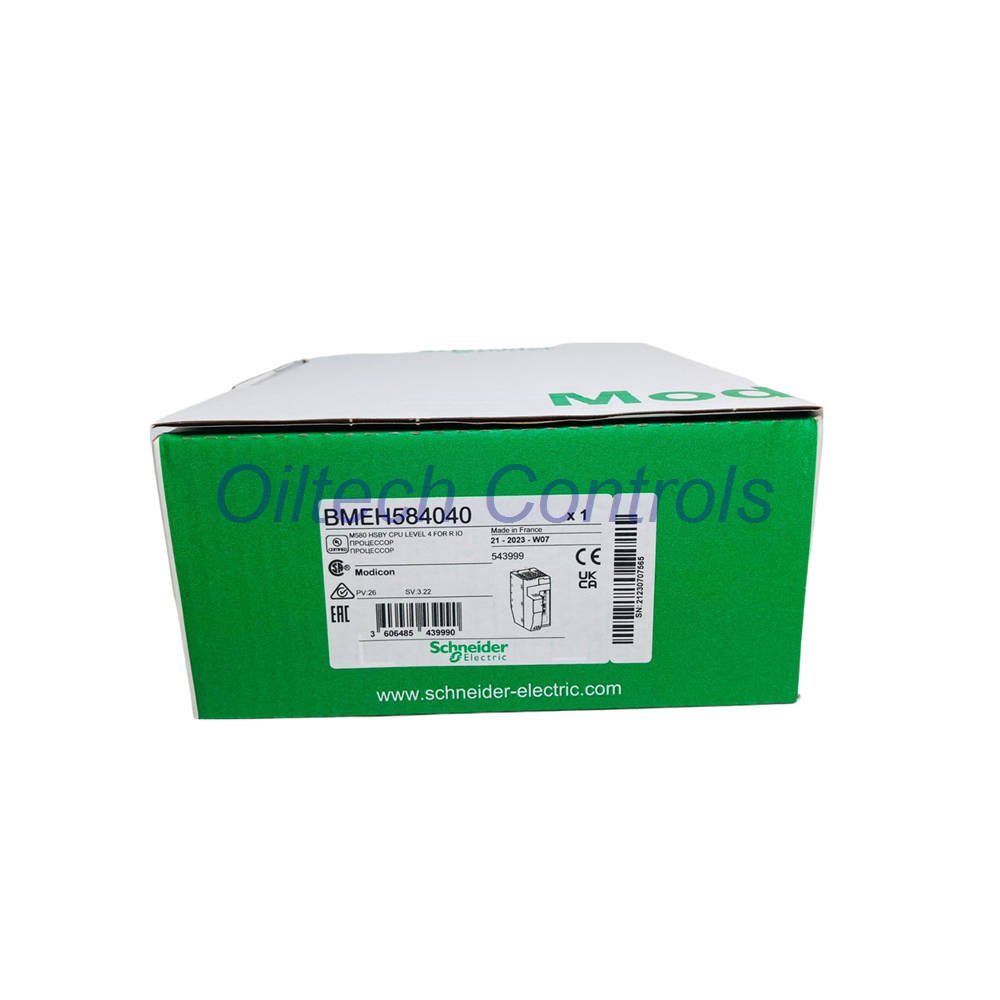

BMEH584040 Schneider Modicon M580 Redundant Processor Module

BMEH584040 Schneider Electric Modicon M580 Redundant Processor Module

The Schneider Electric BMEH584040 stands as a high-availability Redundant processor module. It belongs to the advanced Modicon M580 ePAC series. This specialized CPU delivers dependable control for large 16 remote IO racks of X80 and Quantum IO [TAA] systems. It features a dedicated 1 Ethernet HSBY port for seamless hardware tracking. Industrial networks can manage up to 61 Ethernet devices concurrently with high stability.

You can read the official technical reference material to optimize your system configuration. Please use the secure link below to download your documentation files.

Download Schneider BMEH584040 Instruction Manual and Datasheet

Oiltech Controls’s Insight

• The BMEH584040 offers true native Ethernet routing directly across the backplane structure.
• It eliminates proprietary synchronization hardware by using standard high-speed Ethernet fiber links.
• The design supports fast bumpless switchover within milliseconds during hardware faults.
• It perfectly manages critical automation infrastructure needing zero annual process downtime.
• For live inventory availability and pricing, email our engineering desk at info@oiltechcontrols.com today.

Target Equipment Compatibility

• Modicon X80 I/O: Connects natively to premium X80 drop modules via Ethernet backplanes.
• Legacy Quantum I/O: Supports older Quantum field equipment using dedicated TAA remote drop adapters.
• Distributed Hardware: Communicates smoothly with up to 64 distinct field devices on a single ring.
• Network Components: Drives up to 16 Ethernet communication modules and 8 AS-Interface modules.

Core Technical Specifications

• Brand Name: Schneider Electric
• Model Number: BMEH584040
• Product Range: Modicon M580 Redundant Series
• Program Memory: 16 MB integrated memory for system logic application.
• Data Memory Storage: 2048 kB internal data RAM with 4 GB expandable flash.
• Processing Performance: Processes 40 Kinst/ms for pure Boolean code execution.
• Arithmetic Speed: Runs 30 Kinst/ms for mixed fixed arithmetic control loops.
• Current Draw: Consumes 360 mA maximum at 24 V DC backplane power.
• MTBF Rating: Reaches 650,000 hours of continuous reliable field operation.
• Net Weight: Weighs exactly 0.849 kg (1.872 lb) for light rack mounting.

Embedded Cybersecurity Framework

• Holds official Achilles Level 2 Certification for elite network resilience.
• Features active DoS prevention, port hardening, and a built-in stateful firewall.
• Supports secure communication protocols including IPSec, TLS, and HTTPS encryption.
• Maintains safe operation via encrypted firmware signatures and encrypted password validation layers.
• Provides continuous logging through dedicated audit trails, Syslog protocols, and SNMP diagnostics.

LED Diagnostic Matrix

• PRIM LED: Indicates the local BMEH584040 is acting as the Primary online controller.
• STBY LED: Shows the local processor is in healthy Standby backup mode.
• REMOTE RUN LED: Confirms that the remote peer twin CPU is running perfectly.
• Hsby Diag LED: Monitors real-time status of the Hot Standby network sync link.
• A / B LEDs: Verify the physical slot configuration identity of each processor module.
• Core Flags: RUN, ERR, and I/O LEDs give instant hardware error alerts.
• Override Flag: FORCED IO LED illuminates when users force physical I/O variables.

Environmental Tolerance Limits

• Operating Temperatures: Runs from 0 to 60 °C (32…140 °F) without fans.
• Storage Environments: Withstands safe warehouse storage from -40 to 85 °C (-40…185 °F).
• Relative Humidity: Endures 5% to 95% non-condensing moisture levels at 55 °C.
• Mechanical Rigidity: Absorbs 3 gn vibration forces and 30 gn mechanical shock safely.
• Protection Rating: Uses an open IP20 rated enclosure for integrated panel mounting.

Shipping, Packing, and Warranty Terms

• Dispatch Window: We guarantee secure factory warehouse shipment within 24-28 hours.
• Express Logistics: Fast global air transport through premium couriers like FedEx, UPS, and DHL.
• Package Contents: 1 x original Schneider Electric BMEH584040 module inside a protective box.
• Warranty Term: Includes our strict 12 months warranty coverage against manufacturer failures.
• Instant Support: Chat with our global logistics team on WhatsApp at +86 158 8020 0923 now.

Frequently Asked Questions (FAQ)

• Q: Can I use different firmware versions on the Primary and Standby BMEH584040 processors?
  A: No, engineering field experience proves both redundant modules must run identical firmware versions to maintain synchronization.
• Q: What happens if the fiber optic HSBY synchronization cable is disconnected during runtime?
  A: Both processors will attempt to claim the Primary role, creating a split-brain error state in your system.
• Q: How do I choose between buying the 16MB BMEH584040 and the larger 24MB BMEH585040?
  A: Review your application code size; the 16MB BMEH584040 fits mid-to-large projects perfectly and reduces deployment costs.
• Q: Does this redundant CPU support online application changes without stopping the machinery?
  A: Yes, you can download verified software changes to the Standby processor safely while the Primary runs live.
• Q: Does the BMEH584040 require a special dedicated slot on the M580 main backplane?
  A: Yes, you must install it into the designated dual-power CPU slots on specialized Ethernet racks.
