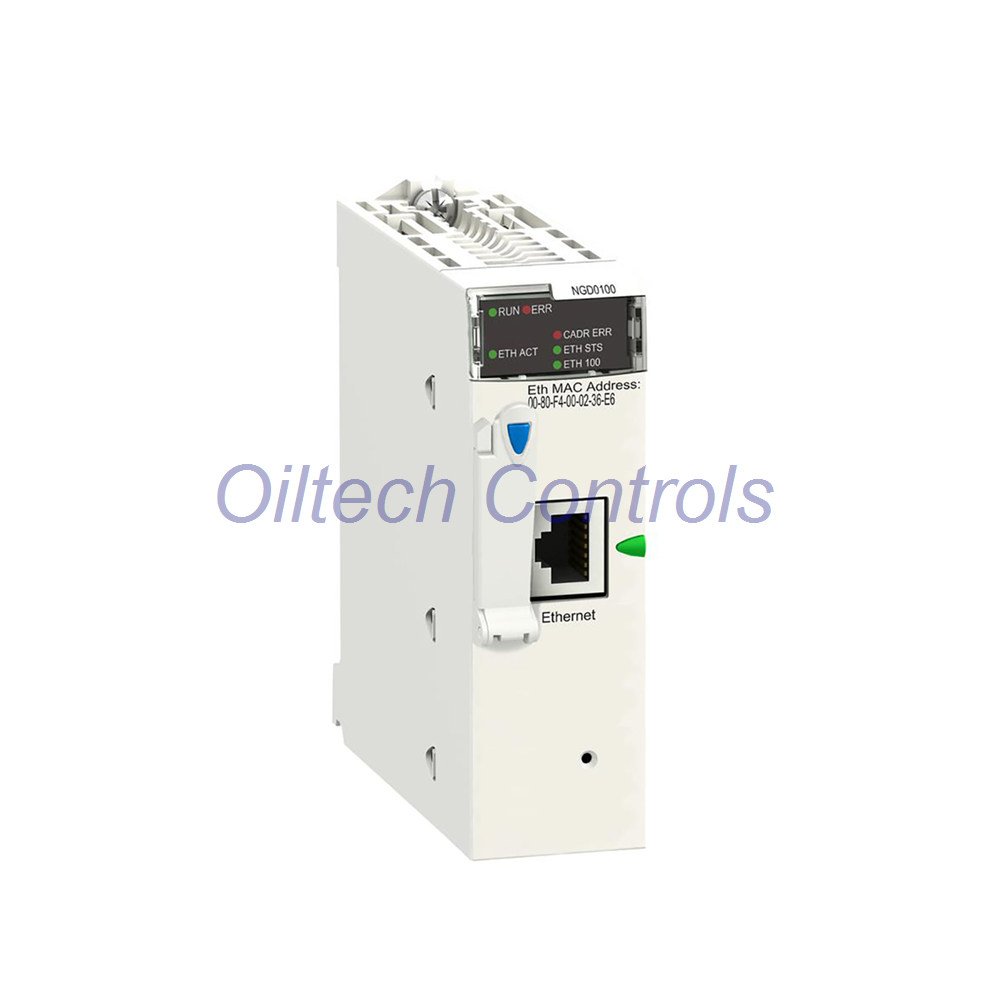

BMXNGD0100 Modicon M580 Ethernet Communication Module

Oiltech Controls’s Insight

• The BMXNGD0100 serves as a backbone module for deterministic data sharing across decentralized industrial systems.
• Its specialized Global Data service allows hardware groups to broadcast variables simultaneously, minimizing network overhead compared to standard polling methods.
• Engineering teams prioritize this module for time-critical interlocking and peer-to-peer processor coordination where deterministic latency is required.
• The onboard diagnostic LED grid provides hardware-level troubleshooting, immediately separating internal memory errors from external physical layer network faults.

Hardware Compatibility & Targeted Systems

• Exclusively targets Schneider Electric Modicon M580 automation platforms and local Ethernet backplanes.
• Interfaces with Modicon X80 I/O drop layouts and remote sub-rings.
• Integrates with distributed SCADA nodes, HMI terminals, and field devices operating on Modbus TCP fabrics.

Technical Specifications

Commercial Logistics & Packaging Data

• Shipping list includes one original, factory-sealed **BMXNGD0100** network module with memory card.
• Protected by a dependable, full 12-month warranty policy matching strict industrial procurement standards.
• Orders process quickly with guaranteed dispatch within 24-28 hours from inventory confirmation.
• Global air freight fulfillment managed via priority channels including FedEx, UPS, and DHL.

Procurement & Engineering Support

• Submit corporate purchase orders and requests for volume pricing to our office at info@oiltechcontrols.com.
• Connect directly with a field systems specialist using our WhatsApp Engineering Chat.
• Call our technical service line at +86 158 8020 0923 for immediate component verification or architecture inquiries.

Expert Selection & Application FAQ

• How does the Global Data service on this module differ from standard Modbus TCP execution?
• Global Data utilizes a subscriber/publisher multicast mechanism for real-time cyclic data sharing among peer PLCs, whereas Modbus TCP relies on explicit master/slave query-response transactions.
• What configuration step is most critical when replacing an existing module in a running system?
• Ensure the pre-loaded BMXRWSC016M memory card matches the network configuration variables of the target sub-net before initiating a hardware cold restart via the front reset switch.
• Can this specific network card be hot-swapped while the M580 rack is fully energized?
• While the M580 platform allows hot-swapping on certain modules, it is best engineering practice to cut rack power or verify application state to avoid communication interruptions on linked peer nodes.
• Does the TC protective treatment make this module suitable for outdoor installation?
• The TC coating protects internal circuits against tropical humidity and mild corrosive elements, but the IP20 housing requires installation within a climate-controlled, sealed electrical enclosure.
• What diagnostic step should I take if the CARD ERR LED turns solid red during initialization?
• Isolate the system, remove the Flash memory card, inspect the gold contacts for debris, re-insert firmly, and press the cold restart push-button to cycle internal diagnostics.
