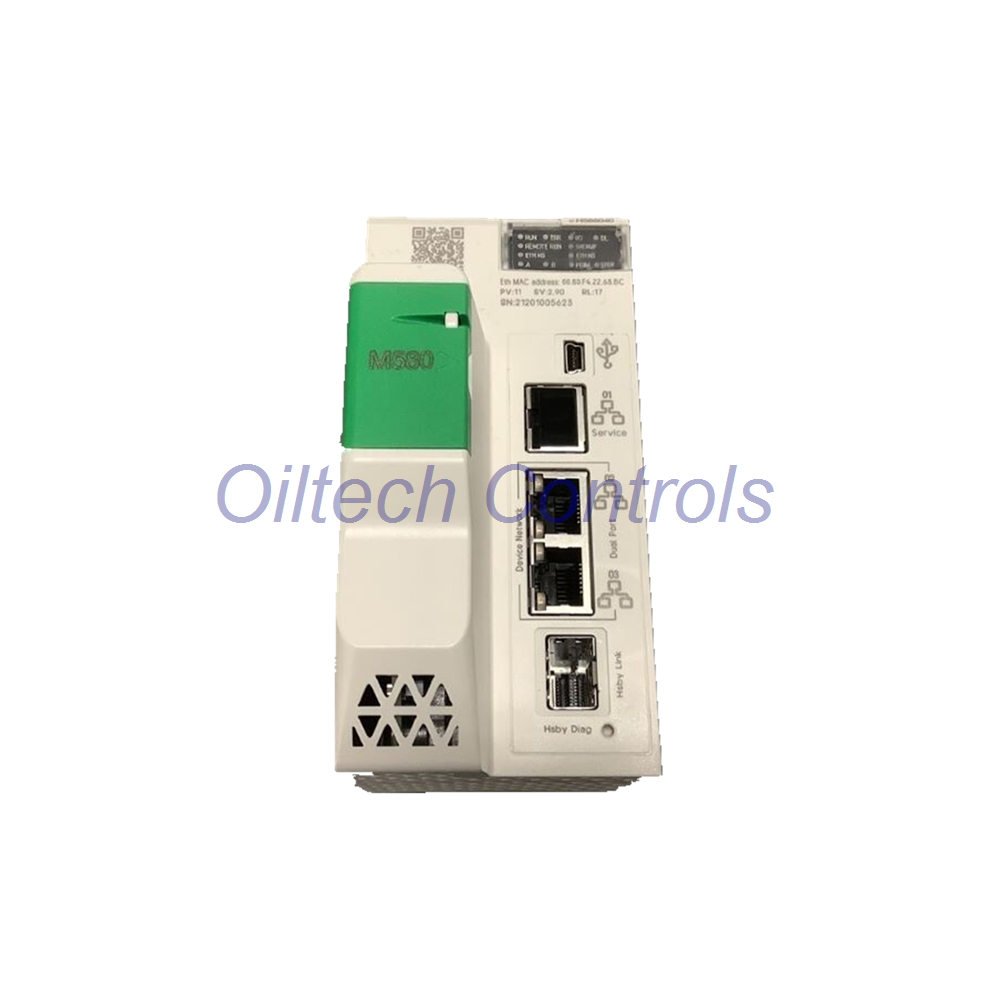

BMEH586040 Schneider Electric Modicon M580 Redundant Processor Module

Technical Profile: BMEH586040 Architecture

• Brand: Schneider Electric
• Model: BMEH586040
• Function: Redundant Processor (Hot Standby)
• Memory: 64 MB Program/Data, 4096 kB HSBY Data
• Processor Speed: 40-50 Kinst/ms
• Connectivity: Dedicated HSBY Port, 2x Ethernet Device Ports, 1x Service Port
• Environmental: Class I Div 2, IP20, 0-60°C Operating Temp

Oiltech Controls’s Insight

• The BMEH586040 leverages “Hot Standby” architecture to prevent downtime in critical processes.
• It mirrors system data in real-time, allowing instantaneous failover between primary and standby processors.
• Engineers prefer this module for its seamless integration with existing Quantum and X80 I/O architectures.
• The cybersecurity suite (Achilles, IPSec, Firewall) meets stringent modern industrial network standards.

Ideal Application Domains

• Oil and Gas midstream pipeline monitoring.
• Water and wastewater treatment plant control loops.
• Continuous chemical processing facilities.
• Critical energy grid infrastructure.
• Large-scale manufacturing motion control.

Service Excellence & Logistics

• Shipping: Rapid 24-28 hour processing times.
• Logistics: Global delivery via FedEx, UPS, and DHL.
• Warranty: Full 12-month quality assurance on all units.
• Technical Support: info@oiltechcontrols.com
• Contact/WhatsApp: +86 158 8020 0923

Expert FAQ & Selection Guide

• • Q: Why choose the BMEH586040 over a standard M580 processor?
    A: Select the BMEH586040 if your application requires zero-downtime failover; it includes an integrated HSBY port for secondary processor synchronization.

• • Q: How do I ensure system stability during a switchover?
    A: Ensure the HSBY link cable is certified and maintained; the processor performs automatic data synchronization using the 4096 kB dedicated HSBY memory.

• • Q: Can I mix Quantum and X80 I/O drops with this CPU?
    A: Yes, this processor is designed specifically to bridge the legacy Quantum environment with modern X80 I/O platforms.

• • Q: What is the primary indicator of a successful redundancy sync?
    A: Observe the PRIM and STBY LEDs; a stable “Primary” and “Standby” indicator status confirms your redundancy link is healthy.

• Q: Is special configuration needed for the 64MB memory?
  A: No, standard Unity Pro/EcoStruxure Control Expert configuration handles memory mapping; focus on optimizing the master/fast tasks for scan time efficiency.
