BMEP584020 Schneider Modicon M580 BMEP584020 Standalone Processor

Oiltech Controls Review & Engineering Insight

The Schneider Electric BMEP584020 represents the core processing tier of the ePAC Modicon M580 architecture, specifically optimized for high-density, network-native plant automation. Built to eliminate communication bottlenecks, its integrated Ethernet backbone manages deterministic I/O routing while embedded cyber-defense mechanisms safeguard critical infrastructure profiles. This unit bridges high-performance computing speeds with strict fieldbus stability for deterministic multi-variable control.

Core Hardware & Processing Metrics

• Processor Type: Standalone ePAC module for native Ethernet architectures
• Execution Velocity: 40 Kinst/ms for pure Boolean logic operations
• Mixed Execution: 30 Kinst/ms for 65 percent Boolean plus 35 percent fixed arithmetic
• Integrated Program Memory: 16 MB RAM dedicated to runtime code storage
• System Data Space: 2048 kB RAM allocated for variable logging and system state arrays
• Expandable Storage: 4 GB Flash memory via secure card slot for data logging archives
• Power Requirements: Draws a low 295 mA at 24 V DC directly from the internal chassis rail
• System Reliability: Rated for 775,000 hours MTBF ensuring maximum control loop uptime

Network Routing & Local I/O Capacity

• Chassis Capacity: Manages up to 8 local I/O racks simultaneously
• Discrete Node Limit: Addresses up to 4096 local discrete channels across the backplane
• Analog Node Limit: Channels up to 1024 local analog inputs/outputs for instrumentation loops
• Application Specific Channels: Supports 144 local rack channels including SSI encoder interfaces and counters
• Ethernet Device Network: Dual TCP/IP Device Ports for deterministic DIO scanning topologies
• Dedicated Service Port: Single TCP/IP Service Port for programming, diagnostics, and human-machine communication
• Distributed Network Capacity: Interfaces directly with up to 128 distributed equipment nodes
• Local Communication Co-processors: Accommodates up to 4 Ethernet modules and 8 AS-Interface network cards

Hardware Compatibility & Field Equipment Pairing

• Engineered for Modicon X80 backplanes, including dual-bus Ethernet and X-bus configurations
• Integrates with field instruments via HART transparent routing protocols across analog I/O lines
• Connects directly with variable speed drives and motion controllers via standard Ethernet/IP or Modbus TCP
• Pairs with high-speed remote I/O drops over deterministic ring topologies using standard DIO scanners

Cybersecurity & Network Defense Layers

• Industry Certification: Level 1 Achilles certified for robust industrial communication security
• Traffic Protection: Embedded firewall with active Denial of Service (DoS) prevention mechanisms
• Encryption Protocols: Network communications hardened with IPSec and Transport Layer Security
• Operational Auditing: Real-time Syslog protocol tracking alongside deep-level software audit trails
• Access Hardening: Cryptographic firmware signatures coupled with strict port hardening and password protocols

Environmental Tolerances & Physical Specifications

• Operating Range: Functional from 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
• Storage Limits: Sustains sub-zero conditions from minus 40 up to 85 degrees Celsius safely
• Altitude Limits: Operates up to 2000 meters without thermal or dielectric breakdown derating
• Mechanical Durability: Withstands 30 gn shock resistance and 3 gn vibration forces
• Enclosure Ingress Classification: Rated at IP20 protection for cleanroom and cabinet environments
• Net Module Weight: Exactly 0.849 kilograms (1.872 pounds) for low chassis strain

Diagnostic LED Indicators

• RUN: Green indicator verifies active, error-free CPU code execution states
• ERR: Red indicator illuminates during active internal processor or critical system faults
• I/O: Red indicator signals peripheral communications or physical I/O module fault status
• DL: Green light tracks active firmware downloads or application program transfers
• BACKUP: Red alert displays active memory card failures or internal CPU flash faults
• ETH MS / Eth NS: Bi-color indicators track local port configuration profiles and network health states

Logistics, Dispatch & Extended Warranty

• Processing Window: Guaranteed factory packaging dispatch within 24 to 28 hours from verification
• Express Logistics Carriers: Express door-to-door transit via FedEx, UPS, and DHL networks

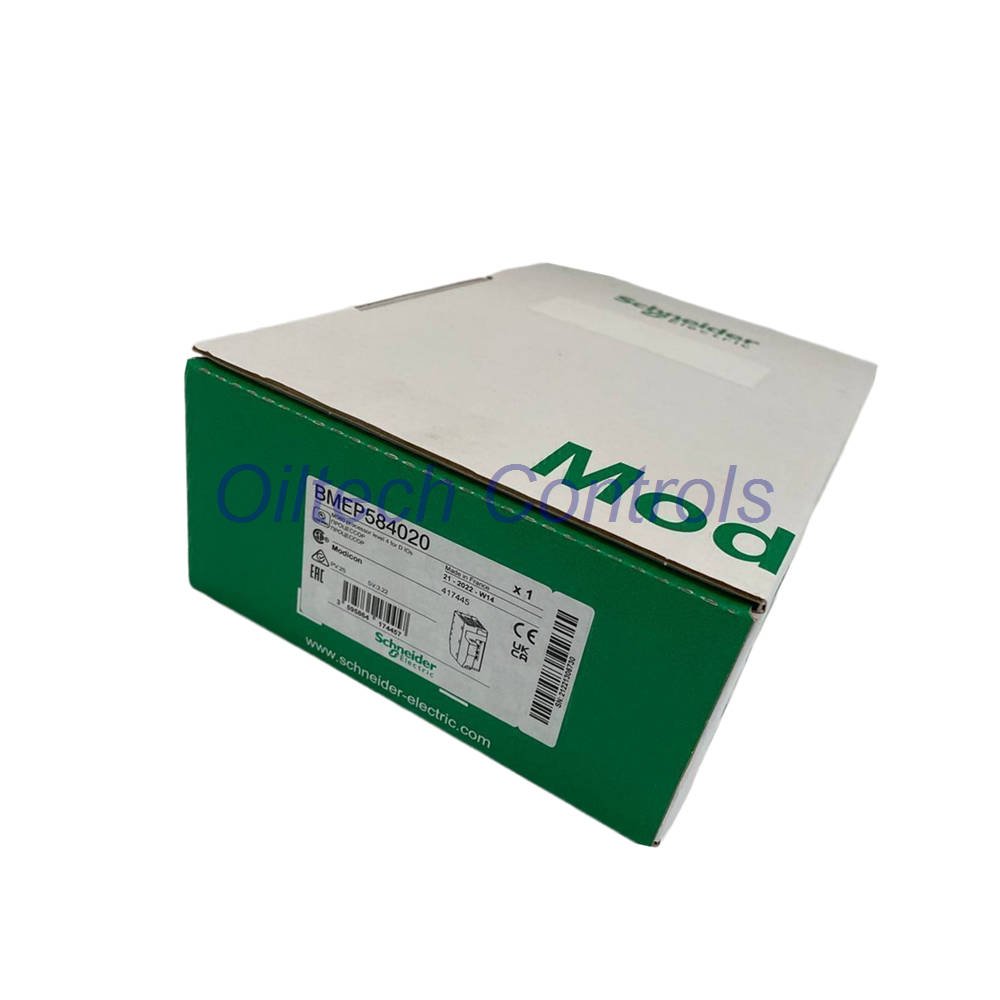

• Packaging Details: Shipped as a single unit with dimensional specifications of 9x18x25 centimeters
• Gross Package Weight: Total shipping weight calculates to 874 grams including structural carton
• Protection Clause: Includes a comprehensive 12-Month Quality Warranty period covering component manufacturing defects
• Technical Inquiries: Email our commercial desk at info@oiltechcontrols.com for real-time project quotes
• Direct Assistance: Contact our engineering hotline instantly on WhatsApp via +86 158 8020 0923

Professional Technical FAQ & Selection Guide

• Question: How do I choose between the BMEP584020 and lower tier BMEP582020 modules for highly distributed systems?
  Answer: Select this module if your node architecture exceeds 64 distributed devices or requires heavy Ethernet I/O routing. The BMEP584020 doubles the memory and handles up to 128 distributed nodes efficiently under heavy load.
• Question: What specific engineering precautions must be taken regarding power isolation during heavy local rack I/O utilization?
  Answer: The module draws 295mA directly from the rack backplane. Engineers must calculate total current consumption for all 8 racks using the Schneider Unity Pro/Control Expert power consumption tool to prevent backplane sag.
• Question: Does this standalone processor support hot-swapping or Bumpless Hot Standby topology changes?
  Answer: No, this specific part is a standalone CPU. For high-availability architectures requiring bumpless switchovers, you must source the dual-processor BMEH584040 series instead.
• Question: How does the Achilles Level 1 certification impact legacy SCADA polling over the Modbus TCP service port?
  Answer: It protects the BMEP584020 against denial-of-service storms by prioritizing core control tasks over excessive network polling. If legacy SCADA causes packet floods, the CPU hardens the port without crashing the controller logic.
• Question: What are the application limits when operating this unit at high altitudes between 2000 and 5000 meters?
  Answer: High-altitude operation requires derating variables due to reduced air density. You must apply thermal derating to the ambient operating temperature limits and down-rate insulation thresholds according to IEC 61131-2 guidelines.
