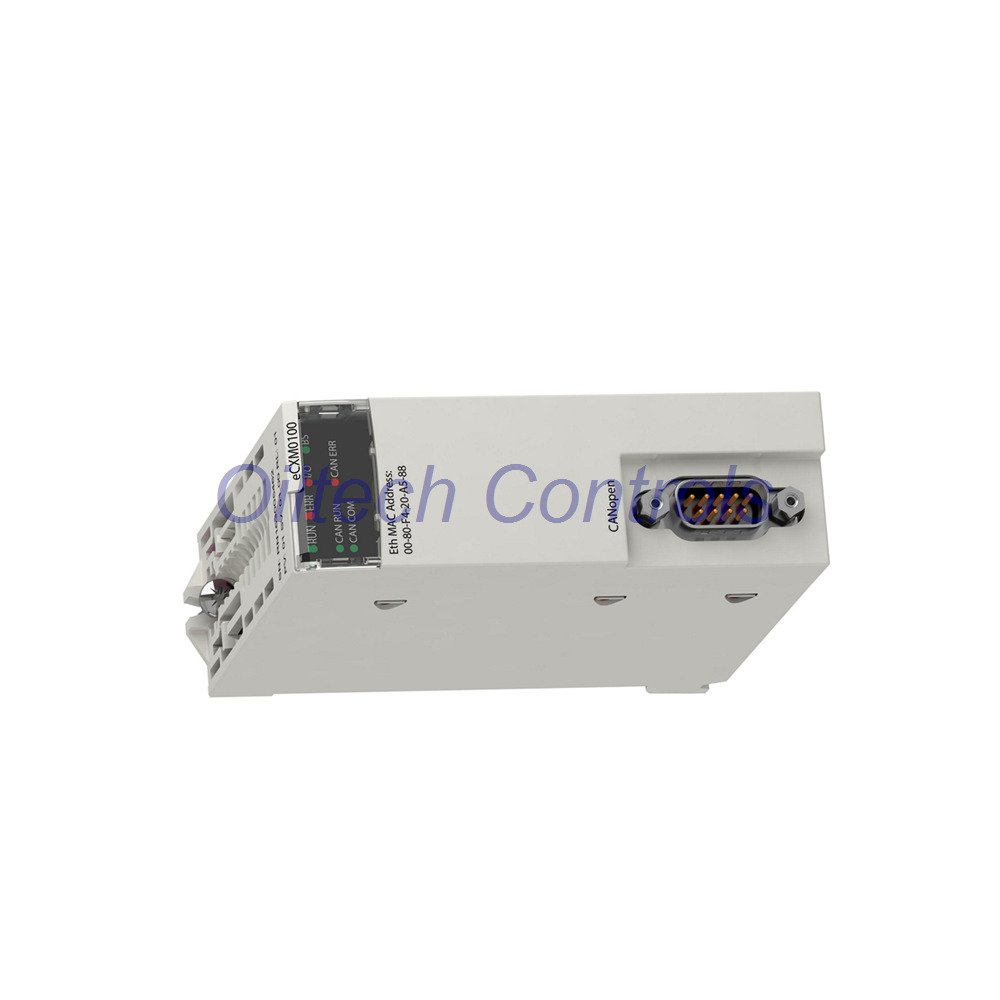

The BMECXM0100 marks a critical link for automation engineers migrating legacy fieldbuses into modern Ethernet-based backplanes. Operating on the Modicon X80 platform, this module acts as a bridge that injects deterministic CANopen communication module control directly into the M580 PLC process loop. Unlike generic gateways, it utilizes a dedicated hardware-level CSMA/CA CANopen access method to manage up to 63 server devices natively. The integration eliminates heavy processor overhead on the main CPU by handling cyclical object protocol layers independently. It uses non-return-to-zero (NRZ) transmission format over twisted shielded pairs to secure data integrity down to the physical layer. For plant upgrades, this module is the most direct path to maintaining instrumentation topology without rewriting entire control philosophies.
Technical Specifications
- Brand: Schneider Electric
- Model: BMECXM0100
- Product Range: Modicon X80 Integration Platform
- Protocol Profile: CiA DSP 301 V4.02 Compliance
- Host Compatibility: Dedicated M580 PLC Backplane Systems
- Physical Port: Heavy-Duty DB9 Connector Interface
- Internal Supply Voltage: 24 V DC Internal System Power
- Current Consumption: 100 mA Rated Operating Current
- Module Dimensions: Standard Backplane Slot Format
- Operating Environmental Scope: 0 to 60 degrees Celsius Active Range
- Storage Temperature Tolerances: -45 to 85 degrees Celsius Bound
- Humidity Limitations: 10 to 95 percent Non-Condensing
- Maximum Operational Altitude: Less than or equal to 2000 meters
- Compliance Directives: 2014/35/EU Low Voltage and 2014/30/EU EMC Standards
Network Distance & Baud Rate Matrix
- High-Speed Profile 1: 1 Mbit/s Bandwidth across a maximum 20m segment without repeater units
- High-Speed Profile 2: 500 kbit/s Bandwidth across a maximum 100m segment without repeater units
- Medium Distance 1: 250 kbit/s Bandwidth scaling to 250m line runs with active repeaters
- Medium Distance 2: 125 kbit/s Bandwidth scaling to 500m line runs with active repeaters
- Long-Haul Trunk 1: 50 kbit/s Bandwidth supporting up to 1000m runs via bus repeaters
- Long-Haul Trunk 2: 20 kbit/s Bandwidth extending to 2500m maximum networks with repeater hardware
Target Equipment Suitability
- Distributed variable speed drive clusters across multi-tier conveyor networks
- Remote discrete pneumatic valve manifold configurations inside packaging lines
- Hydraulic proportional valve controller networks for heavy press operations
- Process instrumentation arrays in hazardous areas requiring isolated bus connections
- Sub-assembly integration points for legacy machinery running CiA 301 nodes
Logistics & Commercial Terms
- Dispatch Lead Time: Guaranteed processing and dispatch within 24 to 28 hours from order confirmation
- Global Delivery Channels: Standard air express shipping fulfilled by FedEx, UPS, and DHL
- Hardware Protection Term: Includes our comprehensive 12-month industrial warranty protection plan
- Standard Unit Pack: 1 PCE weighing 180.000g, sized at 5.4cm x 11.5cm x 12.1cm
- Bulk Logistics Container: S02 box containing 15 discrete pieces weighing 3.255kg total
Documentation & Support Procurement
- Access our complete engineering file storage to download technical deployment schemes.
- Review our network engineering application notes to configure your first 63-node system.
- Request direct custom step files for spatial cabinet layouts through our sales interface.
