BMEP585040 Schneider Electric Modicon M580 Processor Module
The Schneider Electric BMEP585040 stands as a premium Level 5 Processor module. It powers the advanced Modicon M580 automation platform. This high-performance CPU manages complex Remote automation topologies efficiently. It embeds native Ethernet communication directly into the backplane architecture. Large industrial manufacturing plants rely on this platform for precise process control.
You can optimize your engineering workflow with official technical documentation. We highly recommend downloading the reference files before installation.
Download Schneider BMEP585040 User Manual and Datasheet Here
Technical Specifications
| Brand | Schneider Electric |
| Model | BMEP585040 |
| Series Range | Modicon M580 (Level 5) |
| Program Memory | 24 MB integrated RAM |
| Data Storage | 4096 kB data RAM with 4 GB expandable flash |
| Execution Speed | 40 Kinst/ms for 100% Boolean operations |
| Local Rack Capacity | Supports 8 racks maximum |
| Discrete I/O Capacity | Up to 5120 local channels |
| Analog I/O Capacity | Up to 1280 local channels |
| Application Channels | 180 specific channels for counting and motion |
| Remote I/O Stations | 31 remote drops with 2 racks per drop |
| Distributed Equipment | Up to 64 network devices |
| Current Consumption | 295 mA at 24 V DC |
| MTBF Reliability | 600,000 hours of continuous runtime |
| Net Weight | 0.849 kg unit mass |
Network Connectivity and Topology
- The module features 1 Ethernet TCP/IP port specifically for engineering service access.
- It provides 2 Ethernet TCP/IP ports to manage device network equipment.
- One USB type mini B port allows direct laptop connection for local programming.
- The unit supports 6 Ethernet communication modules and 8 AS-Interface modules.
- Integrated communication services include a high-speed DIO scanner and RIO scanner.
- The architecture offers HART protocol capabilities for advanced field instrument management.
Advanced Diagnostics and Status LEDs
Industrial operators can execute fast troubleshooting via 8 front-panel status indicators:
- RUN LED shows a solid green light during normal processor execution.
- ERR LED displays a sharp red light during processor or system faults.
- I/O LED indicates a red light when an I/O module failure occurs.
- DL LED flashes green when a software download is in progress.
- BACKUP LED activates red during memory card or flash errors.
- ETH MS LED monitors the current Ethernet port configuration status.
- ETH NS LED tracks real-time Ethernet network communication status.
- FORCED IO LED illuminates green when users override physical I/O values.
Environmental Tolerance and Durability
- Temperature Range: Operates perfectly from 0 to 60 °C in industrial control rooms.
- Storage Range: Endures cold or hot storage environments from -40 to 85 °C safely.
- Vibration Resistance: Withstands continuous mechanical vibrations up to 3 gn.
- Shock Resistance: Absorbs severe mechanical shock impacts up to 30 gn.
- Operating Altitude: Performs up to 2000 meters, or 5000 meters with standard derating.
- Humidity Levels: Tolerates 5% to 95% non-condensing relative humidity at 55 °C.
- Enclosure Protection: Features a compact IP20 rated finger-safe industrial housing.
System Compatibility and Installation Guide
- The Modicon M580 backplane provides internal power supply directly to the BMEP585040.
- The application structure manages 1 periodic fast task and 128 event tasks.
- It runs 1 cyclic master task and 2 auxiliary tasks simultaneously.
- The controller processes accurate time stamping for precise sequence of events.
- For commercial inquiries or rapid quotes, email info@oiltechcontrols.com today.
Standards and Safety Certifications
- Complies fully with EN 61131-2 and EN/IEC 61010-2-201 control system standards.
- Meets EN/IEC 61000-6-5 interface type 1 and type 2 electromagnetic requirements.
- Holds EN/IEC 61850-3 location G certification for electrical substation installation.
- Carries CE, UL, CSA, RCM, and EAC regulatory approval marks.
- Approved for Merchant Navy applications under rigorous marine operating conditions.
- Certified for Hazardous Location Class I Division 2 explosive gas atmospheres.
Typical Application Scenarios
The Schneider Electric BMEP585040 is ideal for critical infrastructure and heavy manufacturing. Engineers deploy this CPU in large water treatment plants and mining operations. It manages massive distributed control systems that require high network availability. The module also runs high-speed packaging lines and oil refinery applications.
Shipping, Packaging, and Warranty
- We ship hardware globally using premium express couriers like FedEx, UPS, and DHL.
- For instant logistics tracking or rush shipments, message us via WhatsApp at +86 158 8020 0923.

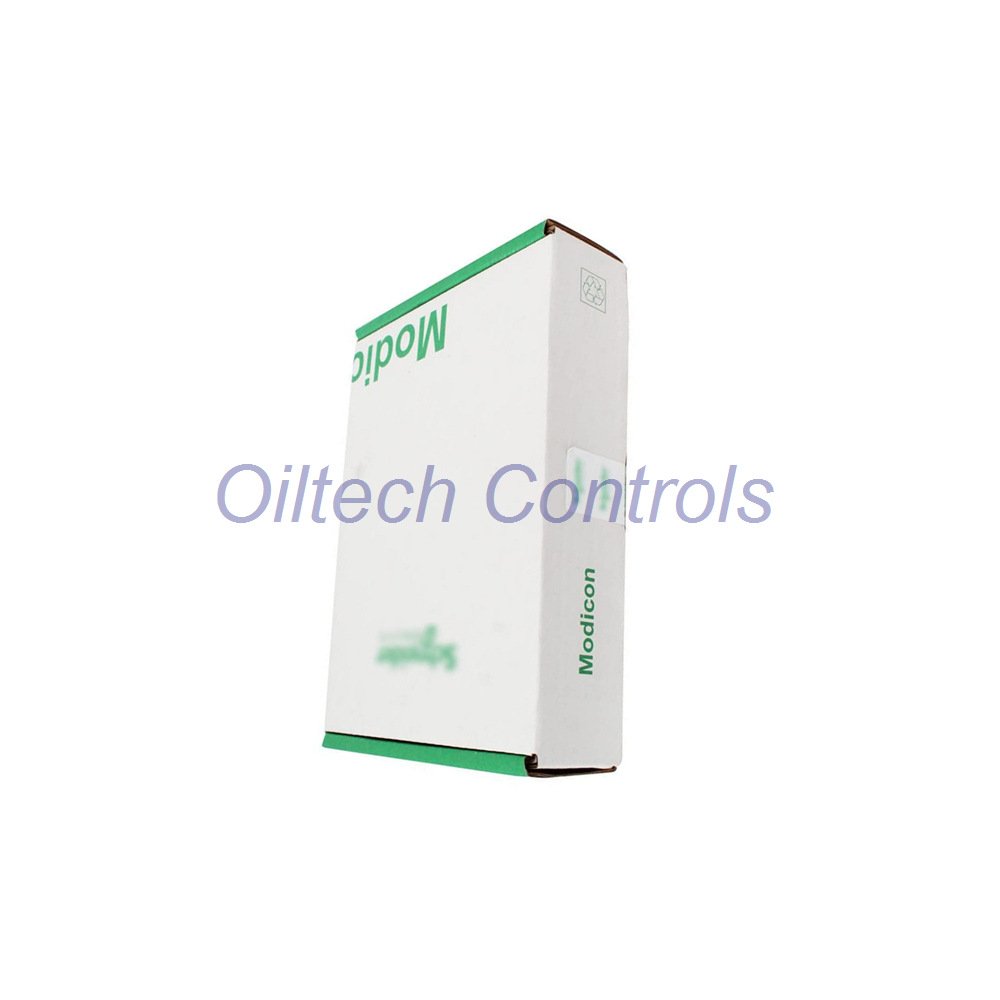

- Package List: 1 x Brand New Schneider Electric BMEP585040 Processor Module inside original factory box.
- Warranty: Includes our full 12 months warranty protection against any factory defects.
Frequently Asked Questions (FAQ)
Q: Does the BMEP585040 module include the memory card?
A: The integrated RAM provides 24 MB for programs, but you can expand data storage up to 4 GB.
Q: What configuration software does this Modicon M580 CPU require?
A: You must use EcoStruxure Control Expert software to program and configure this module.
Q: Can I hot-swap this processor module while the rack is live?
A: No, you must turn off the rack power supply before replacing the main CPU module.
