Overview
The CA202 144-202-000-106 accelerometer delivers stable vibration sensing for harsh and hazardous sites. It offers clear signals, high sensitivity, and strong durability.
Key Features
- Sensitivity reaches 100 pC/g for precise vibration readings.
- Frequency response spans 0.5–6000 Hz for wideband monitoring.
- Sensor tolerates −55°C to +260°C and cable handles −55°C to +200°C.
- Hermetic stainless-steel housing and welded hose protect the device from moisture, oil, and dust.
- Charge output uses a two-pin insulated system for clean signal transfer.
Technical Specs
- Brand: Meggitt vibro-meter®; Model: CA202; PNR: 144-202-000-106.
- Dynamic range: 0.01 to 400 g peak; overload spikes up to 500 g peak.
- Linearity stays within ±1% to 20 g and ±2% to 400 g.
- Resonant frequency exceeds 22 kHz nominal.
- Sensor capacitance: 5000 pF pin-to-pin; cable capacitance per metre defined for stable detection.
- Internal insulation resistance meets 109 Ω minimum.
- Shock limit reaches 1000 g for 1 ms half-sine pulses.
Installation
- Use four M6 × 35 screws with 15 N·m torque for secure mounting.
- Route the cable gently and avoid sharp bends to keep low-noise performance.
- Connect flying leads cleanly and follow site grounding rules carefully.
- Pair with IPC70x charge converters for best signal quality.
Packaging

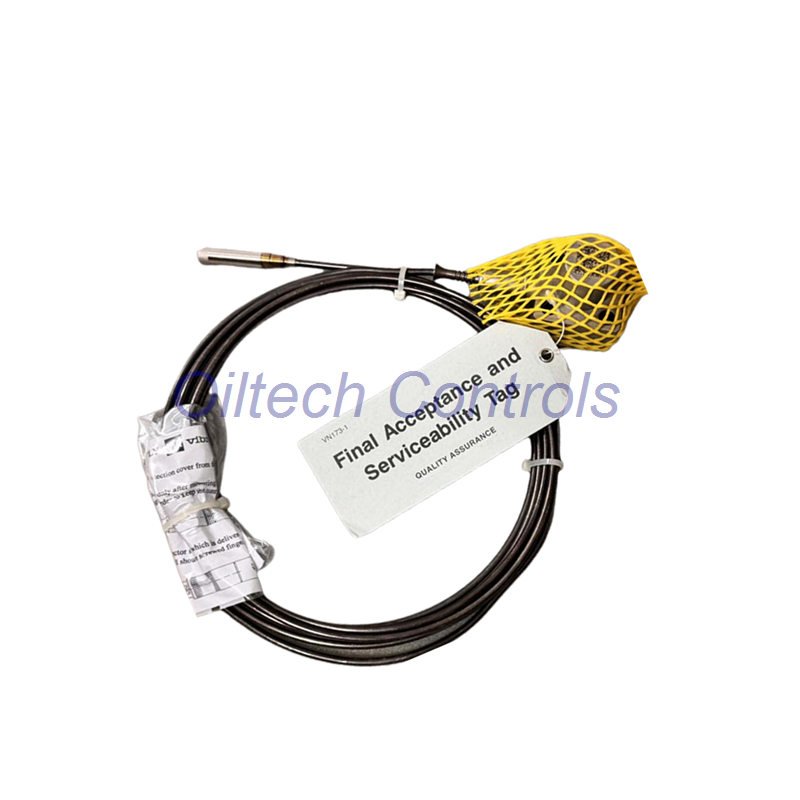

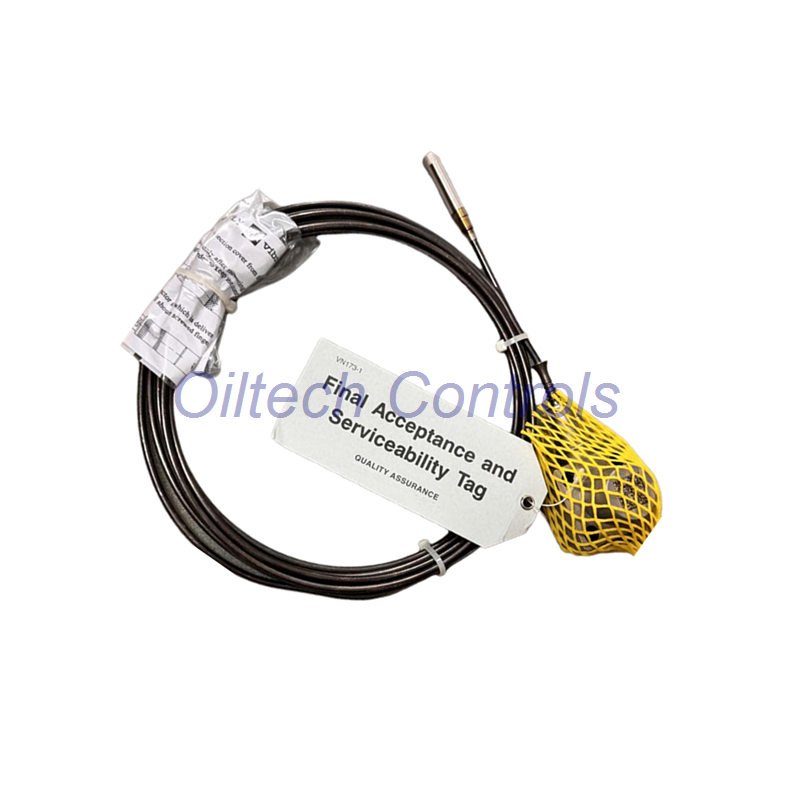

- One CA202 sensor with 3 m welded cable and protection hose.
- Four M6 screws and four M4 spring washers included.
- Basic setup guide included for quick installation.
Shipping
- Available via FedEx, UPS, and DHL worldwide.
- Tracking provided for all orders.
FAQ
- Q: Can the CA202 operate in hazardous zones?
- A: Yes. Ex versions support explosive environments.
- Q: Which signal conditioner works best?
- A: The IPC70x series offers stable conditioning.
- Q: How do I verify sensitivity?
- A: Apply a 5 g, 120 Hz reference and check output readings.
