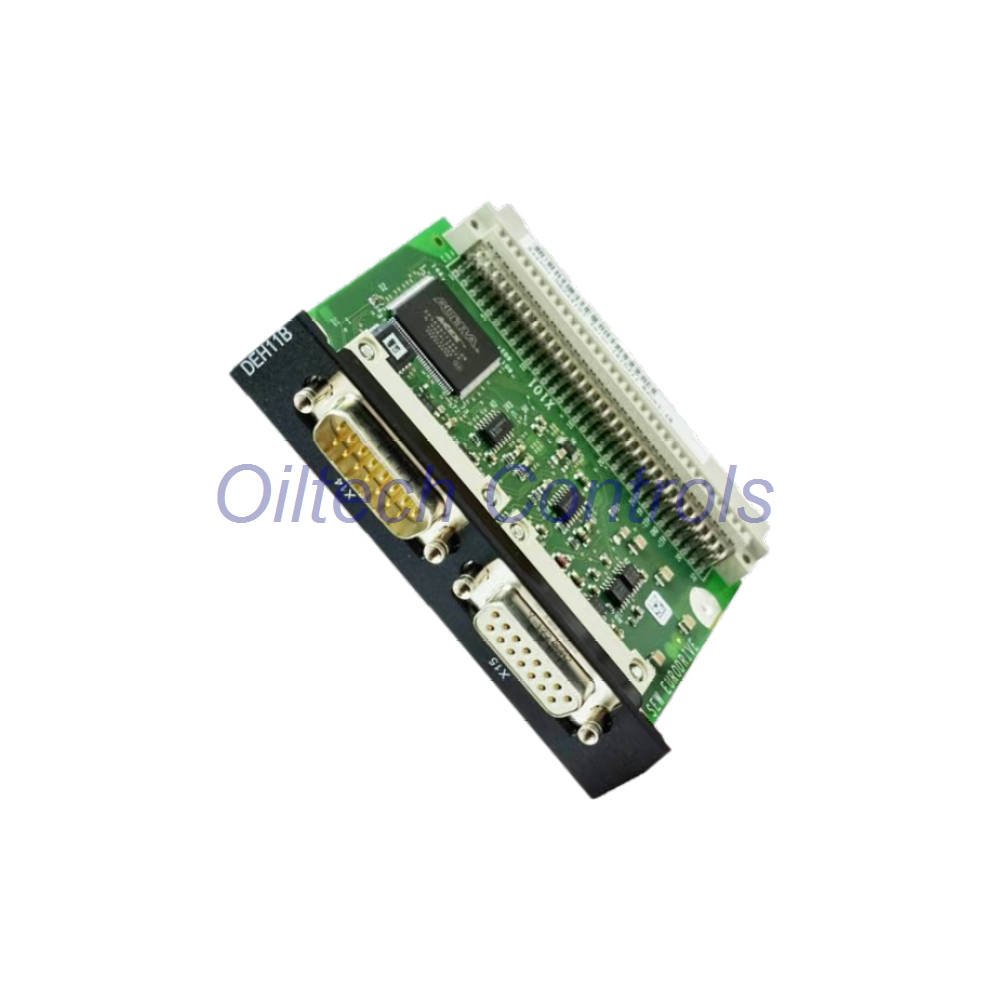

DEH11B SEW-EURODRIVE MOVIDRIVE Encoder Option Card
DEH11B is a HIPERFACE encoder option card for SEW-EURODRIVE MOVIDRIVE MDX60B/61B inverters. It provides one motor encoder input and one external encoder input. The external input can also work as an incremental encoder simulation output. This card suits precise speed and position feedback in industrial drive systems.
Core role: Encoder feedback interface. Host: MOVIDRIVE B option slot. Motor encoder port: X15. External encoder port: X14. Part number: 824 310 7.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | SEW-EURODRIVE |
| Model | DEH11B |
| Series | MOVIDRIVE Encoder Option Card |
| Module type | Plug-in encoder option card |
| Motor encoder input X15 | HIPERFACE; sin/cos AC 1 V; TTL with negated tracks; RS422 signal level |
| Permitted motor encoder resolution | 128 / 256 / 512 / 1024 / 2048 increments per revolution |
| External encoder input X14 | Max. 200 kHz; HIPERFACE; sin/cos AC 1 V; TTL with negated tracks; RS422 |
| Incremental encoder simulation output X14 | RS422 signal level; 1024 pulses per revolution |
| Encoder power supply | DC +12 V; tolerance DC 10.5–13 V; total max. DC 650 mA |
| Max. encoder cable length | 100 m |
| Supply voltage | Via host drive internal bus or X26 connector |
| Rated output power | Not applicable; no standalone power output |
| Rated output current | Not applicable; no standalone current output |
| Power consumption | Passive card; powered by host drive |
| Operating temperature | Installed inside drive; no standalone rating published |
| Storage temperature | Installed inside drive; no standalone rating published |
| Relative humidity | Installed inside drive; no standalone rating published |
| Protection rating | Installed inside drive; no standalone rating published |
| Dimensions (H × W × D) | Plug-in card; installed inside MOVIDRIVE B unit |
| Weight | Installed inside drive; no standalone rating published |
Measurement range: Encoder input frequency up to 200 kHz on X14. Resolution: Motor encoder increments 128–2048 per revolution; simulation output 1024 pulses per revolution. Frequency response: External encoder input max. 200 kHz. Linearity and sensitivity: Defined by the connected HIPERFACE, sin/cos, TTL or RS422 encoder. Temperature range: Governed by the host MOVIDRIVE B drive. Environmental tolerance: Depends on the drive enclosure. Noise immunity: RS422, TTL with negated tracks and sin/cos AC 1 V interfaces support robust industrial feedback wiring.
Installation Guide
- Install the DEH11B in a MOVIDRIVE B option slot.
- Connect the motor encoder to X15.
- Connect the external encoder to X14.
- Use X14 as incremental encoder simulation output when needed.
- Keep encoder cables within 100 m.
- Use shielded cable and correct grounding.
- Check encoder supply: DC +12 V, max. 650 mA total.
Commissioning and Maintenance
Set encoder type and resolution in the drive configuration. Verify signal quality on X15 and X14. Check the 1024-pulse simulation output if used. Confirm stable feedback at low and high speed. The card is passive and needs no standalone power. Maintenance focuses on cable condition, shield bonding and connector seating.
Compatibility
Fits SEW-EURODRIVE MOVIDRIVE MDX60B/61B drive inverters. Supports HIPERFACE, sin/cos AC 1 V, TTL with negated tracks and RS422 encoders. Part number 824 310 7. Documented in the MOVIDRIVE MDX60B/61B system manual.
Certifications
The source document does not list standalone certifications for this option card. The card is a plug-in module for the host drive. Confirm drive-level certification in the MOVIDRIVE B system manual.
Package List
- DEH11B encoder option card × 1
- Anti-static protective packaging × 1
- Shipping documentation × 1
Warranty and Shipping
All products include a 12-month warranty. We ship by FedEx, UPS and DHL. Each item is tested and verified before dispatch. Tracking is provided.
Typical Applications
- Motor speed feedback in MOVIDRIVE B drive systems
- Position control with HIPERFACE encoders
- External encoder feedback for line or master-slave control
- Incremental encoder simulation for downstream controllers
- Retrofit and repair of existing SEW drive cabinets
Diagnostic Capability
The card supports encoder signal verification at X15 and X14. It allows checking of sin/cos, TTL, RS422 and HIPERFACE feedback. The simulation output helps confirm downstream wiring. Use drive diagnostics and parameter checks for fault tracing.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support with FedEx, UPS and DHL
- Tested industrial surplus and refurbished options
- 12-month warranty on all products
- Technical verification before shipment
- Support for obsolete control systems
Questions? Email info@oiltechcontrols.com or call +86 158 8020 0923.
FAQ
Q: What is DEH11B?
A: It is a SEW-EURODRIVE encoder option card for MOVIDRIVE MDX60B/61B drives.
Q: How many encoder inputs does it have?
A: Two. One motor encoder input X15 and one external encoder input X14.
Q: Can X14 output encoder simulation?
A: Yes. X14 can output RS422 incremental signals with 1024 pulses per revolution.
Q: What encoder types are supported?
A: HIPERFACE, sin/cos AC 1 V, TTL with negated tracks and RS422.
Q: What is the maximum encoder cable length?
A: 100 m.
Q: What encoder supply does it provide?
A: DC +12 V, max. 650 mA total.
Q: Does it have a standalone power rating?
A: No. It is a passive card powered by the host drive.
Q: What warranty do you offer?
A: 12 months.
Q: How do you ship?
A: FedEx, UPS and DHL.
