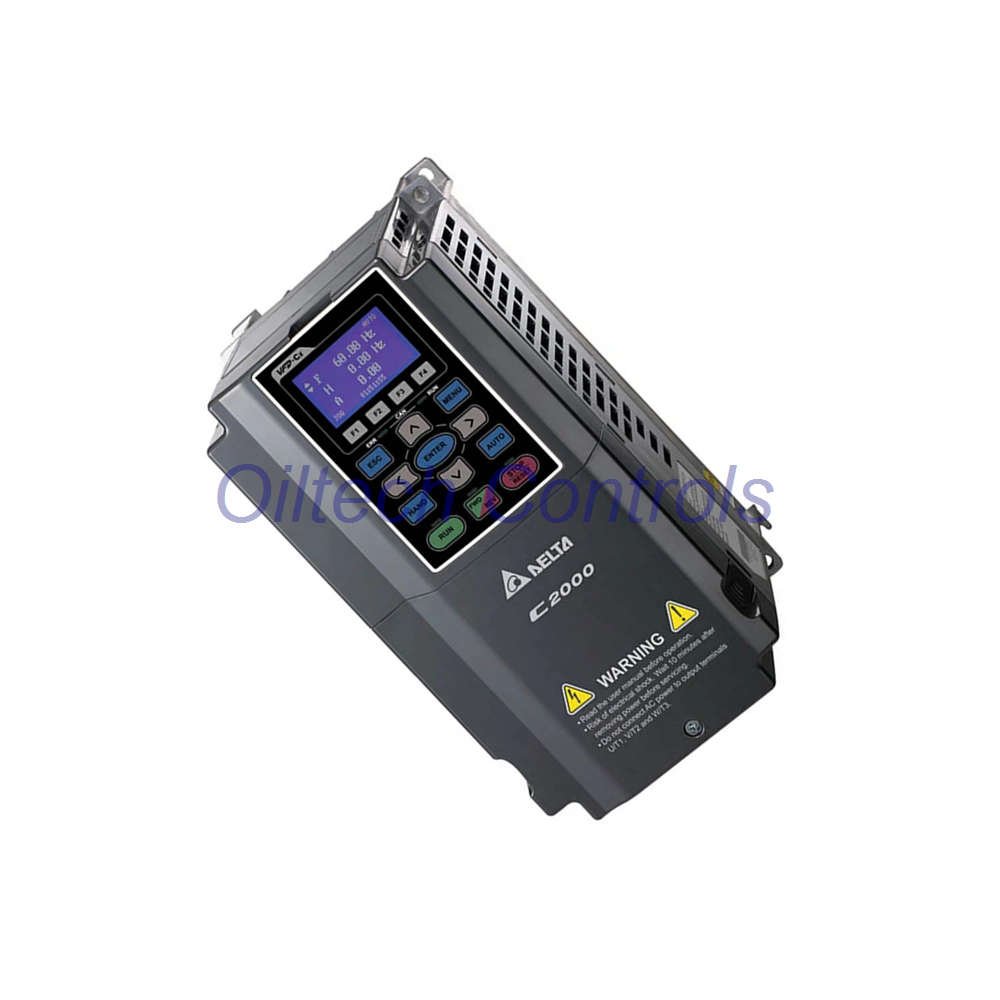

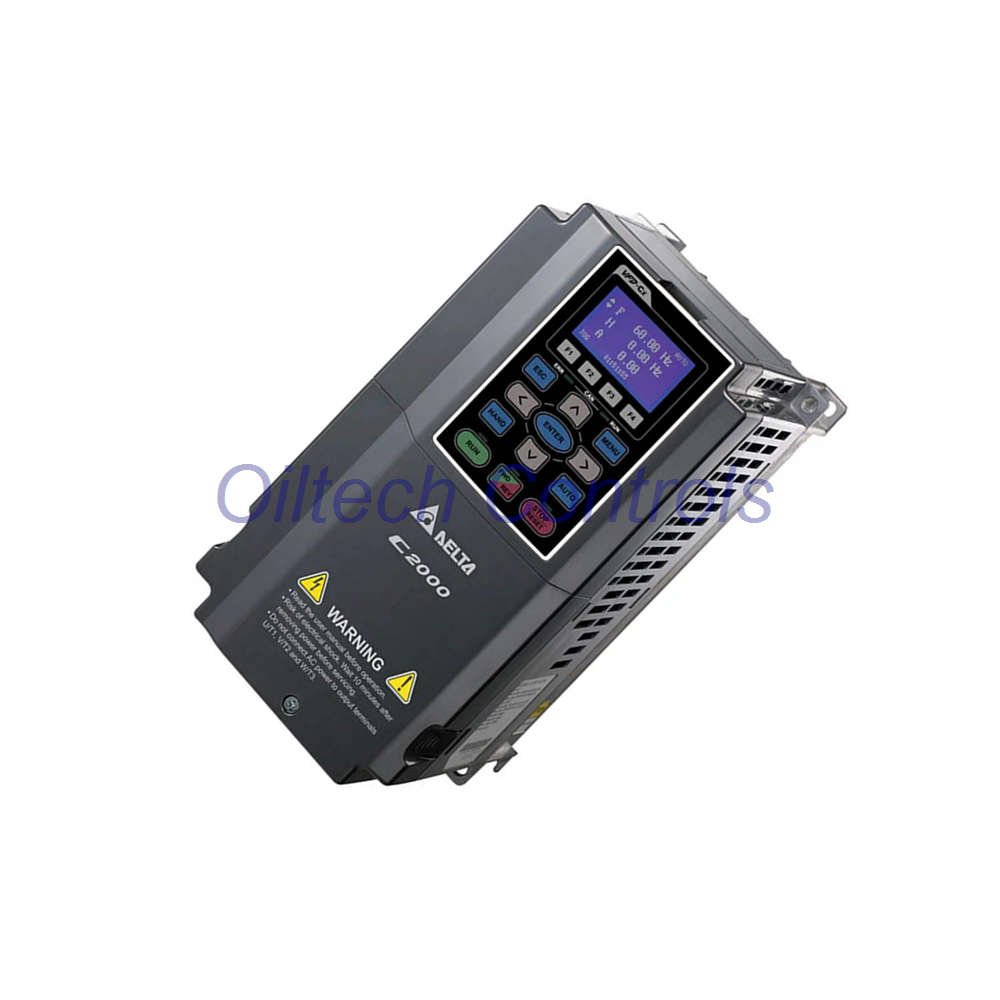

Delta VFD037C53A-21 C2000 Drive VFD037C53A-21 575V

Technical Data & Rating Matrix

• Brand & Model: Delta Electronics VFD037C53A-21
• Series Platform: C2000 Plus Series Heavy-Duty Drive
• Input Voltage & Phase: 575V AC, 3-Phase (50/60Hz)
• Power Output: 5 HP / 3.7 kW Output Capacity
• Light Duty (LD) Rating: 6.7A output current (120% overload for 60s every 5 mins)
• Normal Duty (ND) Rating: 5.5A output current (120% for 60s, 160% for 3s)
• Heavy Duty (HD) Rating: 4.6A output current (150% for 60s, 180% for 3s)
• Frame Size & Enclosure: Frame Size A, IP20 rated chassis
• Frequency Control Range: 0.00 Hz to 599.00 Hz high-speed control
• Internal Components: Built-in dynamic braking chopper included; EMC filter and DC reactor NOT built-in
• Physical Dimensions & Weight: 5.12 in x 9.84 in x 6.69 in (130 x 250 x 170 mm), 6.6 lbs (3.0 kg)

Core System Features & Architecture

• High-Performance FOC Vector Engine: Executes field-oriented control across induction motors (IM) and permanent magnet motors (SPM/IPM).
• Integrated Machine Safety: Features hardware Safe Torque Off (STO) to immediately eliminate motor shaft torque without dropping main line power.
• Embedded Logic Processing: Contains an internal PLC function to execute custom machine control routines without external controllers.
• Advanced Motion Positioning: Supports onboard multi-point, single-point, and origin-homing position control commands.
• Power Interruption Resilience: Employs Deceleration Energy Backup (DEB) to safely ramp down motor speed during unexpected main supply voltage dips.
• Modular Hardware Layout: Features a hot-pluggable LCD keypad, removable cooling fan, and expansion slots for encoder (PG) and fieldbus cards.
• Industrial Environment Protection: Operates continuously up to 50°C ambient temperatures with conformal coated PCBs per international safety standards (CE, UL, cUL).

Target Machinery & Application Compatibility

• CNC Machine Tool Spindles: Drives high-speed cutting shafts demanding high dynamic response and tight speed regulation up to 599Hz.
• Metal Stamping & Heavy Presses: Absorbs sudden load impacts using field-oriented torque response and heavy-duty overload margins.
• Automated Material Handling: Provides smooth starting torque and precise position stopping for multi-axis gantry overhead cranes and conveyors.
• Extruders & Mixers: Delivers constant continuous low-speed torque for high-viscosity synthetic material processing.
• High-Pressure Industrial Pumps & Fans: Utilizes auto energy-saving algorithms to throttle motor consumption based on system head demand.

Oiltech Controls Technical Insight

• Voltage Isolation Warning: Note that the VFD037C53A-21 is configured specifically for 575V utility feeds and lacks a built-in internal EMC filter or DC reactor.
• Noise & Harmonic Mitigation: Engineering teams installing this drive in noise-sensitive plant environments should specify an external line reactor and external EMC line filter.
• Thermal Considerations: Frame Size A thermal load drops significantly when operating at maximum heavy-duty carrier frequencies; ensure panel clearance maintains proper vertical airflow.
• Application Support: For sizing verification or replacement assistance, contact our technical team at info@oiltechcontrols.com or via WhatsApp at +86 158 8020 0923.

Order Processing, Shipping & Warranty Terms

• Dispatch Lead Time: Orders are processed and dispatched within 24-28 hours from inventory confirmation.
• Express Global Courier Services: Fast worldwide delivery via priority FedEx, UPS, and DHL networks with full tracking.
• Factory Warranty Coverage: Every order includes a full 12-Month Quality Guarantee against manufacturing defects.
• Pre-Shipment Inspection: Drives undergo visual chassis and electrical terminal checks prior to protective export packaging.

Frequently Asked Questions & Selection Guide

• Q: Does the Delta VFD037C53A-21 require an external braking chopper for stopping heavy inertia loads?
  A: No, this unit features a built-in braking chopper. You only need to wire an appropriately sized external dynamic braking resistor across the drive terminals.
• Q: How do I select between Light Duty, Normal Duty, and Heavy Duty ratings for my motor?
  A: Match Light Duty (6.7A) to variable torque loads like centrifugal fans; select Heavy Duty (4.6A) for high-starting torque loads like extruders, punch presses, or hard-starting conveyors.
• Q: Can I run a standard 460V motor using this 575V C2000 drive model?
  A: No, operating a 460V motor directly from a 575V bus risks winding insulation breakdown unless output voltage parameter limits and line reactors are applied; always match supply rating.
• Q: Why is my C2000 drive tripping during rapid deceleration cycles?
  A: Regenerative energy from motor inertia is overcharging the DC bus. Verify your external brake resistor connections or enable Deceleration Energy Backup (DEB).
• Q: What expansion options exist for communicating over Ethernet/IP or Modbus TCP?
  A: The C2000 architecture utilizes fieldbus options cards; install a Delta network option card into the dedicated communication slot on the control board.
