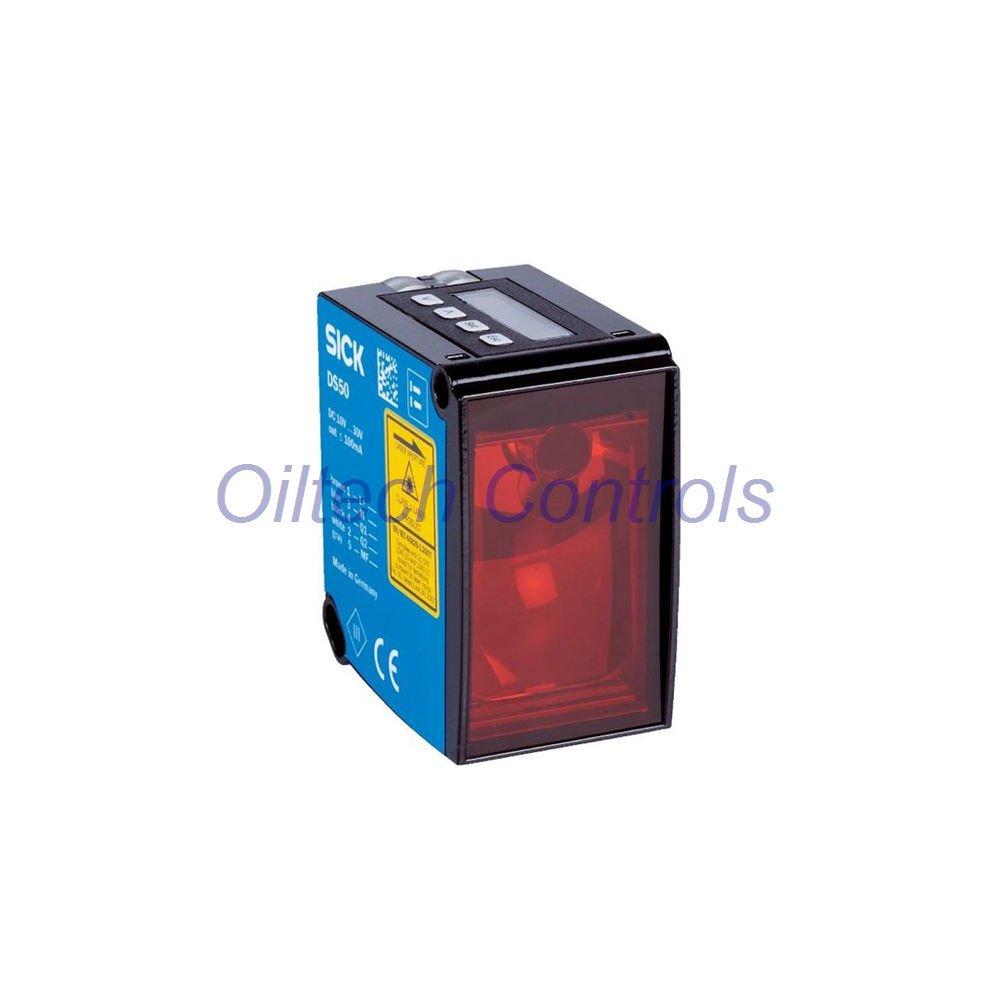

DT50-N1114 SICK Dx50 Heated Laser Distance Sensor
DT50-N1114 is a SICK Dx50 series heated laser distance sensor. It uses HDDM optical time-of-flight technology. This sensor measures natural objects up to 10 m without a reflector. The built-in heater allows operation down to -40 °C. It is ideal for cold storage, deep-freeze, and heavy-duty industrial automation.
Technical Specifications
| Brand | SICK |
| Model | DT50-N1114 |
| Series | Dx50 DT50 Heated |
| Part Number | 1047582 |
| Module Type | Optical Time-of-Flight Laser Distance Sensor |
| Measurement Range | 200 mm to 10,000 mm (90% remission) 200 mm to 6,500 mm (18%) 200 mm to 4,000 mm (6%) |
| Light Source | Visible red laser diode, 658 nm, Class 2 |
| Laser Class | Class 2 (IEC 60825-1:2014, EN 60825-1:2014) |
| Response Time | Fast: 20 ms / Slow: 30 ms |
| Repeatability | ≥ 2.5 mm |
| Accuracy | Typ. ± 10 mm |
| Frequency Response | Up to 50 Hz (fast mode) |
| Sensitivity | High sensitivity for dark and low-remission targets |
| Linearity | Typ. ± 10 mm |
| Resolution | 16-bit analog output |
| Temperature Range | Operation: -40 °C to +65 °C (with heater) With 2 cooling plates: -40 °C to +80 °C With 2 cooling plates and filter: -40 °C to +140 °C Storage: -40 °C to +75 °C |
| Environmental Resistance | IP65 (EN 60529) |
| Anti-Interference | Stable under ambient light, HDDM technology |
| Output Interface | 1x NPN digital (≤ 100 mA) 1x voltage analog (0 V to 10 V, ≥ 5 kΩ) 1x multifunctional input (MF) |
| Supply Voltage | DC 24 V (18 V to 30 V) VS > 15 V for internal heater Reverse-polarity protected |
| Power Consumption | ≤ 28 W (heater active) |
| Electrical Connection | Male connector M12, 8-pin |
| Housing Material | Zinc die-cast ZNAL4CU1 |
| Optical Window | Acrylic glass PMMA |
| Dimensions | 36.1 mm x 62.7 mm x 57.7 mm |
| Weight | Approx. 200 g |
Installation Guide
- Mount the sensor on a stable bracket. Keep the optical window clean.
- Use the M12 8-pin connector for wiring. Check pin assignment before power on.
- For cold storage, ensure VS > 15 V to activate the internal heater.
- For high-temperature areas, add cooling plates and a protection filter.
- Align the laser beam to the target. Avoid strong direct sunlight.
Debugging and Maintenance
- Use the LC display and menu buttons for quick setup.
- Set response time to fast (20 ms) or slow (30 ms) as needed.
- Clean the PMMA window with a soft cloth and mild cleaner.
- Check the heater function in cold environments regularly.
- Verify analog output 0 V to 10 V scaling during commissioning.
Compatibility Notes
- Works with standard 24 V DC industrial power supplies.
- NPN digital output fits common PLC and controller inputs.
- Analog 0 V to 10 V output connects to most data loggers.
- Multifunctional input (MF) supports external trigger or teach-in.
- Replaces many obsolete SICK Dx50 heated models.
Certifications
- IEC 60825-1:2014 Laser Class 2
- EN 60825-1:2014 Laser Class 2
- EN 60529 IP65 enclosure rating
Package List
- 1x SICK DT50-N1114 sensor
- 1x quick start guide
- 1x declaration of conformity
- Protective packaging
Warranty and Shipping
All products include a 12-month warranty. We ship by FedEx, UPS, and DHL. Tracking is provided after dispatch.
Typical Applications
- Cold storage and deep-freeze warehouse positioning
- Heavy-duty industrial automation
- Distance measurement on natural objects without reflector
- Obsolete control system replacement
- Outdoor or high-temperature industrial zones with cooling plates
Diagnostic Capabilities
- LC display shows live distance and status
- Menu buttons allow quick parameter check
- Analog output helps verify signal quality
- Heater status can be checked via supply voltage
- Stable readings confirm HDDM optical health
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support
- Tested industrial surplus and refurbished options
- 12-month warranty on all products
- Technical verification before shipment
- Support for obsolete control systems
FAQ
Q: Does this sensor need a reflector?
A: No. It measures natural objects directly up to 10 m.
Q: Can it work in deep-freeze areas?
A: Yes. The internal heater supports operation down to -40 °C.
Q: What is the laser class?
A: It is Class 2 per IEC 60825-1:2014.
Q: What output types are available?
A: One NPN digital output and one 0 V to 10 V analog output.
Q: How do I contact you?
A: Email info@oiltechcontrols.com or WhatsApp +86 158 8020 0923.
Contact Information
Inquiries: info@oiltechcontrols.com
WhatsApp: +86 158 8020 0923
