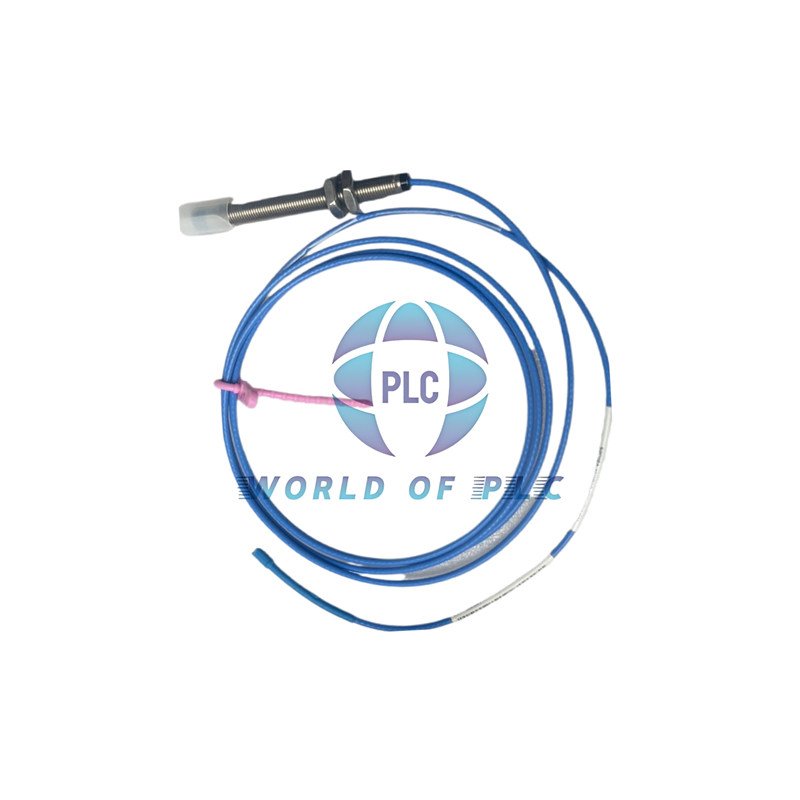

Emerson EZ1080-16-11-010 8mm Eddy Current Sensor — Vibration Probe

Overview

Emerson presents the high-performance eddy current sensor EZ1080-16-11-010.
This sensor suits steam, gas, hydro turbines, compressors, and rotating machinery monitoring.

Pyramid Framework — Key to Detailed Structure

• Top level (Most important):
  • Brand: Emerson
  • Model: EZ1080-16-11-010 (8mm eddy current sensor)
  • Category: Eddy Current Displacement Sensor for turbomachinery
• Middle level (Core specs and performance):
  • Measurement range, sensitivity, linearity, and environmental tolerance details.
• Base level (Support info):
  • Installation steps, packaging list, shipping, and FAQ for buyer confidence.

Product Overview

• Emerson manufactures the robust eddy current sensor EZ1080 series for industrial use.
• Model EZ1080-16-11-010 provides non-contact displacement, eccentricity and speed measurement.
• This probe features an 8mm sensing head and a 1.0 meter cable for flexible installations.

Technical Specifications

• Linear measurement range: 2 mm (80 mils) of reliable dynamic displacement measurement.
• Initial air gap: 0.5 mm (20 mils) recommended for optimal sensor performance.
• Incremental Scale Factor (ISF): API 7.87 V/mm ±5% or ISO 8 V/mm ±5% at 0–45°C.
• Deviation from best fit straight line (DSL): ±0.025 mm within 0–45°C operating condition.
• Measuring target minimum size: 14 mm minimum; 20 mm recommended to reduce failure risk under 1%.
• Minimum and recommended shaft diameter: 20 mm minimum, 25 mm recommended for stable readings.
• Target material: Ferromagnetic steels such as 42CrMo4, AISI 4140, P235S and equivalents.
• Protection class: IP67 standard, IP68 available when DOC-TEST is ordered.
• Operating temperature: Sensor with 1m cable works from -35°C to +180°C continuously.
• Cable and connector rating: -35°C to +150°C for cable and connector components.
• Pressure sealing: Differential sealing to 10000 hPa (145 psi) at up to 120°C.
• Sensor materials: GF30 PEEK tip, stainless steel case, FEP cable, nickel-plated brass connector.
• Weight: Approx. 100 grams including 1m cable for compact installation.
• Hazardous area approvals and SIL capability: Intrinsic safety and increased safety approvals; SIL 2 capable per IEC 61508.
• Brand & Model included: Manufacturer Emerson; Series EZ1080; Model EZ1080-16-11-010.

Model Suffix Tree (Clear, Nested Structure)

• EZ1080-16-11-010
  • EZ1080 — 8mm Eddy Current Sensor family
  • -16- — Case length 160 mm sleeve
  • -11- — Unthreaded length 110 mm
  • -010 — Cable length 1.0 m
  • Case thread — M10x1; Armored cable option: No

Installation Guide (Quick Steps)

• Mount sensor ensuring a stable bracket with controlled axial alignment and minimal vibration transfer.
• Set initial air gap to 0.5 mm and lock the sensor position for consistent measurements.
• Use recommended target materials and diameters to maintain calibration and measurement accuracy.
• Route the FEP cable away from high electromagnetic interference sources and secure with clamps.
• Verify converter documentation for area classification and compatible signal converters before commissioning.

Packing List

• One sensor unit: EZ1080-16-11-010 with 1.0 m cable, sealed in protective foam.
• Installation manual and quick-start instructions in English for immediate setup reference.
• Mounting hardware pack including protective cap and O-ring where applicable for tip sealing.
• Optional DOC-TEST certificate available upon separate order for pressure seal verification.
• Shipping options: FedEx, UPS, DHL available for international delivery requests.

Shipping & Handling

• We ship worldwide using FedEx, UPS, or DHL with tracking and insurance options available.
• Standard packing uses anti-static foam and rigid boxes for safe transit across long distances.
• Signature confirmation and expedited handling remain available upon request for urgent orders.

FAQ

• Q: What measurement range does the sensor provide?
  A: The sensor provides a 2 mm linear measurement range for dynamic shaft displacement.
• Q: What ambient temperature can the sensor endure?
  A: The sensor with 1m cable withstands -35°C to +180°C in demanding industrial environments.
• Q: Does this model include armor on the cable?
  A: This specific model shows no armored cable and uses FEP insulated cable.
• Q: Can I order a DOC-TEST certificate for pressure sealing?
  A: Yes, order the DOC-TEST test certificate separately for pressure seal validation.
