Overview

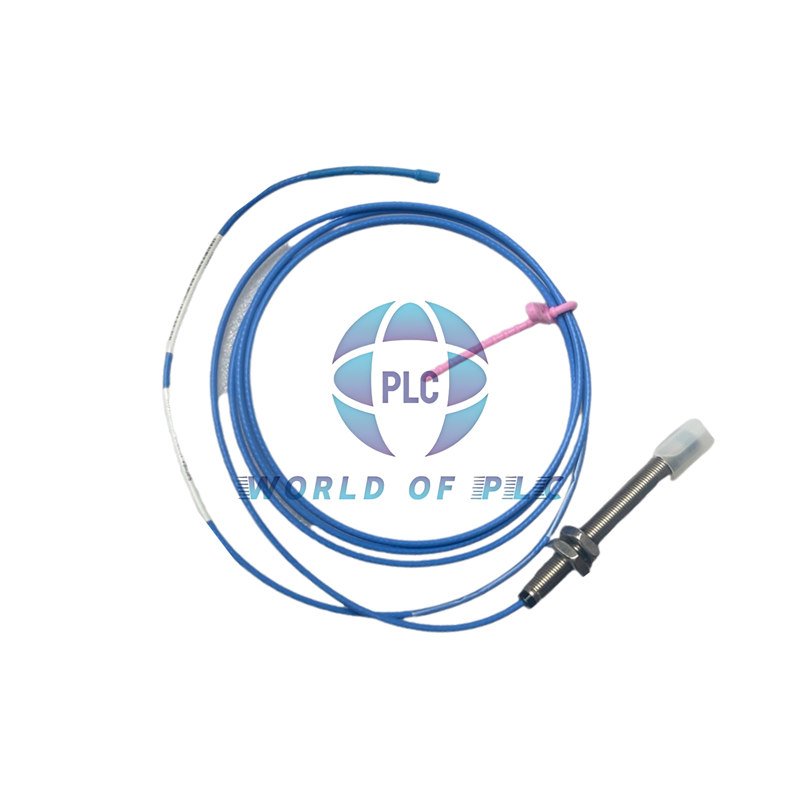

Emerson’s EZ1080-12-00-010 8mm Eddy Current Sensor provides precise shaft displacement and speed measurements for high-performance turbomachinery. It ensures accuracy, stability, and reliability under harsh industrial conditions.
Key Technical Highlights
- Manufacturer: Emerson
- Model: EZ1080-12-00-010
- Linear Measurement Range: 2 mm (80 mils)
- Initial Air Gap: 0.5 mm (20 mils)
- Scale Factor: API 7.87 V/mm ±5% or ISO 8 V/mm ±5%
- Linearity (DSL): ±0.025 mm across 0–45°C
- Target Diameter: Minimum 20 mm, Recommended 25 mm
- Target Material: Ferromagnetic steel (AISI 4140, 1035, 4340, etc.)
- Operating Temperature: -35°C to +180°C
- Protection Class: IP67 (standard), IP68 with DOCTEST option
- Construction: PEEK tip, stainless steel case, FEP cable, nickel-plated brass connector
- Weight: Approximately 100 g (sensor with 1m cable)
- Certifications: ATEX, IECEx, UL, CSA, CCC, KTL, CML Japan
- Safety: SIL 2 capable, compliant with IEC 61508:2010
Ordering & Suffix Structure
- Model: EZ1080-12-00-010
- Series: EZ1080
- Case Threads: M10x1
- Armored Cable: No
- Case Length (-12): 120 mm
- Unthreaded Length (00): 0 mm
- Cable Length (010): 1.0 m
Installation Guide
- Mount the sensor perpendicular to the shaft surface.
- Maintain the specified air gap for accurate measurements.
- Ensure the target surface is ferromagnetic and clean.
- Route cables away from strong electrical interference sources.
- Do not overtighten the M10x1 threads to avoid tip damage.
- Confirm converter compatibility before installation.
Packaging List & Shipping
- 1 × EZ1080-12-00-010 Sensor (1m cable)
- 1 × Installation leaflet
- 1 × Product label with serial number
- Shipping via FedEx, UPS, or DHL with tracking
Compliance & Certifications
- Intrinsic Safety Approvals: ATEX, IECEx, CSA, CCC-Ex, CCOE PESO, KTL, CML Japan
- Temperature Classes: T6 (-35°C to 55°C), T4 (-35°C to 130°C), T2 (-35°C to 200°C)
- Optional DOCTEST verifies pressure-seal integrity when required.
FAQ
- Q: What is the minimum target diameter?
A: Use a target of at least 20 mm for optimal accuracy. - Q: Can the sensor handle high temperatures?
A: Yes, it operates reliably up to 180°C with proper installation. - Q: Does it have global intrinsic safety approvals?
A: Yes, the sensor includes ATEX, IECEx, UL, CSA, and other international certifications.
Quick Summary
- Model: EZ1080-12-00-010
- Type: 8mm Eddy Current Sensor
- Range: 2 mm, Air Gap: 0.5 mm
- Operating Temperature: -35°C to +180°C
- Ingress Protection: IP67 / IP68
- Certifications: ATEX, IECEx, UL, CSA
